Part 1: Introduction and Conventions
Temporary comment: Some of this material is still in work, and it may remain in work for some time. However, at least the text for the vast majority of the camera and lens reviews is relatively complete. Work still remaining includes adding numerous pictures of the cameras and lenses, plus more test and sample photos that are taken with various lenses. In addition, photos of a relatively compact Fujifilm X camera system (including a case that has been customized to hold a Fuji X camera with eight lenses) are also in work, but most of the related text is complete. The additional images may not be added for several months due to various real world responsibilities that must be emphasized, but the current text covers almost all of the relevant details. It is envisioned that another review web page that covers my former extensive Micro 4/3 system may be added at some point after the present Fuji X review page is completed. End of temporary comment.
This review material covers a limited number of Fujifilm X series APS format digital cameras that I've had significant exposure to in recent years, plus a fairly good selection of both Fujinon and third party lenses. The cameras reviewed include the X-E1, the X-T10, and the X-T20. Several Fujinon X-Mount lenses ranging from 8mm to 400mm, plus host of other lenses, accessories, and adapters are also reviewed. It is not even close to being an exhaustive review of the entire Fuji X camera and lens system, but it does cover a good range of both old and relatively new lenses. While only three Fujifilm cameras (up through the X-T20) are reviewed, more than a dozen Fujifilm X Mount lenses are tested and reviewed. This may provide enough information for many to evaluate certain aspects of the Fujifilm X system. I hope to acquire an X-T4 or X-T5 camera in the future, partly to get 1080p 240 FPS capability for slow motion HD video, and partly for weather resistance.
This material is written from a user perspective, where the camera and lenses are used to take both everyday pictures and astronomical photos. Test results are included, but the emphasis is on the experience of using the cameras and compatible lenses, and the real world results that can be obtained with them. Lens tests emphasize the maximum f/ratio at which a given lens will provide sharp images and reasonable illumination of the APS format. Part of this review material also covers several lenses that were not originally made for the Fujifilm X system, but which can be used on Fuji X cameras via adapters under certain conditions. I am not a professional reviewer, so I don't receive loaner samples to review. Therefore, what I review is limited to cameras and lenses that I buy or otherwise have repeated exposure to.
We will start with tradeoffs that reveal the advantages and shortcomings of various camera and lens systems. The related comparisons are what ultimately led to my getting into the Fujifilm X system in late 2017, in favor of the Micro 4/3 (MFT) system that I was, up to that point, heavily invested in. The previous Micro 4/3 system included several cameras and lenses that were all used together in order to capture rare events (such as total solar eclipses) in a semi-automated fashion. Micro 4/3 has matured since then, but not to an extent that would make me want to go back to using MFT as my main camera system. (The main reason I don't want to go back to MFT is image noise and noise reduction artifacts, but other reasons include the lack of camera shutter speed dials and lens aperture rings, plus manual focus quirks.) I still occasionally use MFT for video, partly because transitions in brightness are smoother, being relatively free of the 1/3 stop jumps in video exposure that most Fuji cameras tend to have.
Another plus for Fujifilm X cameras is they do not seem to be plagued by the effects of strong Anti-Alias filters such as those in Micro 4/3 cameras. In 2012, I wrote a paper (posted as a web page) titled "Influence of Marginal Ray Angle to Anti Alias Filter on Digital Image Quality." The paper described some pitfalls of anti alias (AA) filters (and thick sensor filter stacks in general) when using wide angle rangefinder lenses on certain digital cameras.
Fujifilm X camera sensor filter stacks are presumably about 2mm thick, or roughly half as thick as MFT camera filter stacks. The 2mm filter stack does cause some radial smearing around highlights near the edge of an image when certain fast f/ratio wide angle rangefinder lenses are used. However, the smearing with Fuji X cameras usually is not as severe as it is with Micro 4/3. In situations where it is essential to reduce this blur in a compact digital camera system, a Leica M full frame camera with associated lenses is one of the best solutions, though it is quite expensive.
Ultimately, it was possible to acquire a range of Fujifilm X-mount lenses that were equivalent to the focal lengths and maximum f-stops of most of my former Leica M system, and the Leica system has not been used as much since that time. The Leica M system once included a fairly wide range of lenses (various brands), including: 10mm, 12mm, 21mm, 28mm, 35mm, 50mm, 75mm, 90mm, and 135mm. The system also used a fisheye lens, plus 180mm, 250mm, and 400mm lenses that were adapted via adapters that I customized to set the rangefinder to infinity, for reasonably accurate framing of landscape and wildlife photos.
Some of the newer Fujifilm lenses that nearly completed the Fuji X system included the 8mm f/3.5 and 33mm f/1.4 Fujinon lenses, plus the Sigma 10-18mm f/2.8 lens. The Fujinon lenses are roughly equivalent to the fields of view of the 12mm f/5.6 Voigtlander and 50mm f/1.4 Summilux-M lenses for a full frame Leica M system. The Sigma 10-18mm lens covers about the same fields of view as the 21mm and 28mm M lenses, plus it zooms out to a 15mm equivalent focal length. I hope to add the 90mm f/2 Fujinon lens at some point, mostly for astrophotography. (I would opt for the 75mm f/1.2 Viltrox if it focused as close as the 90mm, but it doesn't.) The Fujifilm XF and other lenses that are currently used with the Fuji X system, including those that have been tested, are covered in Chapters 8, 11, and 12.
2. Format / Image Sensor (Size and Type) and Camera Trade Space
The size of a camera image sensor influences many aspects of photography in fundamental ways. The sensor size (i.e. format) impacts everything from the physical size of the camera and lenses, to depth of field versus f-stop, to dynamic range, to image noise versus ISO setting, to name only a few.
The brand of a camera or system of a given format will also impact physical size, resolution, high ISO performance, noise levels vs noise reduction artifacts, and available lens focal lengths. The format size formerly had a significant influence cost, but the price difference between various format interchangeable lens cameras (up to 36x24mm full frame) has diminished over time.
Crop Factor
Image sensors smaller than the 36x24mm full frame format (such as APS and Micro 4/3 sensors) are often called "crop sensors" because they cover an area smaller than the 36x24mm "full frame" format. Because of the sensor size difference, it is not unusual to use terms such as "crop factor" when describing the degree of difference between the size of a full frame sensor and a smaller sensor.
For example, most APS format image sensors have a width that is just under 2/3 that of full frame sensor. The usual way of expressing this size difference is to say that the APS sensor has a crop factor of 1.5, which is the reciprocal of 2/3. Thus, multiplying the roughly 23.4mm width of a Fuji X APS sensor by 1.5 gives us 35.1mm, which is close to the 36mm width of a full frame sensor. The precise crop factor is more like 1.54.
When the focal length of a lens used on a crop sensor camera is multiplied by the crop factor, it indicates that the equivalent focal length of a lens that would cover the same field of view on a "full frame" camera sensor. For example, if a 50mm lens is used on a crop sensor APS format camera, the field of view is about the same as that of a 75mm lens on a full frame camera (50 * 1.5).
Likewise, it we want to know the lens focal length lens to use on a crop sensor camera to get the same field of view as a given lens on a full frame camera, the focal length of the full frame camera lens is simply divided by the crop factor of 1.5. For example, to get the same field of view as a 50mm lens on a full frame camera when using an APS format camera, we simply divide 50mm by 1.5, to get 33.3mm. If the more precise crop factor of 1.54 is used, we would get about 32.5mm.
Camera System Size and Weight
In general, a camera system that is based on a larger image sensor (say, a 36x24mm full frame sensor) will tend to be larger and heavier than a system based on a crop sensor (APS, M4/3, etc.), all other things being equal. But there is often a tradeoff. The larger sensor will usually offer the advantages of higher dynamic range, lower image noise, and better performance at high ISO settings. A camera system based on a smaller sensor will usually be smaller and lighter, but at the expense of less dynamic range, increased image noise, and less favorable high ISO performance. The pixel size has a lot to do with high ISO performance and the ability to capture more dynamic range, with larger pixels generally being better. This is discussed in the pixel size section (Part 2.3) below.
Depth of Field (DOF)
Another area where image sensor size is important is the ease with which shallow depth of field (DOF) can be obtained for portraits and other types of photography. Shallow depth of field is an important element in producing images with what some call "3D pop", where the main subject is imaged very sharply and the background is blurred significantly, while the transition from sharply focused to de-focused areas is smooth and gradual. Where this type of image is important, a larger image sensor format is usually the best way to go.
Some of my earlier material (linked below) covers tradeoffs for depth of field (DOF) versus format size and f/ratio to a relatively extensive degree. It emphasizes using Leica M mount lenses on a full frame format digital cameras, but also includes other lenses plus APS and Micro 4/3 format examples for comparison. The linked material uses crops from a 3/4 length portrait taken with a 4" x 5" film camera as one basis for comparison.
Conclusions in the shallow DOF test and tradeoff material linked immediately below include a table that shows the maximum aperture that, in tests, provided good resolution and contrast at a given distance from the center of the picture (referred to as "image height" in optical jargon) with each tested lens and camera. The results show that it is easiest to get the best results with full frame and medium format cameras, but that it is at least possible to get "good" results with smaller formats - with appropriate pairings of cameras and fast f/ratio lenses.
Link to: Leica M9 (and Leica M Lens) Reviews, Tests and Comparisons [1],
Appendix K: Leica Optics and Images Compared to 4x5" Film, etc., Images:
http://www.versacorp.com/vlink/jcreview/leicam9r.htm#appk
For photos with shallow depth of field, the 33mm f/1.4 Fujinon lens is a game changer for the Fuji X system. When critical sharpness and minimal vignettng are required out to at least half way to the corner of the format, the 33mm Fujinon lens can be used at a wider physical aperture than even the Leica 50mm Summilux, owing to the mid field resolution dip of the Summilux. Specifically, the Fujinon 33mm provides excellent resolution at apertures as wide as f/1.8 (18.3mm physical aperture size), while the Summilux has to be used at f/4.4 (51mm actual FL/4.4 = 11.7mm aperture) for critical sharpness in the mid field area. However, the Fujinon 33mm lens has to be stopped down more than the Summilux to minimize vignetting.
I would like to see a both systems have a fast lens equivalent to about 65mm on full frame (42 to 43mm for the Fujifilm X system), since this works well for half to 3/4 length portraits and certain types of landscapes. But thus far, no fast autofocus prime lens is available for Fuji X in this focal length range. In the absence of such a lens, I use a Leica M mount manual focus Voigtlander 40mm Nokton lens with the Fujifilm X system.
2.1. Limiting the Trade Space to Comparable Cameras
Commonly available image sensor sizes (formats) range all the way from tiny 1/2.5 inch sensors (often used in point and shoot cameras with permanently attached lenses) to 54 x 41mm medium format sensors.
IF the trade space is NOT limited by any criteria, the range of cameras to consider would be mind boggling, especially if both Digital SLR (DSLR) cameras and mirrorless cameras of all formats are considered. A few of the many options (only some of which are covered here) would then include:
- Canon APS and full frame Digital SLR's (Rebel, models 5DS, 6D, etc.)
- Canon Mirrorless cameras (M and R series up to full frame)
- Fujifilm X APS digital cameras
- Fujifilm, Leica, and other medium format cameras that use 44x33mm sensors
- Hasselblad V and H series cameras and digital backs with up to 53x40mm sensors
- Leica M digital cameras
- Leica SL digital cameras
- Nikon Digital SLR's (many models)
- Nikon Mirrorless cameras (many models are full frame)
- Olympus 4/3 and Micro 4/3 cameras
- Panasonic Micro 4/3 cameras
- Panasonic full frame mirrorless cameras
- Pentax Q and other compact, small sensor cameras
- Ricoh GX series digital cameras, etc.
- Sony Mirrorless cameras in APS and full frame formats.
- Other cameras not fitting into the brands and categories above.
This material obviously will not examine all of these cameras and image sensors. This is partly because, when considering camera systems that would be comparable to a Fuji X system, many cameras are quickly ruled out due to image quality, system size and weight, available lenses, cost, or other factors.
Images from cameras with extremely small image sensors tend to have poor dynamic range and noise suppression artifacts that obscure real low contrast information in the final image. For this reason, only Micro 4/3 (17.30 x 12.98mm) and larger formats will be considered here.
When setting an upper boundary for sensor size, it is important to note that, in recent years, "medium format" has been redefined to include image sensors as small as 44x33mm. These image sensors do not offer as clear of an advantage over full frame 35mm format (36x24mm) as is the case for larger medium format sensors, especially when the somewhat limited range of lenses (especially vintage lenses) for 44x33mm format is considered. (And then there is size, weight, and cost.) Therefore, this material will only consider formats up to full frame (36 x 24mm) image sensors.
Mirrorless cameras are generally smaller than DSLR cameras, and mirrorless cameras offer the advantages of magnified view for focusing, plus focus peaking, and adaptability to a wider range of lenses. The wider lens compatibility is made possible in part by the mirrorless cameras having a shorter distance between the lens mount and the image sensor at the focal plane. All cameras considered will be of the "mirrorless" (i.e. non-SLR) type, partly because the reviewed Fuji X cameras are mirrorless cameras. This makes it possible to compare apples with applies.
Therefore, the trade space considered here will be limited to Micro 4/3 format through full frame format mirrorless cameras. This leaves us with only three general formats to consider:
- Micro 4/3 (17.3 x 12.98mm format)
- APS-C (23.4 x 15.6mm; but there is some size variation between camera brands)
- Full frame (36 x 24mm format, which is the same size as a 35mm film image)
More About System Size and Weight vs Image Sensor Format
The remaining trade space includes the size and weight of the camera system versus image noise and high ISO performance. In terms of size and weight, there is a diminishing return when going to a smaller format, because the size of the cameras and lenses do not scale in a linear fashion with format size.
For example, a Micro 4/3 camera has a sensor that is only about half the width of a full frame sensor, but a typical Micro 4/3 camera is not anywhere near twice as small as a full frame camera. This is partly because a camera has to be of a certain minimum size in order to have enough grip area to physically hold it, and lenses must be of a certain minimum size in order to contain auto focus (AF) motors and other non-optical components.
Therefore, a Micro 4/3 camera may be almost the same size as an APS format camera, and both may be on the order of 3/4 as large as a full frame camera. In addition, there is a considerable size difference between the camera models and lenses made by different manufacturers.
Related examples include that some Micro 4/3 cameras (Panasonic G9) and APS format cameras (Fujifilm X-T4) are almost as large as, if not larger than, smaller full frame cameras made by Sony or Leica (Sony A7 series, Leica M11, etc). Also, many manufacturers, including Canon and Nikon, have introduced very compact full frame cameras in recent years.
So in the end, the camera system size and weight ultimately comes down to whether or not a manufacturer produces a product line that emphasizes compactness. The Leica M system is one of the most compact full frame camera systems available, but it is expensive and the lenses are manual focus only.
There was a time when Leica M cameras were more expensive than almost any other brand. However, some Canon, Nikon and Sony cameras now cost about as much as a digital Leica M. And if spending that much, I'd tend to favor the Leica M for a full frame still image camera. This preference would of course change if the full frame camera was also used for video. For that, a full frame mirrorless camera such as the Sony a7S III would probably be of interest.
2.2. Available Lenses and Accessories
Once a format has been tentatively selected, the next tradeoffs include camera and lens brands. Trades here include the number and type of available camera models and lenses, price, and (for some) whether or not it is possible to effectively use third party lenses on the cameras. Features noted in Fujifilm X reviews below will show why I chose the Fuji X system over other brands.
2.3. Pixel Size vs Image Noise vs Noise Reduction (NR) Artifacts vs Brand
One benefit of larger image sensors is that, for sensors with an equal numbers of pixels, larger pixels generally provide more real world dynamic range and less noise at a given ISO setting. This is because, in this situation, the pixels will be larger when the sensor area is larger. For example, a 24 MP image sensor having a 1.5:1 format aspect ratio (such as full frame and APS) will have a pixel array of 6,000 x 4,000 pixels. Micro 4/3 has a 4:3 aspect ratio, so a 24 MP array size will be different, being about 5657 x 4243 pixels. To get the pixel size (actually, the pixel interval), we simply divide the sensor width by the number of pixels in each row, which is 6,000 in the case of the 1.5:1 aspect ratio formats.
Therefore, the pixel interval for full frame (36x24mm), APS (23.4x15m6mm) and Micro 4/3 (17.3 x 12.98mm) sensors can easily be calculated. The sensor widths will be shown in microns (1/1000 mm) so we can more directly arrive at the pixel size in microns.
Sensor Sensor Sensor 24MP Array Pixel Size Pixel Size Pixel Area Format Size (mm) Width (µm) Size (Pixels) Calculation (Interval) (µm^2) Full Frame 36.0x24.0 36,000 6000 x 4000 36000/6000 6.00 36.0 APS-C 23.4x15.6 23,400 6000 x 4000 23400/6000 3.90 15.2 Micro 4/3 17.3x12.98 17,300 5657 x 4243 17300/5657 3.06 9.4
Pixel size is important, because a larger pixel has more area to collect light than a small pixel. Since a small pixel collects less light, the camera has to "gain up" the image signal (much like what happens at a higher ISO setting) to make the image as bright as that from a large pixel sensor. Therefore, all other things being equal, an image from a sensor with small pixels will have more noise. (Or even worse, a camera with excessively small pixels may have noise reducion artifacts that obscure real image detail.) On the other hand, large pixel has a larger full well depth, which means that it can tolerate a larger number of photons without saturating. This improves dynamic range.
When I last researched this in detail (which was not recently), a 6 Micron CMOS pixel was about the smallest size that could capture real 16 bit image information (about 65k photoelectrons) without saturating. This is completely independent of the A-D converter in a camera, because a camera having a sensor with a full well depth of only 14 bits can still use a 16 bit A-D converter. But at the end of the day, the real world bit depth is limited by the least capable component.
In pracice, I have found that, on a CMOS sensor, a 4.3 micron pixel (which is just barely capable of capturing 15 bit image information) is about the smallest size that is not associated with either excess noise at even low to moderate ISO settings, or a distracting degree of noise reduction artifacts. A pixel width even 10 percent smaller than this may be another story. At the time I looked into this, a CCD sensor pixel had to be about half again larger than a CMOS pixel to capture an equivalent bit depth.
2.3.1) Image Noise and Noise Reduction Artifacts:
Since an image captured by a camera having small pixels will usually have more noise, small pixel cameras made by most manufacturers apply noise reduction (NR) to the image. Since NR suppresses the small period features in image noise, too much NR will begin to smudge or even remove real low contrast or small period features from an image. The results do not always impact the appearance of the entire image too severely, but it will obscure smaller details that are easy to see if the image is significantly cropped.
Excessive NR can also make a picture of distant trees look like a water color of distant trees, where much of the real detail is smudged out and replaced with random low contrast noise reduction artifacts. The same thing can happen to the imaged appearance of hair, subtle patterns in cloth, and other subject matter.
The amount and type of noise reduction (NR) is influenced by both the pixel size and the noise reduction philosophy of each camera manufacturer. Some manufacturers let users select how much NR is applied via the camera menu, while others may be heavy handed in applying NR. For example, early Olympus Micro 4/3 cameras such as the E-P1 and E-P2 did not apply too much NR to an image. In a sense, they did not have to go overboard on NR with those cameras because the sensor was only 12MP, with a 4.3 micron pixel interval. The later Olympus E-P3 uses the same sensor, but adds a little more NR.
Toward the other extreme, the 16 MP Panasonic GX7 (3.77 micron pixel interval) applies a lot of NR, and there is no way to dial it back to what I'd consider to be an acceptable level. The pixel width is only 12 percent smaller (and pixel area 23 percent smaller) than in the Olympus E-P2, but the amount of additional NR in the GX7 is dramatic (and for me, distracting). By contrast, the 3.9 micron pixel size of the Fujifilm X-T20 is similar to the GX7 pixel size, but the X-T20 image is not smothered in NR to the same degree. There is a little "watercolor" effect in Fuji X-T20 images, but there is almost none of that in images from the 16 MP Fuji X-T10.
For me, the optimum CMOS pixel size would remain between 4.3 and 6 microns, regardless of the format. This would result in a full frame sensor with no more than 47 MP, an APS sensor with no more than 20 MP, and a MFT sensor with no more than 12 MP. Since a 20 MP sensor is adequate for most subjects, an APS format camera should also be adequate, as long as at least some models don't exceed that pixel count.
2.4. Image Sensor Filter Stack and Anti-Alias (AA) Filters
In general, the image sensor cover glass and filter stack in a given camera will not be an issue IF the camera is used ONLY with lenses made for it by the camera manufacturer. Such lenses are designed to accommodate the sensor filter stack, usually by incorporating a quasi telecentric projection of the image onto the focal plane. This projection minimizes the range of angles at which light intercepts the image sensor.
A sensor stack that includes an anti alias (AA) filter should work adequately with the camera manufacturer's lenses. However, many AA filters impose a maximum useful aperture at which images having good off-axis sharpness can be obtained with even "compatible" lenses. On some cameras, this maximum aperture could be as slow as f/2 for a lens that does not have mechanical clipping of its maximum aperture, and f/1.7 or perhaps even faster for a lens that has a considerable amount of mechanical aperture clipping at full aperture. Mechanical clipping of the maximum apeture is common in camera lenses, and is usually caused by undersized front or rear element groups. Mechanical aperture clipping reduces the range of angles at which the light bundle intercepts the edges of the image sensor (which can improve off-axis resolution), but this is at the expense of vignetting.
When fast lenses or wide angle rangefinder lenses having short exit pupil to focal plane distances (such as many Leica M mount wide angle lenses) are used with a camera having a thick sensor filter stack and/or an AA filter, highlights at the edges of the picture may be surrounded by radial smearing or double imaging that extends over 10 pixels from each highlight. And if the camera has a birefringent AA filter, most if not all of the smearing will extend from the highlight toward the center of the frame.
Therefore, if it is anticipated that wide angle rangefinder lenses or extremely fast f/ratio lenses will be used, it is often best to get a camera that has both a thin sensor filter stack and no AA filter.
2.5. Image Sensor Type (and Micro Filter Patterns, etc.)
Image sensor type tradeoffs used to involve a lot of possibilities, ranging from whether a sensor was CCD or CMOS, whether it is optimized for color or monochrome images, and (for color sensors) the pattern of the micro filters and micro lenses. Some of these options have disappeared over time. For example, the Leica M9 was one of the last widely available digital still cameras to use a CCD sensor. CMOS later became dominant, in large part because CMOS sensors make it easier to implement live view and HD video features.
The vast majority of digital cameras are color, though there are exceptions, with some made by Leica. Micro lens arrays are generally implemented in similar ways, except that Leica implemented offset micro lenses (where the optical axis of micro lenses toward the edge of the frame are not centered over the pixels) to get image sensors to work more efficiently with existing wide angle rangefinder lenses.
Micro filters on color image sensor pixels are one area in which very few companies departed from using conventional Bayer micro filter arrays. Here, Fujifilm became the maverick when they implemented the X-Trans sensor, which is covered in the next chapter.
2.6. Personal Preferences
Personal preference will often figure into the trade space for camera gear, since a big consideration is whether or not one will actually enjoy using the camera and associated lenses! My selection of the Fuji X system is of course based on my own preference for certain features, so it does not imply that Fuji X cameras will be the best choice for everyone.
The APS format Fuji X system reviewed here is in the middle of the range in terms of system size and weight, but is a little on the high end in terms of price for APS format cameras.
Fuji X was initially selected because of the camera user interface features, but after using it, I found that the images had much lower noise levels (and fewer noise reduction artifacts) at a given ISO setting than any of my Micro 4/3 cameras. And the image quality from Fujifilm X cameras was close enough to Leica M full frame images that I now may use a Leica M only when I want that little bit of extra resolution or shallow depth of field that the Leica provides.
3. Basics of the Fujifilm X Mirrorless System
Fujifilm X (also called Fuji X) cameras are a line of mirrorless cameras, each having an APS format image sensor that measures about 23.4 x 15.6mm. "Mirrorless" simply means that an electronic viewfinder is used instead of the optical viewfinder and focusing screen that are used in an SLR camera. This eliminates the need for the flip mirror of an SLR camera, which in turn makes it possible for mirrorless cameras to be relatively small in comparison to SLR's. It also provides more flexibility in lens design, since the rear elements of lenses no longer have to clear a camera flip mirror, and can thus be closer to the focal plane.
The Fujifilm X camera system is based on about seven different general types of Fujifilm cameras, each of which emphasizes different features:
A.) Simple camera with fixed lens and optical/EVF viewfinder (X100 series)
B.) Low cost interchangeable lens cameras (XE series: X-E1 to X-E4, etc.)
C.) Interchangeable lens cameras w/multi (optical/EVF/Screen) viewfinders (X-Pro)
D.) Compact interchangeable lens camera with good features (X-T10, X-T20, X-T30)
E.) Pro system interchangeable lens moisture resistant cameras (X-T1 through X-T5)
F.) System interchangeable lens cameras with flip screen for vlogging (X-S10, X-T4)
G.) Cameras optimized for Video: (X-H2s, etc.)
An overview of Fuji X cameras are under "X Series" cameras at this Fujifilm link:
https://fujifilm-x.com/global/products/cameras/ (Cut and paste link into browser.)
3.1. Fujifilm X-Trans Image Sensor
Most Fujifilm X cameras have X-Trans image sensors. These have a different color micro filter array layout (over the individual sensor pixels) than a conventional Bayer filter array. The micro filter array is the most significant distinguishing feature of the X-Trans image sensor. The sensor itself (without the micro filters) is very similar to most other image sensors that have a similar size and pixel count.
A conventional Bayer micro filter array is laid out like a checkerboard, with each square cluster of 4 equally sized square pixels having two green filters at opposing corners, one red filter at another corner, and one blue filter at the remaining corner. The 2x2 pixel Bayer color filter pattern repeats itself over the entire active area of the sensor. Half of the pixels have green filters, one fourth have blue filters, and one fourth have red filters.
The X-Trans sensor pixel filter layout is entirely different from a Bayer filter array in that the filter pattern is larger than 2x2 pixels. The filter patterns for certain filter colors are also different sizes. The precise layout has changed a little over time, but only the X-Trans sensors incorporated into in most of the cameras reviewed herein will be described.
In the X-Trans image sensor, green pixels are laid out within a pattern of 3x3 pixels that repeats itself over the entire sensor. The green filter layout consists of a contiguous square cluster of 4 pixels, plus one more green pixel at a diagonal toward the lower right. The red and blue pixels are arranged in orthogonal directions around the lower right green pixel, with two red pixels straddling the green pixel in one direction, and blue pixels straddling it in the other. In each 3x3 pixel group, five of the pixels are green, two are red, and two are blue.
But that's not all. The directions that the blue and green pixels straddle the single green pixels is only consistent in a diagonal direction. When the pattern is repeated in the orthogonal direction, the relative directions that the red and blue pixels straddle the single green pixel alternates with each repeat of the single green pixel. ("ASCII Art" below will show the pattern more clearly.)

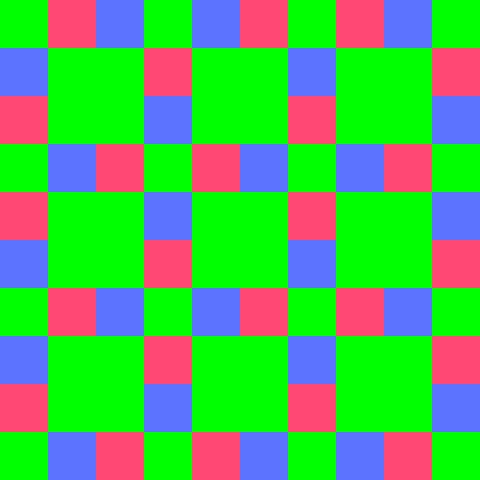

Another way of visualizing the X-Trans color filter layout is to look at the contiguous clusters of 2x2 green pixels as being arranged in an orthogonal grid, but with only a single pixel of clearance between each 2x2 pixel group. Each pixel in a cluster of 2x2 green pixels is addressed independently, resulting in higher luminance resolution than is the case for chroma (color) resolution in green. The gap between the clusters of green filtered pixels is again only one pixel wide. Most of these gaps are used for other filter colors.
At each corner of the large 2x2 green filtered pixel cluster is a single green pixel. Red and blue pixels are parsed along the sides, top, and bottom of the large green pixels. This results in a slightly lower proportion of sensor area being used to capture blue and red light with respect to the green light. This can theoretically result in slightly less resolution for each color than is the case for a Bayer array. But that is the point in a way, because the larger period, and the mixed effective pixel sizes and positions for each color, is intended to reduce moire.
The entire Fujifilm X-Trans color filter pattern repeats itself in every 6x3 cluster of pixels, but the pattern is repeated in a diagonal direction. In order to visualize the X-Trans pattern along a square grid, it is necessary to look at an array of 6x6 pixels that repeats itself in orthogonal directions. In an X- Trans sensor, 5 out of every 9 pixels have green filters, 2 out of every 9 have blue filters, and 2 out of every 9 have red filters. The ASCII maps below show the micro filter color (Red, Green, and Blue) for each pixel in a Bayer array (left) and the X-Trans sensor (right:):
BAYER BAYER BAYER | X-TRANS X-TRANS X-TRANS X-TRANS X-TRANS X-TRANS GREEN ARRAY: UNIT: PARSING | ARRAY: UNIT: PARSING RED GREEN BLUE UNIT | (AS 3x3) RGRGRG RG RGRG | GBGGRG GBGGRG GBGGRG ----R- G GG G -B---- GBGBGB GB GBGB | RGRBGB RGRBGB RGRBGB R-R--- G G ---B-B RGRGRG RG | GBGGRG GBGGRG GBGGRG ----R- G GG G -B---- GG- GBGBGB GB | GRGGBG GBGGRG -R---- G GG G ----B- GG- RGRGRG | BGBRGR RGRBGB ---R-R G G B-B--- --G GBGBGB | GRGGBG GBGGRG -R---- G GG G ----B- ALTERNATE X-TRANS ILLUSTRATION: 3x3 ARRAYS, CENTERED ON SINGLE -B- -R- GREEN FILTER (CENTER DASH); RED R-R B-B AND BLUE POSITIONS ALTERNATING: -B- -R-
![]() |
This illustration shows the parsing of red, green, and blue filters on the micro filter array of a Fujifilm X-Trans image sensor. The green pixel pattern (a 2x2 pixel square area with a single green pixel just off one corner) repeats on a 3x3 grid in all directions. The red and blue filters repeat on a 3x3 grid only in a diagonal direction. In orthogonal directions, positions of the red and blue pixels alternate every three pixels. Therefore, the color filter patterns do not repeat inside of any given 6x3 pixel area. This is done partly to reduce the risk of moire when a fairly weak birefringent anti-alias filter is used. One drawback of the X-Trans sensor is that it has less chroma resolution in each color, when compared to a Bayer micro filter array. |
One stated purpose of the X-Trans sensor pixel layout is to reduce moire in cameras that do NOT use strong birefringent anti-alias filters. The X-Trans sensor is common to several Fujifilm camera models. An additional benefit that I have observed in practice is that some X-Trans sensors are more resistant to certain large scale color artifacts that can occur with Bayer arrays, such as where red or magenta blooming may extend up to hundreds of pixels in orthogonal directions from extremely bright highlights. Instead of these orthogonal artifacts, some X-Trans sensors will usually spread a red or magenta color artifact around a more faintly defined ring that surrounds extremely bright highlights. This is usually much less distracting than orthogonal artifacts, as shown below.
![]() |
Digital Camera Artifacts Around Highlights (Panasonic Bayer and Fujifilm X-Trans) |
These pictures were taken to evaluate suitability of various cameras for astronomical imaging, including of total solar eclipses. One goal of the camera and lens testing was to determine which cameras could obtain a total solar eclipse image that is relatively free of artifacts that introduce false color or hinder getting a clean image of the lunar limb during the "diamong ring" at the beginning and end of the total eclipse phase. LEFT: Example of large scale (over 1,000 pixel long) color artifacts from an image sensor having a Bayer filter array. This long 8-second exposure of the half moon was taken with a Panasonic GX7 camera (ISO 200) and a Leica 250mm f/4 Telyt-R T2 lens set to f/6.8. (The exposure time required to cleanly image earthshine on the moon during totality would not be much shorter at the same ISO.) The photo has large scale orthogonal magenta color artifacts that surround the sunlit part of the moon. These are caused by the camera and not the lens. A possible cause is that the interval between pixel filters of a given color in the Bayer array are a multiple of a given wavelength of light, while the effective pixel and filter pitch at other angles would correspond to multiples of different wavelengths. (But at these other angles, the pixel edges are not perpendicular to a radial line from the highlight.) In this sample, saturation was increased 50 percent to make the color artifacts more obvious. RIGHT: This long exposure of the half moon was taken with a Fuji X-T10 camera, which has the Fujifilm X-Trans micro filter array over its pixels. The Fuji camera's pixel filters are not arranged in a traditional Bayer array, and it does not have orthogonal artifacts like those in the GX7 image. Instead, artifacts in this Fuji camera are alternating circles of lower saturation red and green that encircle a heavily overexposed subject. I did not have an X-T10 at the 2017 solar eclipse, but acquired one later, partly because it has a real marked shutter speed dial. Saturation is increased here too. The Fuji X-T20 sensor has different qualities that produce an image with orhogonal features like those in left photo. |
In the case of the orthogonal color artifacts around highlights imaged with Bayer sensors, the intensity and color of the artifact usually changes according to the pixel interval. For example, a sensor with a 3.8 micron pixel interval was used in the image (above left) that has strong magenta artifacts. When a camera having 4.3 micron pixels was used, the orthogonal artifacts were a slightly weaker reddish orange color, and when a camera with a 5.4 micron pixel interval was used, the artifacts were a relatively weak sepia color. I do not yet have test results for color shift versus pixel size for the Fuji X-Trans sensors, but the above example shows a tendency toward magenta with the 4.8 micron pixel interval of the X-T10. Details about color artifacts are illustrated in the image samples above, and are discussed more in Appendix B of Reference [2], which is linked at the end of this document.
The nature of color artifacts does differ somewhat between Fujifilm X camera models. For example, the Fujifilm X-T10 has the subdued annular color artifacts shown in the right image above, while the X-T20 has partially directional artifacts like the image on the left, except that color artifacts in the X-T20 are very subdued by comparison. Based on this observation, the X-T10 may be a better choice for total solar eclipse imaging than the X-T20.
3.2. Marked Shutter Speed Dial
Most Fujifilm X cameras have shutter speed dials that let you manually set the shutter speed. This is a very good feature, since you can see the shutter speed settings even when the camera is not turned on, and you don't lose the settings when the camera power is cycled.
3.3. Focus Mode Switch
Almost all interchangeable lens Fujifilm X cameras have a focus mode switch on the front that has settings for manual focus (M), continuous AF (C), and single AF (S) modes. This is a very useful switch because it can lock out auto focus (AF) on a lens that does not have its own manual focus switch. If the camera switch is set to manual focus, it keeps the camera and lens from going into auto focus mode, which important for astrophotography and some other applications.
This focus mode switch was yet another feature that led to my getting into Fujifilm cameras and starting to get out of Micro 4/3. For me, the last straw for Micro 4/3 happened in Idaho at the total solar eclipse of 21 August 2017. I had acquired the (expensive) Olympus 8mm f/1.8 fisheye lens specifically for taking wide angle video of the total eclipse over the local horizon. But neither it or the Micro 4/3 camera I was using had a focus mode switch. The combination proved to be a disaster that prevented getting any wide angle video at all. Details are at the end of Chapter 4, in the part about total solar eclipse imaging.
4. Advantages and Disadvantages of Fujifilm X Series Cameras
Most Fujifilm X cameras have a familiar look and feel for those who have used interchangeable lens film cameras that have manual settings. This is partly because the positions of manual controls on some Fuji X cameras are based on the locations of corresponding controls on film cameras.
Back when film was the only game in town, most interchangeable lens cameras used dials for setting the shutter speed and f-stop. With few exceptions, this was the case clear up until the early 1980's. One of the exceptions was the compact Pentax ME Super camera, which used buttons instead of a dial to set the shutter speed.
This chapter is divided into two major sections. The first part covers advantages and disadvantages of Fujifilm X cameras for everyday pictures. The second part covers the same, but for special applications including virtual reality (VR) and astrophotography.
4.1. Advantages and Disadvantages of Fuji X Cameras for Everyday Photography.
This section covers using Fujifilm X series cameras for ordinary photography, and does not emphasize special applications. The next section (4.2) covers the use of Fujifilm X cameras for astrophotography and some other specialized applications.
4.1.1. Advantages:
Advantages of the Fujifilm X system are ultimately determined by what each photographer considers to be an advantage or a disadvantage. The needs and preferences of each user determine if a certain feature is an advantage or a shortcoming, and which features are most important. In some cases, a feature that is an advantage for one person may be a disadvantage for another.
For example, a person who is accustomed to using a 35mm SLR or medium format film camera, and who wants to retain attributes of such cameras (and the resulting photos) in digital imaging, would find a full fame sensor advantageous. However, a person who formerly took pictures with a simple Instamatic (R) film camera may find the limited depth of field (versus f-stop) of a full frame camera to be a disadvantage, because a larger format imposes the need to accurately focus on a subject. People who are used to using an Instamatic (R) may prefer a camera with a small sensor that will have more depth of field and provide images where objects at a wide range of distances are in focus. Many people with such preferences may be content taking pictures with a phone.
Marked Shutter Speed Dials and Aperture Rings
Digital cameras have long relied on screens and buttons or unmarked dials to make settings. This is generally a less efficient user interface than the direct-read dials and rings on vintage film cameras. Digital camera systems that provide visual and tactile manual settings are rare. Even as of late 2021, Fujifilm and Leica are still the ONLY digital camera systems I am aware of that have BOTH real shutter speed dials on the cameras AND aperture (f-stop) setting rings on the lenses. Some recent digital cameras by other manufacturers at least have shutter speed dials, but the matched lenses for these systems generally do not have aperture rings.
Most Fujifilm X cameras have real shutter speed dials, and most Fujifilm XF lenses have aperture dials. A camera with a real shutter speed dial AND aperture ring makes it possible to see the camera settings (and set the camera) without even having to turn it on. And you don't even have to look at a camera screen or electronic eye level viewfinder (EVF) to see the settings. Shutter and aperture settings can also be changed by just counting clicks, without even looking in a screen. This can be important for portraiture, in that it can keep the photographer from being hidden behind the camera and distracted by a display screen, for more connection with the subject.
Once some people (including me) have used a camera with a shutter speed dial along with lenses that have f-stop rings, looking at a screen to set shutter speed or f-stop just isn't on anymore. This is especially true for astronomical imaging, since frequently looking at a screen can foul up visual dark adaptation. So, the shutter speed dials and marked aperture rings are a plus for me. It is not known if this would be a plus for people who are used to taking pictures with a phone. However, one purpose of getting a "camera" is to gain the capability to take the types of pictures that phones cannot take.
Simple Switching Between Manual and Auto Without Losing Manual Settings
Some Fuji X cameras (X-T10, etc.) have a SIMPLE way to switch between manual and full auto with a single switch on the top of the camera. And when switching back to manual, the manual settings are still preserved on the camera shutter speed dial and lens aperture ring. As my friend Roger Hess used to say about simple processes: "Boom boom boom - You got it!"
AF Lock and AE Lock Buttons
Another handy Fuji X camera feature is the "AF-L" button on the back of the camera. If the camera is set to manual focus, the AF-L button will enable auto focus only while it is being pushed. As soon as it is released, the camera is back in manual focus. This makes it possible to keep the camera in manual focus mode (so the lens does not search for focus when the shutter release is half pressed), then just push AF-L the button to instantly get focus and take the picture immediately afterward. The button is also handy for focusing the lens on subject that moves only occasionally, after which I can manually focus (or push the AF-L button again) as needed. AF and AE lock buttons are not unique to Fujifilm, but the Fujifilm implementation makes them easier to use, at least in my opinion.
Exposure Preview
Most Fuji X cameras, including the X-T10 and X-T20 (reviewed below) have settings that let you see the effect of the set exposure and white balance right in the electronic viewfinder. This shows more or less what the final photo will look like. In some cases, it can even preview what a photo of an astronomical object will look like, within reason. Exposure compensation is done via a dedicated physical dial, so it is easy to use the camera in full auto or aperture priority, then just bias the exposure with the compensation dial if the preview of the auto exposure looks too dark or too bright.
Focus Mode Switch
Most Fujifilm X (other than X-S10) have a front focus mode switch that can lock out auto focus (AF) in situations where a lens lacks an AF/MF switch and when AF may not work well, including for photography or video in low light, or astrophotography. Lack of this feature on other cameras has lead to uncommanded focus mode changes that were followed by endless focus hunting on certain subjects in subdued light. (Focus hunting problems like this are so 1990's!) The previous chapter covers this a little more.
Easy to Use Built-In Interval Timer
Many Fujifilm X cameras also have a built-in interval timer that is EASY to use. A lot of cameras have interval timers, but the timers in them are not as easy to set.
Power Management can be Turned Off
Fujifilm cameras I have used to date have a setting to turn off power management, so it won't turn the camera off at critical times. (I have had Micro 4/3 cameras turn themselves off at extremely critical times.) Along with the focus mode switch and marked shutter speed dials, this was a feature that led to my switching to the Fuji X system.
Fujinon X-Mount Lenses and Third Party Lenses
Fujifilm X lenses are about the same quality as those of the same age and price range that are made for Canon, Nikon and Sony digital cameras. Most of the Fuji X lenses are physically larger than equivalent Micro 4/3 lenses, but the image quality on APS format (23.4 x 15.6mm image sensor) is noticeably better (and less noisy) than Micro 4/3 format (17.3 x 13mm sensor).
So far, I have used (and tested) mostly "low end" Fuji lenses, because I use Leica M mount lenses on the camera when I want the best results possible. The Fuji lenses (plus third party lenses) that I currently use on Fuji X cameras provide about the same range of field of view as what I had in my Micro 4/3 system. Namely, the utilized lenses provide fields of view ranging from the 180 degree circle imaged by a fisheye lens, up to about a 600mm or longer equivalent focal length.
The "crop factor" for the APS format of Fuji X cameras, when compared to full frame, is about 1.5x. This means that a 50mm focal length lens, used on a Fuji X camera, will provide the same field of view as a 75mm lens will provide on a full frame camera.
4.1.2. Disadvantages of the Fujifilm X System:
Disadvantages of the Fuji X system are limited to only a few areas, but the needs of each user will determine if these shortcomings are important. In some cases, a feature that is a disadvantage for one person may be an advantage for another.
Format is Smaller than Full Frame (some may like it, some may hate it)
First, the Fuji X system is not based on a full frame sensor. This is by no means a disadvantage for people who only want to take everyday pictures, since the added depth of field at a given f-stop that is provided by the smaller APS format could even be an advantage for such pictures. The down sides of the APS format include that noise will at least theoretically be higher at a given ISO setting than on full frame, and it is more difficult to obtain images having shallow depth of field with normal focal length lenses.
Thick Image Sensor Filter Stack (at least compared to Leica M)
Second, Fujifilm cameras have a relatively thick sensor filter stack that is about 2mm thick. This causes some radial blurring of highlights in off-axis parts of the image in pictures taken with compact high speed wide angle rangefinder lenses. The sensor filter stack might even be a factor in the lackluster edge performance of the Fujinon 18mm f/2 pancake lens.
However, Fujifilm is not alone here. Many other cameras have even thicker sensor filter stacks, with Micro 4/3 apparently being about twice as thick. Leica M digital cameras are among the few that have thin (less than 1mm thick) sensor filter stacks.
Closed System Architecture (relatively speaking) Until 2022
Third, Fujifilm did not open up the Fuji X system to third party lens manufacturers until recently. (There have long been plenty of third party manual focus lenses that could be used via adapters, but not many AF lenses.) For a long time, the range of available third party auto focus lenses was fairly limited, and a long range zoom (such as one with 10:1 or longer range) was not available for Fujifilm cameras until late 2021. And then there was only one: Tamron introduced an 18-300mm f/3.5-6.3 AF zoom lens for Fujifilm X cameras. Another long range zoom option was not available in the Fujifilm X Mount until Sigma introduced their 16-300mm f/3.5-6.7 lens in early 2025. The Sigma lens has a smaller barrel diameter at the back end, which is more compatible with using the camera on a large tripod head.
By contrast, Leica M mount, Nikon F mount, and Micro 4/3 mount have long been relatively "open" architectures, where multiple manufacturers can use the SAME lens mount in both their cameras AND lenses. Sony mount is not used on many other camera brands, but Sony makes both APS format and full frame cameras that use the same lens mount. Also, Sony has long made it possible for third parties to make auto focus lenses that are compatible with their cameras.
A related drawback for Fuji is that Fujifilm also does not offer individual parts such as lens mounts. This makes it difficult to adapt special purpose optics to Fujifilm cameras. A specific example of this being a problem for Virtual Reality imaging (with the Entaniya HAL 250 degree fisheye lens) is discussed in the "Advantages and Disadvantages Fuji X for VR Imaging" subsection below. By contrast, Sony lens mounts have apparently been available to at least some third party specialty lens manufacturers, so more low volume lenses were available in Sony mount.
Fortunately, the Fujifilm X mount was opened up to more third party lens options during and after 2022. AF lens offerings since then have included wide angle zooms such as the Sigma 10-18mm f/2.8, high speed prime lenses such as Viltrox 13mm f/1.4 and 75mm f/1.2, and several other options.
Limited Special Applications (due to relatively closed architecture)
Some other drawbacks include that it is difficult to have third party sensor filters installed to enhance the performance of a Fujifilm camera for astronomical imaging. Many features of nebulae are in the spectral area covered by blue and red pixel filters, and the relative surface area of blue and red filtered pixels in an X-Trans sensor is slightly less than is the case for a Bayer micro filter array.
Obscure Menu Setting Required Before Most Manual Focus Lenses Can Be used
Like some other mirrorless cameras, the Fuji X menu item for "Shoot Without Lens" must be set to "ON" before the camera will work with manual focus lenses. If this menu setting is not made, the camera WILL NOT TAKE A PICTURE when a manual focus lens is attached (unless the lens or adapter has contacts that communcate with the camera). Other manufacturers, including Panasonic, also require this setting for manual focus lenses.
However, the Fujifilm menu location for "Shoot WIthout Lens" is in an obscure place that is completely non-intuitive. The setting is buried in the "Setup", menu, under the "Button/Dial Settings" of all things. Button/Dial is where functions are assigned to the function buttons. It appears to be OK to leave Shoot Without Lens set to "ON" all the time, but if it is not set up ahead of time, it will be almost impossible to figure out in the field.
Olympus is one of the few camera makers that got this right by leaving out the requirement to make this setting. But Olympus cameras are Micro 4/3 format, and power management cannot be turned off on some models.
More Internal Contaminants (compared to some other brands)
Another problem area is that some Fujifilm cameras seem to have more small contaminants behind the sensor cover glass (where it is inaccessible for cleaning) than is the case for many other cameras. However, this usually is not a problem unless extremely slow f/ratios are used.
Some New Camera Models Lack Focus Mode Switch
Disappearance of the focus mode switch on some newer Fuji cameras is a concern, since it can lead to situations where a lens will go into auto focus mode and continuously hunt for focus, particularly in dim light. (This type of problem was solved by the early 2000's, but started coming back in some modern cameras.) Hopefully, Fujifilm will realize the error of deleting this switch before they remove it too many of their other new cameras. The switch can be implemented in ways that make inadvertent mode switching by new photographers unlikely. (Lack of tactile focus mode selection in Micro 4/3 cameras and certain lenses played a significant role in my switching from Micro 4/3 to Fuji X.)
The "Wormies"
In most digital cameras that produce color images, no single pixel captures all three primary colors. Instead, in the original image (as captured by the image sensor), each pixel captures only ONE primary color. This is accomplished by microscopic color filters in front of each pixel. (See Part 3 for details.) In simple terms, the camera processes the image to average colors from nearby pixels. This provides an output image in which all of the pixels have all three primary colors. Another way of saying this is that most color digital cameras only have about half as much resolution in each color, compared to what would be expected based on pixel count. The X-Trans sensor has considerably less resolution than a standard sensor for red and blue.
In a conventional image sensor with a Bayer micro filter array, the basic color filter pattern is repeated every two pixels orthogonally, and the green interval is only one pixel in the diagonal direction. The Fujifilm X-Trans sensor, on the other hand, repeats its basic green micro color filter array pattern every three pixels in both orthogonal and diagonal directions. However, the orthogonal interval is every two to six pixels for the red and blue filters, though the interval usually does not exceed three pixels in roughly diagonal directions.
When a digital camera processes an image to make all pixels have red. green, and blue components, it must shift or stretch (blur) and interpolate the colors from the original Bayer (or X-Trans) filter array so that the values of each pixel in the output image will include color values from the nearest neighboring pixels. This processing usually involves averaging the values for the nearest neighboring pixels from the originial image.
In the case of a Bayer array, the nearest pixels for any color are immediately adjacent to the pixels for other colors. Therefore, the output image will have roughly half as much resolution in each color (or channel) as the image sensor pixel count would indicate. This can cause some "stair stepping" in diagonal lines, but the step pattern is so small that it is rarely a problem. Also, if the camera has an anti-alias filter, it will blur the step pattern a little, at the expense of some resolution.
In the case of the X-Trans sensor, the nearest pixels for some colors may be TWO pixels away from the pixels for certain other colors. This means that, if all pixels in the output image are to have values for all three primary colors, the values for some colors in the original image (blue and red in particular) must be shifted, blurred, and interpolated by up to TWO pixels to provide the output image. This also results in "stair stepping" of the original image. However, since the X-Trans sensor has a longer period micro filter pattern, and a different pattern for red and blue verus green, the stair step pattern is larger, and is not as regular.
The irregular blurring and interpolation used to produce the output image from an X-Trans sensor can sometimes cause some small, straight features in the image to appear to zig-zag a little, and to look somewhat like the shape of a snake or a worm. This is subtle and appears only on certain types of subjects, but once you see it, it is hard to "unsee" it in images of similar subjects. Some photographers call this effect the "wormies." If you look at the above illustration of the X-Trans fitler array, and note the positions of the red and blue micro filters, it is easy to see how the mapping of a red or green boundary that is not quite orthogonal to the sensor edges could cause the wormies in a final image.
The wormies are most likely to appear on relatively high contrast lines that represent features that are very small in the picture. One example is a picture that includes a silhouette of a distant tower that tapers to a smaller width at the top. If the sides of the tower have a certain angle, most of the tower members will appear to be tapered or slanted (as they should), but segments of some other parts may appear to be completely vertical in the image, then suddenly step slightly to one side (by about 1-2 pixels) for the next segment. This effect can also appear in bird feathers, though it usually is not as obvious. The wormies can also have an appearance similar to distortion that atmospheric turbulence can cause on distant subjects, except that the wormies disproportionately affect features that are almost, but are not quite, parallel with the edges of the image sensor, or that are close to a 45 degree angle from this.
4.2. Advantages and Disadvantages of Fuji X Cameras for Special Applications:
This section covers the basic advantages and disadvantages of Fujifilm cameras for special applications such as Virtual Reality (VR) imaging, astrophotography, etc.
4.2.1. Advantages and Disadvantages of Fuji X for VR Imaging:
The Fujifilm X camera system does not offer any clear advantages over other camera brands for most Virtual Reality (VR) imaging with hyper wide optics. Some models do have panoramic modes, but this is not the same as using the camera with a 180 degree (or wider) lens to take 360 degree panoramic or full sphere images. However, a Fujifilm X camera can obviously still be used for VR imaging in cases where it can be adapted to the related optics.
Disadvantages of the Fuji X System for VR imaging comes back to the matter of the relatively closed system architecture, and the fact that Fujifilm has not been willing to sell individual parts such as lens mount plates that can be used in adapting specialized optics to their cameras. This makes it difficult for both individuals and OEM's to adapt special purpose optics to Fujifilm cameras. This is especially true when optics lack the back focus distance required to use an adapter.
Specifically, the metal lens mount from some Fujifilm lenses or extension tubes would work for adapting certain VR optics to Fujifilm cameras, but Fujifilm would not sell the lens mount separately. (I tried to buy lens mount plates from them, so I know this first hand.) Therefore, one has to resort to buying a Fuji or third party lens or extension tube, then cannibalizing it to get a lens mount.
A real world example is where lack of an available lens mount plate made it difficult to adapt an Entaniya 250 degree MFT fisheye lens to a Fujifilm camera without having custom parts made and/or cannibalizing a Fuji X mount extension tube to get a lens mount. I was going to resort to a kludge involving the latter, since I can't do significant machining any more. But unfortunately, the extension tubes I bought on Amazon had a plastic lens mount.
Later, a different party began selling Fuji X lens mount rings he had made on eBay, so I bought a couple of them. Unfortunately, these were not quite to spec (the flange to bayonet claw distance was too short), so it had to be modified before it could work. Such problems could be eliminated if manufacturers would sell their own lens mount places, since these would be to specification.
By contrast, Sony and MFT lens mounts are apparently available to third party lens manufacturers, so Entaniya offered turn-key adapters for both Sony and MFT cameras. This may lead most to just get a Sony or MFT camera to use with the Entaniya lens.
The difficulty of adapting the Entaniya fisheye lens to Fuji cameras almost led me to select Sony cameras instead of Fuji, and I initually used a MFT camera with the lens. If Sony cameras of the time had shutter speed dials and aperture rings, I almost certainly would have gone with their cameras, just to overcome the difficulty of adapting specialized optics to Fujifilm cameras. The only reason I didn't get a Sony camera to dedicate to the Entaniya lens (while using Fuji for almost everything else) was simply because I didn't want to have to learn yet another camera menu system.
4.2.2. Advantages and Disadvantages of Fuji X for Astrophotography:
Advantages that Fujifilm X series cameras (especially the X-T10 and newer models) offer for astrophotography include that they tend to have relatively good performance at high ISO settings. This makes them suitable for imaging dimmer nebulae in the night sky, though the performance will not be as good as some full frame cameras, or a dedicated astronomical camera that has a multi-stage cooler for its image sensor.
The shutter speed dial and focus mode switch are other features that are useful for astrophotography. The dedicated shutter speed dial simplifies selecting shutter speeds shorter than 1 second, but one of the control wheels must be used to select shutter speeds longer than 1 second. The focus mode switch prevents unwanted focus hunting when Auto Focus (AF) lenses are used to image astronomical objects.
The tilting rear screen is useful for framing astronomical subjects. However, a tilting rear screen feature is not unique to Fuji cameras, and it is less effective than a tilting Electronic Eye Level Viewfinder (EVF) for this application, and the EVF in Fujifilm X cameras cannot be tilted. By contrast, some Micro 4/3 cameras such as the Panasonic GX7 do have tilting EVF's, and tilting EVF attachments are available for many Micro 4/3 camera models, as well as for most Leica M digital cameras.
Some of the disadvantages for astrophotography include the afore mentioned lack of a tilting EVF, and the fact that the maximum exposure time is limited to only 30 seconds in some models. Thirty seconds is pretty limiting for a series of subs.
Another disadvantage is that the "Shoot Without Lens" menu item (which is in an obscure location) must be set to "ON" before the camera will even take a picture when attached to a telescope or manual focus lens. If this menu item is not set, the camera won't work at all on a telescope.
Perhaps the biggest drawback is (once again) driven by the relatively closed system architecture. In particular, it is difficult to have anyone remove the Fujifilm image sensor filter stack and replace it with one having more transmission at wavelengths applicable to most nebulae. The same is true of implementing clip-in filters. This is not as much of a problem with Sony cameras because their system is comparatively open.
While on the subject of astrophotography, it is worth noting that most light pollution rejection filters only work effectively when light passes through them perpendicular to their surface, and through a very narrow range of angles that deviate from perpendicular. Many filters are compatible with most telescopes having an f/ratio of f/3 or slower, but are not compatible with shorter focal length camera lenses. The location of the filter is also important, in that a compatible focal length can be shorter if the filter is in front of the lens rather than behind it. This is because light converges behind the lens.
Following are rough estimates are for the shortest compatible lens focal lengths versus f/ratio on Fujifilm APS format cameras, when the light pollution filter is either in front or behind the lens. Different columns of the focal length estimates are based on filters that are made for f/ratios as fast as f/3 and f/4. Moderately shorter focal lengths can be used at the expense of poor filter performance at the edge of the frame.
Focal Length vs Field of View and f/Stop on APS Format for: f/3 filter (18.92 deg rad.) and f/4 (14.25 deg). (Some values derived by: 14.5*1/Tan[9.5-5.9].) MIN. FL MIN. FL MIN. FL MIN. FL f/STOP FRONT f/3 FRONT f/4 REAR f/3 REAR f/4 SETTING FILTER: FILTER: FILTER: FILTER: - f/4.0 87mm 116mm 355mm - - f/4.8 87mm 116mm 230mm 639mm - f/5.6 87mm 116mm 188mm 395mm
4.2.2.1 Advantages and Disadvantages of Fuji X for Total Solar Eclipse Imaging:
A total solar eclipse is a rare event that is awe inspiring for most who experience it. On average, a total solar eclipse is only observable from a specific location on earth once every several hundred years. However, a total eclipse usually occurs somewhere on earth every year or two.
Some people spend thousands of dollars every couple of years to travel to any total solar eclipse they can get to. In many cases, such people may buy camera equipment specifically for photographing a total solar eclipse. This is why I first acquired a Fujifilm X camera, even though I don't often get to travel to eclipses. Obviously, the camera also gets used for everyday photography.
4.2.2.1.1 Advantages of Fuji X for Total Solar Eclipse Imaging:
The tilting rear screen on most Fuji X cameras is useful for framing a solar eclipse that is at a high elevation angle. A tilting rear screen is not unique to Fuji cameras, but the low profile two-way tilt screen on Fujifilm x-T2 and X-T3 is useful when the camera is at or near a vertical format orientation. This is particularly useful with my indexing panoramic platform, since cameras used with it are almost always mounted vertically.
Most Fuji X cameras have features that make them very useful for total eclipses:
A.) Marked shutter speed dial, to quickly cycle through exposure times.
B.) Ability to lock OUT Auto Focus with a SWITCH on the camera (NOT a menu).
C.) Power management can be TURNED OFF, so camera won't turn itself off.
D.) Micro filter layout prevents orthogonal color artifacts around highlights.
E.) Relatively easy to use drive modes, bracketing modes, and interval timer.
F.) Relatively clean high ISO images (also relates other astrophotography).
- Each of these are covered in more detail below.
A.) The marked shutter speed dial provides several eclipse imaging advantages, including:
- Direct reading of shutter speed without looking at a display screen.
- Tactile feedback when cycling through a series of exposure times.
- (Both make it easier to take corona pictures and stitched 360 panoramas.)
B.) Ability to LOCK OUT Auto Focus with an actual SWITCH on the camera:
- Prevents unwanted focus "hunting" as light level dims during an eclipse.
- Ensures that MANUAL focus will NOT be locked out.
- For example: My Olympus E-P3 Micro 4/3 camera made an UNCOMMANDED mode change that LOCKED OUT manual focus on an Olympus 8mm f/1.8 fisheye lens that lacked a manual focus switch, all at a critical time. (Covered more below.) Most Fuji X cameras won't do this.
C.) The ability to TURN OFF Power Management has these advantages:
- Keeps power management from TURNING OFF the camera at a critical time.
- This in turn eliminates the need to handle the camera every few minutes.
- (Note: Power management CAN'T be turned OFF in some Olympus MFT cameras. This led to cameras turning themselves off at an eclipse, at the very time I was distracted with the E-P3 camera and 8mm f/1.8 lens that made the uncommanded focus mode changes noted above.
D.) Micro filter layout on Fujifilm X-Trans image sensors:
- Prevents orthogonal color artifacts that can extend HUNDREDS of pixels from a highlight.
- Large scale artifacts are instead concentric around the highlight.
- Details about Bayer and X-Trans artifacts (with sample images) are in Chapter 3.
The sample images from cameras with conventional Bayer filter arrays and the Fuji X-Trans image sensor (in Chapter 3) were taken specifically to evaluate performance in imaging a total solar eclipse. The images show the different types of color artifacts that occur around highlights with both conventional Bayer micro filter arrays and with Fuji X image sensors.
- A highlight does not have to be as extreme as the overexposed moon to reveal color artifacts. I used the heavily overexposed moon pictures for two reasons:
- The degree of highlight glare is similar to that of the "Diamond Ring" effect that occurs at the beginning and end of the total phase of a solar eclipse.
- The degree to which earthshine can be seen on the moon in the test picture provides some idea about if a given camera and lens (or telescope) combination is capable of cleanly imaging earthshine on the moon during a total solar eclipse.
E.) Relatively easy to use drive modes, bracketing modes, and interval timer.
The built-in interval timer of most Fujifilm X cameras is easy to set up and use. This greatly simplifies capturing a sequence of the partial phases of a solar eclipse without being distracted.
- The drive modes and bracketing modes are all accessible via the mode dial on the top of most Fuji X camera models.
- The bracketing mode can be set up ahead of time and used to take a limited range of exposures for a stacked corona image.
- Drive modes are also instantly available at the mode dial. This also simplifies setting up for to photograph a solar transit by the ISS, which is an event that lasts under a second!
- Some camera models also have HDR.
F.) Relatively clean high ISO images and video.
Good high ISO performance provides many advantages for eclipse photography:
- Shorter exposure can image the outer corona (less blur if not tracking)
- Dimmer subjects can be imaged in video (can capture more outer corona)
- Good landscape video in dim light at slower f/ratio (can use f/2.8 lens vs f/1.8)
- Useful for other astrophotography, so fewer cameras needed on an expedition.
- Better high ISO performance than MFT cameras I tried, but not as good as full frame.
Real world situations where high ISO performance is helpful at an eclipse:
During totality, capturing the full visible extent of the outer corona may require an ISO 100 exposure of at least 3 seconds at f/5.6. Clearly capturing earthshine on the moon during totality (when desired) may require even more exposure.
- For a sharp corona image, it is unlikely that an f/ratio faster than f/5.6 will be practical.
- Also, visible blurring of the corona image usually results from exposures longer than about half a second, at least if tracking is not used.
- Further, exposures must be shortened to 1/15 second or less to clearly image the corona from a plane or a ship. Good high ISO performance is important for good corona images these situations.
Likewise, the ambient light level during totality is often dim enough that an ISO 100 exposure of up to 1 or 2 seconds at f/4 is needed for wide angle images of the eclipse site, the lunar umbra, and sunset colors around the horizon during totality.
- Good high ISO performance will make it possible to hand hold wide angle eclipse images when traveling too light to bring a tripod.
High ISO performance is also important for capturing good video during totality.
- In the case of wide angle video that captures the eclipse and a good part of the horizon at once, higher ISO performance makes it possible to use a slower f/ratio lens. For example:
-- For the 2017 total solar eclipse, I acquired an f/1.8 fisheye lens (not cheap) to help overcome the mediocre high ISO performance of my existing Micro 4/3 camera. (But this did not work out well because the f/1.8 lens lacked an AF/MF switch.)
-- The superior high ISO performance of a Fujifilm X camera makes it practical to use an easier to find (and cheaper) f/2.8 fisheye lens for video - and still get a cleaner video image than what is possible from a Micro 4/3 camera of the same age with an f/1.8 lens.
Real World Example of Why the Fujifilm Focus Mode SWITCH is Important:
The focus mode switch on most Fujifilm X cameras was a major reason I got into the Fujifilm system and started to get out of Micro 4/3. The last straw for me with Micro 4/3 happened in Idaho at the total solar eclipse of 21 August 2017. For that eclipse, I had acquired an (expensive) Olympus 8mm f/1.8 Pro series fisheye lens, specifically for taking wide angle video of the total eclipse over the local horizon.
The Olympus 8mm f/1.8 fisheye lens was the only sharp high speed fisheye lens available for Micro 4/3 at the time, with the slower 7.5mm f/3.5 Samyang / Rokinon lens being the only viable alternative. Because the dim ambient light during totality was expected to require an ISO 100 exposure of at least 1 second at f/4 to get a reasonably good still image, I needed f/1.8 to overcome the relatively poor video performance of Micro 4/3 cameras at high ISO settings. But unlike other Olympus Pro lenses, the 8mm lacked a manual focus switch, so I had to rely on camera menu settings to lock out auto focus. This would prove to be far less reliable than the focus mode switch on a Fuji X camera. (But I did not have a Fuji X camera at that time.)
Lack of a focus mode switch on the Olympus 8mm f/1.8 fisheye lens, combined with a previously undiscovered menu setting instability in the Olympus E-P3 camera, proved to be disasterous. At a critical time, the Olympus E-P3 camera made uncommanded changes to its menu settings that overrode my focus mode settings when it was switched out of "iAuto" mode, then back into iAuto mode.
The E-P3 camera then unilaterally put itself and the lens into "S-AF" mode, which completely locked out the manual focus I needed, and the camera instead went out of the precise focus I had manually set and started continuously hunting for focus, all with less than 3 minutes to go before the short lived (2 minute duration) total phase of the eclipse! A rock would have been more useful than that setup.
Needless to say, there were no results at all from this E-P3 camera and 8mm lens, and precious seconds lost fiddling (in vain) with the camera led to my falling behind on my entire multi-camera eclipse imaging procedure. Later tests showed that this focus mode change problem was probably common all Olympus E-P3 Micro 4/3 cameras (3 out of 3 tested). Another shortcoming of the E-P3 camera is that power management cannot be turned off, so there is no way to keep the camera from turning itself off, even at a critical time (this happened too!)
The lack of a manual focus switch on the Olympus 8mm f/1.8 Fisheye lens also proved to be a problem with other MFT cameras. For example, even when the focus mode switch on my Panasonic GX7 was set to manual focus during a test for a future eclipse, the 8mm lens still hunted for focus in dim light. Therefore, I had to go back to the slower Samyang 7.5mm f/3.5 lens for Micro 4/3 eclipse video.
The manual focus setting on the focus mode switch of Fujifilm cameras prevents the above uncommanded focus mode change problem (and the associated endless focus hunting in dim light), regardless of whether or not a lens has its own AF/MF switch. And, power management can be turned off in the Fuji X cameras I have used.
However, some newer Fujifilm X cameras (X-S10, for example) do not have a focus mode switch. Eliminating the switch may be a bad idea. A Fuji camera without a focus mode switch, when used with an AF lens that lacks a MF switch (which is most Fuji X mount AF lenses these days) could cause exactly the same uncommanded focus mode change problem I experienced with my Micro 4/3 system in 2017.
If Fuji wants to make the switch on some Fuji cameras less obvious (in order to prevent accidentally changing its position) the switch could be flush with the front of the camera on such models. One implementation could be like the flush meter switch on the bottom of a Minolta SRT-101 film camera, except that this type of flush switch would be located in the same place as the standard Fuji focus mode switch.
4.2.2.1.2 Disadvantages of Fuji X for Total Solar Eclipse Imaging:
Disadvantages of Fuji X cameras in the field of total solar eclipse imaging include the following:
- The EVF cannot be tilted (as it can on the Panasonic GX7 and some other Micro 4/3 cameras and EVF attachments).
- The "Shoot Without Lens" menu item (which is in an obscure location) must be set to "ON" before the camera will even take a picture when attached to a telescope or manual focus lens. If this menu item is not set, the camera won't work at all on a telescope!
- Some newer models do not have a Focus Mode switch.
- In dim light, some Fujinon lenses (such as the 100-400mm zoom) occasionally hunt for focus after changing the zoom setting, even when manual focus settings are selected.
4.2.3 Basic Conclusions:
In conclusion, the main selling points of Fujifilm X system (for me) include the shutter speed dial on the camera, the f-stop ring on the lens, a relatively foolproof switch to turn off auto focus, and other features. More importantly, I make far fewer errors when taking pictures with the Fuji X-T10 or X-T20 than I do with any other brand digital system camera I have used, with the possible exception of the Leica M9 and the old Sony DSC-F707 fixed lens camera that was my very first digital camera. I've used well over 20 different digital camera models at one time or another in the last two decades, but some were harder to use than others.
5. Reviewed Fujifilm X Series Cameras (X-E1, T-T10, X-T20)
5.1 Fujifilm X-E1
The Fujifilm X-E1 camera is an early Fuji X mirrorless camera. It lacks some features found in later models, but due to certain characteristics of its 16 MP image sensor, some users like the look of its images more than the images from later camera models.
The proportions of the X-E1 is reminiscent of a rangefinder camera, except that there is no optical viewfinder in the upper corner. The camera has a fixed color LCD screen on the back, and an eye level electronic viewfinder (EVF) in the upper left corner, as seen from the back. It has a 16 MP image sensor.
Numerous settings and functions, including a level indicator, are visible in either viewfinder, and a built-in pop-up flash is nested just above the EVF. The camera also has a flash shoe.
As viewed from the front, the front of the Fujifilm X-E1 camera has a very simple appearance. A selectable focus assist light at the upper right, the lens mount is near the center (with the lens release button to its lower left), and a focus mode switch that has settings for manual, continuous AF, and single AF modes is toward the lower right. This is a very useful switch because if it is set to manual focus, it keeps the camera from going into auto focus mode, which important for things such as astrophotography and some other applications..
The top of the Fujifilm X-E1 camera, as viewed from behind, includes a pop up flash toward the left, and a flash hot shoe near the center. The right side includes a dedicated shutter speed dial, the shutter release button (with the power switch in a collar surrounding it), a function button that can be assigned to various functions, and a dedicated exposure compensation dial.
As most Fujifilm X cameras, the X-E1 has the afore mentioned shutter speed dial. This makes it possible to manually set the shutter speed without looking at a screen or even turning on the camera. This is a very handy feature, since you can see the shutter speed settings even when the camera is not on, and you don't lose the shutter speed setting when the camera power is cycled. The shutter speed dial has settings for 1/4 second through 1/4000 second. These shutter speed dial sets speeds in full stop intervals, but buttons next to the Menu button on the back can set the shutter speed in 1/3 stop increments.
There is also a "T" (Time Exposure) setting on the dial, which allows setting times shutter speeds of up to 30 seconds duration. An additional "B" (for Bulb) setting makes longer exposures possible when using a conventional mechanical cable release. Lastly, the shutter speed dial has an "A" (for Auto), which puts the camera in a mode where it automatically sets the shutter speed.
The back of the X-E1 includes the EVF at the upper left, with the diopter adjustment on its left side and an eye position sensor on the right. A button to deploy the flash is immediately right of this. Just right of center is a View Mode button for selecting between the back screen, the EVF, or automatic selection of either one. Toward the upper right are a function dial that can be used to magnify focus or manually set the f/stop (on lenses lacking f-stop rings), a combined AE-L (Auto Exposure Lock) and AF-L (Auto Focus Lock) button, and a "Q" button for the Quick Menu.
The lower left of the back has an image display (play) button, a drive mode button (there is no drive mode dial), an AE button (used to select the area metered for auto exposure), and an AF button that is used (in conjunction with buttons surrounding the menu button) to set the focus point or area location in the frame. The rest of the left and center of the camera back is occupied by the fixed, non-tiltable, rear display screen. Toward the lower right are the Menu button (which is surrounded by four function buttons, one of which is assignable), and a Display/Back button.
The shutter release side of the camera has only a neck strap lug, but the other side has the other another neck strap lug and a small door that covers a 2.5mm assignable Microphone/Remote jack, a mini HDMI connector, and a mini USB connector.
The bottom of the X-E1 camera (on the shutter release side) has a door that covers the battery compartment and a single SD card slot. A metal 1/4-20 thread tripod socket is close to the center, but it is a little too close to the battery door for my taste. The tripod mount also is not centered under the lens mount.
The X-E1 provides ISO settings all the way up to ISO 25,600, but most of the high end is not all that useful. The best images are at ISO 200 or lower, while ISO 400 can still provide extremely good images. Reasonably good images are possible through ISO 800. Acceptable images are possible in some situations at ISO 1600 (as long as the images are not enlarged too much), but that's about the limit for decent images.
The built-in flash of the X-E1 is adequate for pictures of up to 5 or 6 people with the slow f/3.5 f/ratio of most Fujifilm wide to normal kit zoom lenses, but the flash is not strong enough to adequately illuminate a room much larger than a typical bedroom. A separate flash (or a faster lens) is needed for good flash pictures of larger rooms or larger indoor groups of people. The optional compact Fujifilm EF-20 flash unit doubles the flash range in comparison to the camera's flash, making it possible to adequately illuminate a typical living room.
Movie modes of the X-E1 are very basic by recent standards. Available modes are 720P (1280 x 720) and 1080P (1920 x 1080) full HD (with sound), but both are only at 24 frames per second (FPS). The X-E1 has about the same video limitations as the Leica M Typ 240 from a similar era, which also topped out at only 24 FPS for full HD.
5.2 Fujifilm X-T10
The Fujifilm X-T10 camera is the first camera in the X-Tx0 camera series. It is shaped like a small SLR camera that is a little reminiscent of the 1970's Fujica ST-801 film camera. It is considerably smaller and lighter than any 35mm SLR film camera, yet still manages to provide enough area to firmly grip the camera. Accessory grips are available for people with relatively large hands.
The X-T10 has two types of electronic viewfinder. One is the rear screen, which is normally flat against the back of the camera, but which can be tilted up 90 degrees (for taking pictures at low angles) or down 45 degrees (for seeing the picture area when holding the camera up high.)
The other viewfinder is an Eye Level Electronic Viewfinder (EVF) that is viewed through a magnifying lens in the back of the camera, in much the same way as looking into an SLR viewfinder. The camera has a switch to select between either viewfinder always being on, or using an eye sensor to automatically select which viewfinder display is turned on.
Numerous settings and functions, including a level indicator, are visible in either viewfinder, and a built-in pop-up flash is nested just above the EVF. The camera also has a flash shoe.
As viewed from the front, the front of the Fujifilm X-T10 camera has a function dial (which can be both pressed and spun) on the upper left, and a selectable focus assist light just to its right. The lens mount is near the center, and the lens release button to its lower left. A focus mode switch that has settings for manual, continuous AF, and single AF modes, is toward the lower right. This is a very useful switch because if it is set to manual focus, it keeps the camera from going into auto focus, and this is important for astrophotography and some other applications.
The top of the Fujifilm X-T10 camera, as viewed from behind, includes a mode dial and a lever to deploy the built-in flash on the left. A hot flash shoe is in the center. The right side includes a dedicated shutter speed dial, a manual / auto selector switch, the shutter release button (with the power switch in a collar surrounding it), a movie button (also assignable to other functions) and a dedicated exposure compensation dial.
As most other Fujifilm X cameras, the X-T10 has a dedicated shutter speed dial. This makes it possible to manually set the shutter speed without looking at a screen or even turning on the camera. This is an extremely handy feature, since you can see the shutter speed setting even when the camera is not on, and the shutter speed setting is not lost when the camera power is cycled. The shutter speed dial has settings for 1 second through 1/4000 second. These are all in full stop intervals except for the 1/180 second maximum X-synch speed for using flash.
There is also a "T" (Time Exposure) setting on the dial, which allows setting times shutter speeds of up to 30 seconds duration. An additional "B" (for Bulb) setting makes longer exposures possible when using a conventional mechanical cable release. Lastly, the shutter speed dial has an "A" (for Auto), which puts the camera in a mode where it automatically sets the shutter speed.
The manual / auto selector switch is the only switch or setting that has the authority to override the focus mode select switch on the front of the camera. It is a useful switch, because if you are using the camera in manual mode, but want someone unfamiliar with cameras to take a picture, all you have to do is flick the switch to auto and everything is on auto for them. As soon as they take a picture, flicking the switch back to manual puts the camera back into manual mode.
The back of the X-T10 includes an image delete button at the extreme upper left. An image play button (to view captured images or video) is immediately to its right. Closer to the top center is a diopter adjustment for the EVF, the EVF eyepiece, and a display selector button. Toward the upper right are an AE (Auto Exposure) Lock button, the rear function dial, and an AF (Auto Focus) enable and lock button. The lower left and center of the camera are occupied by the rear display screen. Toward the lower right are the Quick Menu button, the Menu button (which is surrounded by four extremely handy assignable function buttons), a Display/Back button, and an additional assignable function button.
The shutter release side of the camera has only a neck strap lug, but the other side has the other neck strap lug and a small door that covers a 2.5mm assignable Microphone/Remote jack, a mini HDMI connector, and a mini USB connector.
The bottom of the camera has a door that covers the battery compartment and a single SD card slot. A metal 1/4-20 thread tripod socket is closer to the center, but it is a little too close to the battery door for my taste. The tripod mount also is not even close to being centered under the lens mount.
The Fujifilm X-T10 has two function dials (one on front, one in back) and several function buttons, including four function buttons that surround the menu button on the back. This provides enough assignable function buttons to make several useful settings available with the push of a single button. The functions I set up are:
- ISO (top of the 4 buttons)
- Film Simulation (or sometimes Exposure and DOF preview) on left button.
- Shutter Type (Mechanical, Electronic, Both) on the right button.
- Focus Point Select (changes four D-pad buttons to focus point select) on bottom.
- Self Timer on the lower right corner button.
The X-T10 provides ISO settings all the way up to ISO 51,200, but most of the high end is not all that useful. The best images are at ISO 200 or lower, while ISO 400 provides extremely good images, and reasonably good images are possible through ISO 800 to 1600. Acceptable images are possible at ISO 3200. If the images are not enlarged much, ISO 6400 can work OK as a last resort.
The built-in flash of the X-T10 is adequate for pictures of up to 5 or 6 people with the slow f/3.5 f/ratio of most Fujifilm wide to normal kit zoom lenses, but the flash is not strong enough to adequately illuminate a room much larger than a typical bedroom. A separate flash (or a faster lens) is needed for good flash pictures of larger rooms or larger indoor groups of people. The optional compact Fujifilm EF-20 flash unit doubles the flash range in comparison to the camera's flash, making it possible to adequately illuminate a typical living room.
The X-T10 can capture video clips of up to 27 minutes duration in 720P or 1080p full HD, both with stereo sound. Available video resolution and frame rates include 720p (1280 x 720) and full HD (1920 x 1080), each at 24, 25, 30,50, and 60 FPS.
5.3 Fujifim X-T20
The Fujifilm X-T20 has a higher resolution 24 MP image sensor than the 16 MP sensor of the X- T10. Operation of the X-T20 is very similar to the X-T10, though there are a few differences.
One of the biggest differences in the X-T20 user interface is the addition of a Movie Mode to the mode dial on top of the camera. This is a significant improvement over the X-T10 because it provides more confidence that settings changed for movie mode will apply only to movie mode and will not inadvertently change the settings for still images. In addition, the X-T20 movie mode makes it possible to start a movie with the main shutter release on the camera, rather than the nearby small and comparatively hard to reach function button.
The X-T20 does not have the extra rear function button that was at the extreme lower right on the X-T10, but the X-T20 partly makes up for this by being able to use the top function button (the one that was the video button on the X-T10) for an assignable function without losing movie mode.
Another significant difference between the X-T10 and X-T20 is that the X-T20 has a touch screen. The touch screen provides an alternative way to access numerous features, as well as being able to select focus points or swipe the screen (as on a smart phone) to view different captured images. I can't comment on the response or effectiveness of the touch screen, since tremor often makes it hard for me to use almost any touch screen.
The X-T20 provides ISO settings all the way up to ISO 51,200, but the extremes of the high end are not all that useful. The best images are at ISO 200 or lower, while ISO 400 to 800 provide extremely good images, and reasonably good images are possible through ISO 3200 to 6400. Acceptable images are possible in some situations at ISO 12,800 (if the image is not cropped or enlarged much), but that's about the limit.
The built-in flash of the X-T20 is adequate for pictures of up to 5 or 6 people with the slow f/3.5 f/ratio of most Fujifilm wide to normal kit zoom lenses, but the flash is not strong enough to adequately illuminate a room much larger than a typical bedroom. A separate flash (or a faster lens) is needed for good flash pictures of larger rooms or larger indoor groups of people. The optional compact Fujifilm EF-20 flash unit doubles the flash range in comparison to the camera's flash, making it possible to adequately illuminate a typical living room.
The X-T20 can capture video clips of up to 15 minutes duration at 720P or 1080P full HD, but only 10 minute clips at 4k. All have stereo sound. Available video resolution and frame rates include 720p (1280 x 720) and full HD (1920 x 1080), each at 23.98, 24, 25, 29.97,50, and 59.94 frames per second (FPS), all as progressive scan (P).
4K video is available at 23.97, 24, 25, and 29.98 FPS, all also as progressive scan (P). 4K video is captured by reading out only some lines on the image sensor (e.g. line skipping) as opposed to reading out the entire sensor and scaling it down for 4K video. This is presumably to achieve 4k video with the limited processing power that was available in a budget camera from this era.
Most other features of the X-T20 camera are like or similar to the X-T10, which is reviewed above in more detail.
5.4 Fujifilm X-T30
The Fujifim X-T30 is not actually reviewed here, but it is mentioned in order to indicate why I did NOT buy an X-T30, and (even in 2021) got the older X-T20 instead.
The X-T30 camera has a slightly higher pixel count than earlier X-T20 (26 MP in the X-T30 rather than the 24 MP of the X-T20), and it can take 4k video that captures the image from the full sensor and scales it down to 4k. The older X-T20 performs line skipping for its 4k video, where some lines of the sensor are not read out at all in order to make 4k possible with the somewhat older in-camera video processing capacity.
However, the X-T30 eliminated the four function buttons that surround the menu button on the X-T20, and this reduces the total number of assignable function buttons by more than half. Also, the Quick Menu button was moved to the thumb rest where it can be accidentally pressed, potentially leading to missed pictures. These changes make using the X-T30 relatively cumbersome.
By way of comparison, the X-T20 has enough assignable function buttons to make all of these settings available by pushing a single button:
- ISO
- Film Simulation (or sometimes Exposure and DOF preview)
- Shutter Type (Mechanical, Electronic, Both)
- Focus Point Select (changes four D-pad buttons to focus point select)
- Self Timer (using function button near shutter release)
On the X-T30, there is only a joystick that moves the focus point selection around on the screen. There is no way to toggle the joystick function to make it work for selecting functions. This means that it is necessary to enter the menu to change four out of the five settings shown above that can be set with function buttons on the X-T20.
As a result, I bought a used X-T20 rather than a new X-T30. It is hoped that if an X-T40 is released (it never was), it will restore the function buttons around the menu button, and move the Q Menu button back off of the thumb grip. If later models lack the function buttons of the X-T20, I'll just keep using the X-T20.
5.4 Fujifilm X-T50
In 2024, Fujifilm introduced the X-T50. They apparently skipped introducing an X-T40, and instead went straight to the X-T50. For my purposes, the X-T50 appears to be a step backward from even the X-T30, in that the mode dial has been replaced with a film simulation dial. It retains many of the button positions (and relative lack of function buttons) as the X-T30. So it looks like I'll continue to stick with the X-T20.
6. Overview of Fujifilm X Lenses, Standard & Modified Fujifilm Accessories.
Numerous lenses and accessoiries are available for the Fujifilm X system. As of early 2025, the Fujifilm X system includes a good selection of lenses that range from 8mm to 600mm focal length, not counting the longer focal lengths provided via the Fujinon 1.4x and 2x tele-converters. Some of these are reviewed in Chapter 11. Newer lenses include the 8mm f/3.5 (2023), the 500mm f/5.6 (2024), and the 16-50mm f/2.8-4.8 (2024).
Gaps in Available Fuji X Prime Lens Focal Lengths:
There are still a few gaps in the available range of Fuji X prime lenses. For example, Fuji does not currently make any prime lenses between 35mm and 50mm focal length (53mm to 75mm full frame equivalent). Here, a fast (f/2 or faster) but compact prime lens in the 40-43mm focal length range (60 to 65mm full frame equivalent; a good focal length for half to 3/4 length portraits) would be useful. For now, I use a compact Leica M mount 40mm f/1.4 manual focus Voigtlander Nokton lens with an adapter. A Fujinon 40-43mm f/1.4 lens in the same series as their high performance 18, 23, and 33mm f/1.4 lenses (but with larger rear lens element groups) would be a welcome addition to the system.
Another gap is between 60mm and 80 or 90mm. In reality, this gap is larger than it may seem because the Fuji 80mm and 90mm lenses are quite large and heavy. Here, a compact f/2 (or faster) prime lens in the 70mm range would be useful, but because the 60mm f/2.4 is relatively close to this, a 70mm lens would be less important than a 40 to 43mm lens. Another useful lens would be a compact 110 to 135mm prime that is f/3.4 or faster, and that is sharp enough wide open to work for astrophotography. For now, the Leica M 135mm f/3.4 APO lens can fill this gap, though it is expensive. If the optics in the Voigtlander 110mm f/2.5 APO-Lanthar lens could be packaged in a compact barrel, it may be a good addition.
Third Party Lenses for Fujifilm X Fill Some Gaps:
A further gap in the Fujifilm X lens lineup is in the realm of a sharp and reasonably compact long range zoom lens. Fuji makes an 18-135mm zoom, but it is large and is not very sharp. The Tamron 18-300mm lens is a good addition, but it is not parfocal (meaning that focus changes as it is zoomed), reducing its usefulness for video. Good additions in this area would include wide range zoom lenses that can maintain focus in real time as they are zoomed. The newer (introduced in 2025) Sigma 16-300mm f/3.5-6.7 has not been tested to see if it is a true zoom (rather than varifocal) lens.
Other useful lenses would include a long range zoom that covers all the way from 13 or 14mm up to at least 100mm. Another would be an 18 to 200mm that is about the same size as the compact 18-200mm lens that Tamron made for other cameras, but not (yet) for Fuji. Such an 18-200 would be more portable than the Tamron 18-300mm.
In recent years, the Fujifilm ecosystem has been expanded to include several brands of third party lenses. Third party AD and MF lenses include those by Samyang, Tamron, Viltrox, Brightin Star, Laowa, 7Artisans, TTArtisan, and Voigtlander, to name a few. Lenses from these companies that I would like to see made for Fujifilm (but that are not yet available in Fuji X mount) include the Samyang 45mm f/1.8 and the 7Artisans 50mm f/1.05. Also, the shallow (less than 20mm) distance between the Fuji X lens mount and the focal plane makes it possible to adapt many third party manual focus lenses (including Leica M lenses) to Fuji X, yet still retain infinity focus capability. Lens adapters are discussed in Chapter 7.
Smaller Filter Sizes:
Some Fuji X lenses accept relatively small filters, while others may require 72mm or larger filters. A number of lenses in the Fuji X system use relatively portable 52mm filters, and some lenses having larger filter sizes can be used with 52mm filters (without vignetting) via step down rings. This is an "off label" way to use filters on Fuji X lenses, but it works in practice with some of them without causing vignetting, especially with the 50-230mm lens. This makes it possible to use a single modest filter size with a wide range of lens focal lengths. For example:
The Fuji 18mm f/2 pancake lens has a 52mm filter thread, as does the 15-45mm f/3.5-5.6 kit zoom lens. The older 16-50mm f/3.5-5.6 and 50-230mm f/4.5-6.7 zoom lenses both have 58mm fiter threads, but 52mm filters can be used in conjunction with a step-down ring on either one, especially the latter. This makes it possible to use 52mm filters with a full range of focal lengths between 15mm and 230mm, as well as on some fast f-ratio lenses within the same range. Most of the time, I prefer to use lenses having an outside diameter that is small enough to use with the X-T10 or X-T20 when the combination is on a large tripod head. The 18mm f/2 and the 60mm f/2.4 Macro are about the largest diameter lenses that will work in this way. These have an outer diameter of about 65mm.
Other Accessories, Custom Accessories, and "Off Label" Uses for Accessories:
Other accessories for Fuji X include third party angle brackets, quick release plates, and more. It is hoped that an internal filter modification to improve astrophotography performance will be offered by a competent third party at some point. But for now, this is rare. Accessories for lenses include cases, filters, lens hoods, rubber skins to protect or change the finish of lenses, and quick release tripod mounts.
Sometimes, using an existing accessory for an "off label" purpose will provide useful results. One example of this is where I used the metal Fujifilm lens hood from the Fuji 35mm f/1.4 lens on the Fujifilm 60mm f/2.4 Macro lens. Using this hood on the 60mm provides some degree of shading for the lens elements (and protection for the protruding lens barrel) without taking up as much space as the standard 60mm hood. This and other non-standard uses of existing accessories can increase portability of the Fuji X system.
Most people will use commercially available accessories, but home made accessories (or home made modifications to existing accessories) can also be effective. A few of these are discussed below. Most of the home made or modified accessories relate to lens adapters, lens hoods, and tripod mounts.
6A. Custom Low Profile Lens Hood for Fujinon 18mm f/2 and Rokonon 12mm f/2 Lenses.
At the time I got into the Fujifilm system, the 18mm f/2 lens was the shortest lens available (in terms of physical length) that included an aperture ring. (The version of the 27mm f/2.8 that included an aperture ring had not yet come out.) I wanted to carry an X-T10 camera and this lens arouund in a "nerd pack" I usually had with me, but the standard hood was too long to be practical in this context. The solution was to make a small, custom hood that only adds about 4mm to the length of the lens.
The custom 18mm f/2 hood consists of a metal 52mm to 30.5mm "step down" filter adapter, onto which I attached a thin piece of black fiberboard with a 25mm x 18mm rectangular cutout in the center. This provides some shading of the front element, without causing vignetting, and with almost no penalty in size and weight. I also made a similar low profile hood (but with a larger rectangular opening) for the 12mm f/2 Rokonon lens. I further use a plain 58 to 52mm step down ring as a shallow hood on the Fujinon 33mm f/1.4 lens.
In addition, I use a deep 52mm collapsible rubber lens hood on the Fuji 50-230mm lens to increase its portability. Even though the 50-230mm takes 58mm filters, the adapted 52mm hood does not cause any vignetting. A custom compact hood for the Fuji 100-400mm lens has been designed but not yet built.
6B. Custom Compact Custom Tripod Mount for Fujinon 100-400mm Zoom Lens.
The Fujifilm 100-400mm f/4.5-5.6 lens is relatively large and heavy, but its images are good enough that the size and weight are acceptable. Unfortunately, the standard tripod mount makes this lens considerably larger. So large in fact that it is difficult for the lens to fit in a reasonably sized gadget bag or lens case. With the tripod mount attached, the 100-400mm lens won't even fit a huge 5" diameter and 11" long case such as that for the 300mm f/4 ED Nikkor lens. But it will fit such a case without the tripod mount. This is important, because if the lens case is too large, the lens may not be used as much. A custom compact tripod mount was the solution.
Fortunately, a third party manufacturer makes a tripod mount for the Fuji 100-400mm lens. This third party mount uses an Arca plate instead of a conventional tripod mount foot, and the Arca plate is attached with two Allen screws. The third party tripod mount is also large, but at least it can be used as a starting point for a more compact custom mount. To make the low profile tripod adapter, the part that attaches to the lens was shortened to be only about 1 cm tall, and two new holes were drilled and tapped into the modified tripod adapter to accept either the existing Arca foot plate or a custom low profile tripod mounting foot.
The Arca foot plate that came with the tripod mount can be attached to the shortened tripod mount, but I wanted the tripod mount to be even smaller, so I used a piece of 1/4" by 1.25" aluminum to make a custom low profile tripod foot. Part of the custom aluminum foot extends slightly behind the part of the tripod adapter that attaches to the lens, and this rear part can be used to attach a finger loop or neck strap, for more secure handing of the lens. The custom low profile tripod mount has the added bonus of providing a smooth surface to support the lens when hand holding it. The zoom and focus controls can easily be reached when the lens is hand held in this way.
Even better, the 100-400mm zoom, with the custom compact tripod mount attached, will fit in a modified Tokina case that is only 4.5" in diameter and just under 10" long. This case will fit in a clear plastic file box with the rest of the Fuji system. (I use a walker, so I keep the camera system in a plastic file box that can ride on the walker seat.) Also, the lens feels more stable on a medium size tripod when the custom low profile tripod mount is used instead of the standard one.
6C. Compact Customized System Case for Fujifilm Camera and Eight Lenses:
After using Micro 4/3 and Leica M cameras, I became accustomed to compact camera systems. When I got into Fujifilm, it took some searching to find a way to keep the system to a reasonable physical size, yet still have a good range of focal lengths and include least one fast (f/1.4) lens. To keep the system size and weight down, some lenses (such as the 50-230mm f/4.5-6.7 zoom) had to have reltively slow f/ratios. Dounle ended rear lens caps were an important part of making the system work, since this makes it easier to get to the bottom lens in a stack of two lenses.
Finding a suitable case was another challenge, but once one was found, it was a good match. The case used is a vintage Diamond Eldorado EL-2 rigid gadget bag. Its size is only about 11 x 10 x 6.5 inches. Custom dividers were made from cardboard, then covered with cloth. The contents of the case, and locations of the dividers, are shown or otherwise indicated in the drawing below, then listed under it.
![]() |

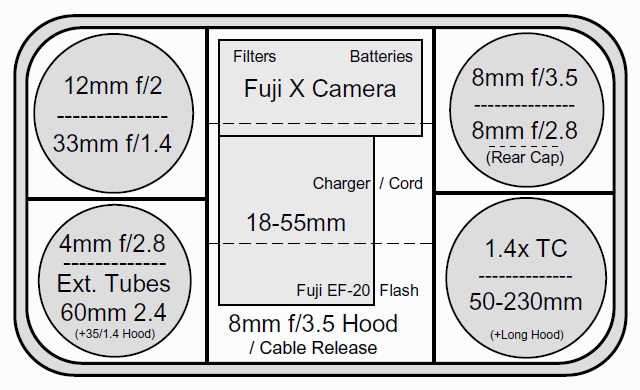

Arrangement of Fujifilm camera system in a customized vintage Diamond Eldorado EL-2 rigid case that accommodates a camera, 8 lenses, and several other accessories. I originally made this diagram to keep in the case, in the event I lost track of which lenses go where. This compact lens layout requires the use of four double-ended rear lens caps, which (as of 2025) apparently are not made anymore. Contents of this case includes the following: - Fujifilm X-T20 Camera - 18-55mm f/2.8-4 Fujinon Zoom Lens with UV Filter (usually kept on the camera) - 4mm f/2.8 7Artisans Circular Fisheye Lens (225 Degree FOV) - 8mm f/2.8 Samyang Fisheye Lens - 8mm f/3.5 Fujinon Rectilinear Lens with B+W UV Filter and Hood (hood is stored detached) - 12mm f/2.0 Rokinon Fisheye Lens with UV Filter - 33mm f/1.4 Fujinon Lens with B+W UV Filter and 52mm Filter Adapter and Custom Short Hood - 60mm f/2.4 Fujinon Macro Lens with B+W UV Filter and Hood from 35mm f/1.4 Lens - 50-230mm f/4.5-6.7 Fujinon Zoom Lens with Compact Collapsible 52mm Hood - Fujinon 1.4x Tele-comverter (to use with 100-400 zoom lens, telescope, etc.) - Fujifilm MCEX-11 Extension Tune (stacked with 60mm lens) - Fujifilm MCEX-16 Extension Tube (stacked with 60mm lens) - Fujifilm EF-20 Flash Unit (stored under the camera) - Hoya 52mm Red Enhance Starscape Filter (under the camera) - Glass 52mm Solar Filter (under the camera) - Cable Release (under or in front of the camera) - Fujifilm Battery Charger with Short Cord and Figure 8 AC Adapter Plug - Two Spare Fujifilm Camera Batteries - Two Spare AA Batteries (for flash unit) - Caps for All Lenses (double ended caps used for most rear caps) - Spare Fuji X Rear Cap. The above Fujifilm camera system is also used with a 100-400mm f/4.5-5.6 Fujinon zoom lens that is kept in a separate case. In addition, other lenses can be substituted for those listed above. For example, a pancake lens can be substituted for the 1.4x teleconverter, and a Leica M mount Voigtlander 40mm f/1.4 Nokton Classic lens (with a Fuji X adapter) can be substituted for one of the other lenses. All of these items, plus the smaller Fuji system below, are all kept in a plastic file box that can ride on the seat of my 4-wheel walker (a Drive Medical 795B rollator) when the equipment is used very far from home. The camera in this system is also occasionally used with a telescope. |
The rest of this subsection is in work (will eventually include photos).
The rest of this section is under construction.
6D. More Compact System Case for Fujifilm Camera and Three Lenses:
A smaller vintage case is used for this three-lens Fujifilm camera system. The case is one that I already had for one of my older film cameras. It has no brand name that I could find, but it has a layout similar to that of the versatile semi-rigid Kiwi "CB-700 Zoom" camera case from the mid 1980's, except that it is smaller and the outside is faux leather instead of Curdura.
The flat layout of the case makes it easy to get to each item without having to move other items. One thing that has been very useful is a simple "Figure 8" AC plug for the charger, since this is smaller than the original cord. Contents of the case are shown in the drawing below, then listed under it.
![]() |

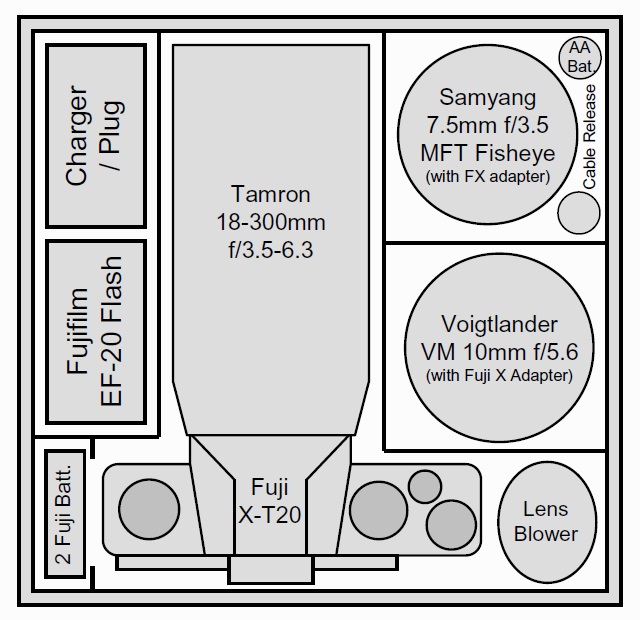

Arrangement of a Fujifilm camera system in a smaller case that accommodates the camera, theee lenses, and a few other accessories. Contents of the case include the following: - Fujifilm X-T20 Camera - Tamron 18-300mm f/3.5-6.3 Zoom Lens (on the camera) - Voigtlander 10mm f/5.6 Leica M Mount Rectilinear Lens, with Fuji FX Adapter - Customized Samyang/Bower 7.5mm MFT Fisheye Lens with RAF MFT to FX Adapter - Fujifilm EF-20 flash unit - Cable Release - Fujifilm Battery Charger with Figure 8 AC Adapter Plug - Two extra Fujifilm Camera Batteries - Two extra AA Batteries (for flash unit) - Lens Blower - Caps for all lenses. The adapted Samyang 7.5mm fisheye lens has been modified to remove the short lens hood petals on either side. This, combined with the smaller 22.5mm image circle of the lens, provides a 180 degree view across the image frame, making it possible to capture full 360 degree spherical VR image from four photos. A Sigma 10-18mm f/2.8 lens was later substituted for the Voigtlander 10mm f/5.6 lens in this system. (Both lenses are about the same size.) |
The rest of this subsection is in work (will eventually include photos).
The rest of this section is under construction.
7. Adapting Third Party Manual Focus Lenses to Fujifilm X Cameras
The Fujifilm X system includes a reasonably wide array of Fujinon lenses. However, there are a few gaps in the system that are not adequately covered by Fujinon lenses. In these situations, third party lenses are the only option. Some third party lenses are available in Fuji X mount, while others are not.
Gaps in the Fujinon X-Mount Lens System
As of when this web page was first written, one gap in the Fuji X lens system is that Fujifilm did not offer compact and extremely wide angle prime lenses. The only Fujinon brand options for focal lengths under 14mm (21mm full frame equivalent) were the somewhat large and bulky Fuji X wide angle zoom lenses. These were limited to the 8-16mm f/2.8 and the 10-24mm f/4. Both of these zooms have a rectilinear projection. Fujifilm does not offer any XF mount fisheye lenses as of when this is written, but the Samyang 8mm f/2.8 fisheye lens fills this gap.
Fortunately, Fujifilm later came out with the relatively compact 8mm f/3.5 WR, an ultra wide angle rectilinear prime lens (12mm full frame equivalent) that takes 62mm filters. This lens is fairly sharp in all areas except the extreme corners. Its vignetting is also reduced by only stopping down about 2/3 of a stop, to f/4.5. Optimum full format sharpness is achieved between f/5.6 and f/7.1. The 8mm f/3.5 lens lacks a manual focus switch, so I won't even try to use it for critical events on a Fujifilm body that lacks a manual focus switch. (I got burned on the Olympus Micro 4/3 system in 2017, when the 8mm f/1.8 Olympus fisheye lens (which lacks a MF switch) started huting for focus as the light dimmed during a total solar eclipse, even though the camera menu had been set to MF.)
In 2024, Sigma introduced a 10-18mm f/2.8 lens that covers a good range of desirable wide angle focal lengths. This lens has relatively good performance, and its relatively small size is comparable to that of the 12mm f/2 Samyang lens.
Other system gaps include compact prime lenses in the 40mm range, compact lenses longer than 60mm focal length, and reasonably priced options for focal lengths longer than 300mm.
Using Other Lenses via Adapters
Some lenses that are not natively Fuji X mount can be used via adapters, as long as certain precautions are observed. Some of the most important precautions include ensuring that an adapted lens does not have any elements or components that obstruct or mechanically or electrically interfere with contact pins inside the camera lens mount, and that no part of an adapted lens or adapter is close enough to the focal plane that it can interfere with the Fujifilm camera shutter.
Lens Adaptation Precautions and Solutions
One of the best ways to ensure that a lens will not mechanically or electrically interfere with a Fuji X camera is to adapt it to Fuji X in a way that ONLY uses the Fujifilm brand Leica M to Fuji X lens adapter, and to AVOID using any lens that protrudes behind the back surface of this adapter.
Using only the Fujifilm brand Leica M to Fujifilm X adapter ensures that a lens will not interfere with the Fuji X contact pins because the adapter has a 30mm diameter center hole that will prevent mounting any lens that could otherwise interfere with the contact pins.
As far as avoiding interference with the camera shutter, it is allowable for a lens to protrude a couple of millimeters behind the Fujifilm brand Leica M adapter. However, because it is not possible to directly observe if a lens will interfere with the camera shutter, the best option for most users is to use the back surface of the adapter as the go or no-go limit for which lenses are adapted.
An added bonus of the Fujifilm Leica M lens adapter is that it has a handy button that brings up the camera sub-menu for selecting the lens focal length. The adapter can communicate with the camera because it has contacts like those on the back of Fujifilm lenses.
Using the Fujifilm Leica M lens to Fuji X adapter means that a stack of two adapters may be needed to adapt certain lenses to Fuji X. For example, when adapting a Nikon F lens, a Nikon F to Leica M adapter would be used, and this adapter would in turn be mounted onto the Fujifilm brand Leica M to Fujifilm adapter. Direct NF to XF lens adapters can be also used in this case, but only if precautions (like those below) are taken.
Risks of Adapting Lenses that Do Not Conform to Established Conventions
Some lenses cannot be adapted to Fuji X via the Fujifilm brand Leica M adapter, and these should not be used unless they are first carefully measured to ensure that they will not interfere with any aspect of the camera. In addition, adapters and third party lenses should be thoroughly checked for burs and contaminants that could get into the camera. (A similar chapter in my Leica M9 and Leica M lens review [1] includes photos of brand new imported adapters that were either out of spec dimensionally, or that had burrs and contaminants on them.)
One example relates to the conventions for adapting Contax G lenses to Fuji X cameras. Contax G lenses are a unique category because they obviously do conform to the standards developed for the Contax G cameras they were made for, but this does not guarantee that they will work with certain other cameras. The Contax G lens mount is not far enough from the focal plane to be workable (while maintaining infinity focus) when stacked with a Leica M adapter. Here, the only option is to use an adapter that directly adapts a Contax G lens to a Fuji X camera. As long as the adapter itself does not interfere with the camera or produce contaminants, it appears to be a safe way to use the Contax G 35mm, 45mm, and 90mm lenses on Fuji X cameras. However, it is UNlikely that it will be safe to use UNmodified versions of 28mm and shorter Contax G lenses.
A second example is adapting a third party Leica M mount lens that does not conform to the Leica M lens mount envelope standards that have existed for decades. As a result, the lens discussed here will not fit the Fujifilm Leica M adapter. The lens is the relatively recent 7Artisans 28mm f/1.4 Leica M mount lens (reviewed in a later chapter). Even though the 7Artisans lens is Leica M mount, its protruding rear cell is larger than the 30mm hole in the Fujifilm Leica M to Fuji X adapter, so it will not fit. The same oversize protruding rear lens cell can also mechanically interfere with the rangefinder mechanism in some Leica M cameras. This is an example of a lens maker apparently ignoring the Leica M mount standards that have existed for decades. And the oversized protruding rear cell diameter is not the only area where Leica M mount standards were apparently violated:
If mounted to a Fuji X camera via a third party Leica M to Fuji X adapter, the rear cell of 7Artisans 28mm f/1.4 lens (sample I tested, anyway) just barely clears a Fuji X camera's electrical contact pins. However, it will interfere with contact pins in Micro 4/3 cameras. So this lens falls into a "use at your own risk" category for Fuji X cameras, and it should not even be tried on Micro 4/3 cameras.
Later chapters (mostly Chapter 12) include brief reviews of selected lenses (including this 28mm) that can be adapted to at least some Fuji X cameras if appropriate precautions are taken.
8. Fujifilm X Cameras and Lenses that I Use Most
The Fujifilm camera I use most is the X-T20. I started out with an X-T10, and I still use the X-T10 for everyday pictures, as well as for video on occasions when I want to capture video clips longer than 10 to 15 minute limit of the X-T20. (The X-T10 can take continuous HD video for up to 27 minutes.)
I also have a Fujifilm X-E1. I initially got it because, at the time (2017), it was half the price of a used X-T10, and it included a Contax G to XF lens adapter. However, I only use the X-E1 on occasions when I need to use several cameras at once for something like a lunar or solar eclipse.
The range of lenses I arrived at is based more on compactness versus focal length range, rather than on getting large, fast f/ratio prime and zoom lenses. Therefore, I mostly use smaller, slow f/ratio kit lenses for everyday pictures, and faster f/ratio prime lenses on occasions when shallow depth of field is preferred, or when taking pictures or video in low light. All except a few of the main lenses I use fit into a medium size rigid camera bag, and the rest fit in a plastic file box that I store the case in, and that I use to transport the system on a walker.
The main lenses I use (and keep in or with the camera case) are:
- 4.0mm f/2.8 7Artisans fisheye lens (covers 225 degrees, but edge compressed)
- 8.0mm f/2.8 Rokinon Fisheye Lens II (for most hyper wide photos)
- 8.0mm f.3.5 Fujinon WR Rectilinear (for widest angle without distortion)
- 10-18mm f/2.8 Sigma zoom lens (has very useful wide angle range)
- 12mm f/2.0 Rokinon Rectilinear (for wide angle landscapes or dim interiors)
- 18mm f/2.0 Fujinon Pancake lens (used on the X-T10 I take everywhere)
- 18-55mm f/2.8-4.0 Fujinon OIS (mod. wide to short telephoto zoom, fast f-stop)
- 18-300mm f/3.5-6.3 Tamron (for when changing lenses would be a pain)
- 33mm f/1.4 Fujinon WR lens (for shallow depth of field, etc.)
- 60mm f/2.4 Fujinon Macro (for shallow depth of field, copy, and macro photos)
- 50-230mm f/4.5-6.7 Fujinon (for most telephoto shots in bright conditions)
- 100-400mm f/4.5-5.6 Fujinon WR (for long telephoto images)
- Fujifilm 1.4x Tele-Coverter (to use with 100-400mm lens and Borg 76 ED)
- Fujifilm brand 11mm and 16mm extension tubes (for 60mm macro)
- Fujifilm brand Leica M to FX adapter (has button to bring up FL setting menu)
Lenses I use occasionally (but don't carry around) include:
- 3.6mm f/2.8 Entaniya HAL 250 Fisheye Lens (for VR imaging)
- 6.5mm f/2.0 Opteka Fisheye Lens (mostly for all-sky photos at night)
- 7.5mm f/3.5 Samyang Micro 4/3 lens, adapted to FX (more coverage than 8mm)
-- (7.5mm adapted via a RAF Camera adapter, but lens hood mod's also needed.)
- 10mm f/5.6 Voigtlander VM Hyper Wide Heliar (15mm equivalent on APS)
- 15-45mm f/3.5-5.6 Fujinon OIS (moderately wide to short telephoto zoom)
- 28mm f/1.4 7Artisans ASPH (medium wide with shallow DOF; soft wide open)
- 40mm f/1.4 Voigtlander Nokton Classic (most shallow DOF/low light pictures)
- 90mm f/2.8 Leica Elmarit-M (faster f/ratio than zoom at 135mm equivalent FL)
- 135mm f/3.4 Leica APO Telyt-M (mostly for astrophotography)
- 180mm f/4.0 Voigtlander APO-Lanthar (mostly for astrophotography)
- 300mm f/4 Nikon ED Nikkor (mostly for astrophotography)
- Tele Vue-60 (360mm f/6 telescope) with Starizona EVO-FF field flattener.
- Borg 76ED Telescope (500mm f/6.6, for wildlife and astrophotography)
Lens(es) I may later acquire and use (if they are good enough) include:
- 14mm f/2.8 Fujinon (less likely now, since covered by Sigma 10-18mm zoom)
- 75mm f/1.2 Viltrox or Fujinon 90mm f/2 lens. (Viltrox min. focus is 88cm.)
Accessories: Accessories I use with Fujifilm X cameras are somewhat limited:
- Fujifilm brand Leica M to Fuji X lens mount adapters.
- Generic brand Nikon F to Fuji X lens mount adapters.
- Filters (ND and Hoya Red Enhance/Starscape filters, plus solar filter)
- Fujifilm EF-20 flash unit (and occasionally, separate small reflectors)
- Extension tubes (11 and 16mm lengths, to get closer with 60mm macro lens)
- Lens hoods (custom home brew hoods that are smaller than standard hoods)
- Double sided rear lens caps (very handy for stacking 2 lenses in a gadget bag!)
- Tripod (Gitzo Reporter, or a smaller tripod if using a light lens)
- Tripod mount (custom low profile version for Fuji 100-400mm lens)
- Multiple camera bars (custom made and smaller than commercial units)
- Cable release
- Wired remote shutter release
- Spare chargers and batteries. I use only Fujifllm brand chargers.
9. Everyday Pictures with Fujifilm X Cameras
Text for chapter 9 introduction TBD.
![]() |
|
![]() |
|
The rest of chapter is under construction.
10. Astrophotography with Fujifilm X Cameras
Text for chapter 10 introduction TBD.
![]() |
| ![]() |
| ![]() |
| ![]() |
| ![]() |
© Copyright 2020 Jeffrey R. Charles, All Rights Reserved. Comments: I wanted to set up more than one telescope for such a rare event, but was extremely fatigued with what turned out to be the beginning of weeks of illness and a month of self quarantine from Long COVID. I would have later been hospitalized from related breathing problems if hospitals had not been full. (For almost all of 2020, I had only gone out once or twice a month for necessities and wore both a mask and gloves, but caught it at the grocery store anyway.) The preoccupation with breathing that it caused has to be experienced first hand to be appreciated. A short video in reference [4] below is relevant to this. |
The rest of this chapter is under construction.
11. Performance of Fuji X Mount Lenses Used or Tested to Date (2021)
This chapter takes a brief look at the performance of Fuji X mount lenses that have been used or tested to date, then follows up with a modest amount of detail about each lens. Some of the testing was incidental, being noted as Fujifilm X cameras were being assessed. The nature of the testing is described below.
Unlike the Micro 4/3 cameras on which I used with Leica M mount wide angle lenses, Fujifilm X cameras do not degrade lens performance (particularly toward the edge) with a strong birefringent anti-alias filter. However, there is still some related smearing around off-center highlights when using some fast wide angle rangefinder lenses. Nonetheless, Fujifilm cameras make it possible to effectively explore the capabilities of more rangefinder lenses than was the case for Micro 4/3. A few other lenses and widgets that are not natively Fuji X mount, but that can be used with Fujifilm X cameras when appropriately adapted, are covered after the Fujifilm X mount lenses.
![]() |
|
In addition to covering my impressions of photos taken with the lenses, this section also includes some visual testing of each lens that was performed under high magnification. These visual tests, which I have performed on lenses since 2004 or even earlier, are mainly to establish the maximum f/ratio at which each lens can deliver a sharp image with relatively even illumination of the format. By sharp, a central resolution better than 10 microns is generally assumed, with a lesser bar being set for the edges and corners. Visual tests are admittedly subjective, but the results are fairly repeatable and often define how I use each lens to get really "sharp" pictures.
Unfortunately, it is not possible to control the aperture of most Fujifilm X-mount lenses unless they are attached to a camera. In these cases, visual tests could only be conducted at the aperture each lens set itself to when the camera was turned off, then tests at other apertures had to rely on the photos captured with each one.
In other words, visual tests of most digital auto focus lenses is not as thorough as is the case with other lenses. This is because the aperture of nearly all digital autofocus lenses is not adjustable when the lens is not mounted on a digital camera. Instead, the lens sets itself to a fixed aperture (often, the maximum aperture) when the camera is turned off and the lens is removed. Very few digital lenses are critically sharp over the full image format when used wide open. A notable exception is that the Fujifilm 33mm f/1.4 lens is reasonably sharp over most of the picture area when used wide open.
The combined tests mainly identify the attributes that a person would notice when using each lens and observing photographs it produces. Emphasis is placed on defining the maximum aperture at which a lens will provide good images over the full width of an image, with less emphasis on performance at the extreme corners.
Tests here do not include Modulation Transfer Function (MTF) plots, partly because I haven't the time or resources to reliably test MTF, and partly because MTF plots are available for at least a few lenses. MTF is a good predictor of how a lens performs under various conditions, but it will not necessarily sort out if a lens has aberrations that cause relatively dim blooming around highlights. Other sites, such as Optical Limits (formerly photozone.de) have some MTF data.
The custom settings available in some Fujifilm cameras can compensate for reduced illumination (vignetting) toward the edge of the format, but there is invariably a change in contrast, dynamic range, or noise in these areas if too much compensation is required. For this reason, vignetting is usually evaluated in the tests, especially if mechanical clipping of the aperture toward the edges of the frame (by the edges of optical elements in front or behind the iris) seems excessive at wider apertures.
The settings in some cameras can also compensate for color shift toward the corners (caused partly by marginal rays from some wide angle lenses going through the sensor IR cut filter at an angle), but the custom settings do not always compensate for lateral chromatic aberration (LCA) in the in-camera JPEG images. It has been possible to correct LCA in post processing since the mid 1990's or even earlier, but it is easier for most users if the camera corrects this in at least JPEG images. However, at least some Fujifilm cameras are capable of correcting both LCA and distortion with Fujifilm brand lenses.
We will start with lens performance tables for the visual tests and the maximum useful apertures (for critical applications) recommended for each lens. These are presented according to the following definitions for each column:
* Lens = Description of each lens. May include serial number.
* ShVid = Max aperture that no axial aberrations seen w/4mm eyepiece.
* ShAx = Max aperture that axial aberrations grain ltd (or 2/3 fmt. pixel ltd.)
* Sh34 = Max aperture off-axis aberrations at 4:3 aspect corner accept.
* FAFm = Max aperture to illuminate full format w/o lens barrel cutoff.
* FA34 = Max aperture that illuminates 3x4 aspect of format w/o cutoff.
* UseAt = Max aperture for sharp, well illuminated image over 4:3 aspect.
* PhAp = Physical aperture (mm) at UseAt f-stop (shallowest DOF vs res.)
* C/F = Contrast and flare. E is excellent; V is very good, G is good,
F is fair, A is acceptable, P is poor, U is unacceptable.
* Notes: Relevant notes, if any. The above 4:3 aspect ratio corresponds
to a 13mm image height for Fuji X, which isn't quite at the corner.
Lens / (Category) Ser.N. ShVid ShAx Sh34 FAFm FA34 UseAt PhAp C/F Notes:
(Ultra Wide Lenses):
4.0 f/2.8 7ArtisansCF 21677 5.6 4.0 4.0 NA NA 4.0 1.0 VG 225 deg. cir.
6.5 f/2.0 Opteka FE AHE1618 5.6 4.0 5.6E NA NA 5.6 1.2 G+ 14mm Image Circ.
8.0 f/2.8 RokinonF E215K0351 4.0 2.8 4.0 4.8 4.0 4.0 2.0 G+ Made by Samyang
8.0 f/3.5 Fujinon 3BA00352 4.5 3.5 5.6 4.5 4.0 4.5 1.8 VG Sharp exc cor.
12 f/2.0 RokinonR BLP13907 2.4 2.0 3.4 4.0 3.5 3.4 3.5 G+ FujiX.CanFlare.
(Wide Angle to Short Tele):
18 f/2.0 Fuji-X 57B00073 _ 2.8 8.0 4.0 3.2 2.8-8 6.4 G+ EdgeNtShpTilF/8
33 f/1.4 Fujinon-X 4CA03427 1.4 1.4 2.0 3.6 2.8 2-2.5 18.3 E Sharp Wide Open
60 f/2.4 Fujinon X 22A03841 3.1 2.8 3.5 4.5 3.5 3.1 19.4 V+ Macro lens 1:2.
(Tele/Long Lenses):
90 f/2.0 Fuji-X Place Hldr. - - - - - - - - Place Holder
300 f/6.3 RokinonM E215H1382 OKv 6.3 6.3 60pc 70pc 6.3 47.6 G Mirror Lens
(Short FL Zoom Lenses):
10-18 f/2.8 Sigma 57908325 _ _ _ 4.5 4.0 3.6 2.8 V 10mm Place Hld.
10-18 f/2.8 Sigma ibid _ _ _ 4.5 4.0 3.6 3.9 V At 14mm PlcHld.
10-18 f/2.8 Sigma ibid _ _ _ 4.0 3.6 3.6 5.0 V- At 18mm PlcHld.
15-45 3.5-5.6 Fuji 9BA34368 _ _ _ _ _ _ _ G+ At 15mm
15-45 3.5-5.6 Fuji ibid _ _ _ _ _ _ _ G+ At 25mm
15-45 3.5-5.6 Fuji ibid _ _ _ _ _ _ _ G+ At 45mm
16-50 3.5-5.6 Fuji X33A71068 _ _ _ _ _ _ _ G At 16 mm
16-50 3.5-5.6 Fuji ibid _ _ _ _ _ _ _ G At 28 mm
16-50 3.5-5.6 Fuji ibid _ _ _ _ _ _ _ G At 50 mm
18-55 2.8-4.0 Fuji 7AA12112 _ 3.5 4.0 _ _ 4.0 4.5 V- At 18mm
18-55 2.8-4.0 Fuji ibid _ 4.5 5.6 _ _ 5.0 6.0 G+ At 30mm
18-55 2.8-4.0 Fuji ibid _ 5.0 5.6 _ _ 5.6 9.8 G+ At 55mm
(Tele Zoom Lenses):
50-230 4.5-6.7 Fuji 0AA06055 4.5 4.5 5.0 _ _ 5.0 10.0 V- At 50mm
50-230 4.5-6.7 Fuji ibid _ _ _ _ _ _ _ V- At 80mm
50-230 4.5-6.7 Fuji ibid _ _ _ _ _ _ _ V- At 150mm
50-230 4.5-6.7 Fuji ibid 8.0 6.7 8.0 _ _ 8.0 28.7 G At 230mm
100-400 f/4.5-5.6 F 67A00861 5.6 4.5 6.3 _ _ 4.5 22.2 G+ At 100mm
100-400 f/4.5-5.6 F ibid 6.3 5.2 7.1 _ _ 5.2 38.4 G+ At 200mm
100-400 f/4.5-5.6 F ibid 7.1 5.6 8.0 _ _ 5.6 71.4 G+ At 400mm
(Long Range Zoom):
18-300 3.5-6.3 Tam 008142 - 3.5 5.6 - - 5.0 3.6 G+ At 18mm
18-300 3.5-6.3 Tam ibid - 4.0 6.3 - - 5.6 6.2 G At 35mm
18-300 3.5-6.3 Tam ibid - 5.6 8.0 - - 6.3 11.1 G At 70mm
18-300 3.5-6.3 Tam ibid - 6.3 8.0 - - 7.1 19.7 G At 140mm
18-300 3.5-6.3 Tam ibid - 7.1 9.0 - - 8.0 37.5 G At 300mm
In summary, the "UseAt" column above defines the maximum aperture at which I often use a lens if I want a really sharp picture without a distracting amount of off-axis light falloff (vignetting) toward the corners. As a reminder, I put a small green dot of paint by the corresponding setting on the lens f-stop ring of each lens. On some lenses, I also put a yellow dot by the f-stop for good central sharpness. Tests on digital cameras appear to validate most of the numbers, based on relatively high standards of performance.
High standards are used because, sometimes, the object is to get a digital image that is comparable with a medium format film image, while not having the lens stopped down so far as to lose moderate to shallow depth of field. Only a few medium focal length Fuji X APS format lenses or 35mm format lenses can actually accomplish both of these goals. Some Fujifilm X cameras can adequately perform in this image quality range, but only when the lens is good enough. It does not look like the Fujifilm APS format images will best the 4x5" film pictures I took decades ago, but considering the small physical size of a Fuji X camera system, this is not bad.
Mini Reviews: A brief look at each lens:
The following summarizes each lens from both an optical and mechanical standpoint. Most descriptions are only user impressions rather than full reviews. General information including dimensions and the number of elements may eventually be added, but the emphasis is on what a user of the lens may notice. A few isolated parts of this sub-section have only templates or TBD's for the content. It is unknown when those parts will be added to or completed.
Hyper Wide and Ultra Wide Prime Lenses (6.5mm - 12mm, Fuji X Mount)
4.0mm f/2.8 7Artisans Circular Fisheye Lens (Fuji X Mount, Tested in 2024)
The 4.0mm f/2.8 7Artisans fisheye lens is a circular fisheye that covers 225 degrees. Its illuminated field is about 13mm in diameter. A "circular" fisheye lens such as this one images its full field of view in all directions within a circle that fits entirely within the camera format. The lens provides acceptable images at f/2.8, and outstanding images at f/4.
The 4mm lens is very compact, but by necessity, it has an exposed strongly convex front element. The front cap is purpose built for the lens. It is made of thick metal, but has a fairly loose fit on the lens. This is one time I would not mind if the front cap was plastic, because if the metal cap becomes dislodged in a camera bag (which can easily happen), it could scratch the front element, which could ruin a lens of this type. A short focal length fisheye lens cannot "'see past" even relatively small scratches or dings in the front element in the way that larger aperture lenses can, so an unusual amount of care should be taken to protect the front element.
6.5mm f/2.0 Opteka Fisheye Lens (Fuji X Mount, Tested in 2020)
The 6.5mm f/2 Opteka fisheye lens is a budget compact fisheye lens that covers slightly more than 180 degrees in a circular image of about 15mm diameter. The same lens is also marketed under other brands. I bought the Opteka because it had more thorough published specifications than most others. The lens has a maximum diameter (at the focus ring) of 61.4mm and the length (measured from the front of the camera and including the all important front cap) is about 50mm. The lens does not accept filters on either the front of the back. The lens barrel is made of metal.
The apertue ring is marked in an unconventional way, and it is inaccurate. The marked f-stop range is from f/2 to f/22, and the aperture ring has no click stops. The only f-stop markings are for f/2.0, f/4. f/8 and f/22. Other than at f/2, the f-numbers shown on the ring have no correlation to the actual measured f-stops. Specifically, the maximum aperture of the lens is about f/2.2. The true position for f/2.8 is 1/4 the way between the f/4 and f/8 numbers on the f/stop ring. The true f/4 setting is at the f/8 mark on the ring. The true f/8 setting is about half way between the f/8 and f/11 marks. The actual minimum aperture is about f/13, and its true setting is where the ring shows f/22. There is also some backlash in the aperture control.
Once the aperture ring issues are known, the lens can be used more effectively. It is best to use this lens with a mirrorless camera that can provide a preview of the image brightness in its viewfinder. Fortunately, many Fuji X cameras provide this feature, along with the capability to even include a histogram.
The front element has very little curvature compared to most fisheye lenses. This results in the lens having an equisoid image projection, where the radial image scale decreases toward the edge of the field. There are no lens hood petals to protect the front element because the lens is designed to take circular pictures that slightly exceed 180 degrees in all directions. The metal front cap is deep enough to protect the front element, and it should always be attached to the lens when the lens is stored or is otherwise not being used.
The center of the image is sharp when the lens is stopped down to f/2.8 (just past f/4 according to its aperture dial numbers) and the edges are reasonably sharp by about f/4 (f/8 according to the aperture ring). The lens is a reasonable low cost option for a circular fisheye lens on Fuji X.
However, I would rather see optics such as those from the Fujinon C-Mount Megapixel 2.7mm f/1.8 185 degree lens (with different reat elements) be offered as a variable aperture 3.7mm f/2.5 or 4.5mm f/3 lens that can be used on Fuji X cameras. This would provide an image circle between 11.8 and 14.3mm (depending on which focal length is implemented), plus equidistant projection and higher resolution.
8mm f/2.8 Rokinon Fisheye II Lens (Made by Samyang, Fuji X Mount, Tested in 2020)
The 8mm f/2.8 Samyang / Rokinon Fisheye II lens is a 180 degree fisheye lens that is designed specifically for APS format mirrorless cameras. The image from the 8mm lens fills the entire APS format, so the 180 degree coverage is reckoned from one corner of the format to the opposing corner.
The image projection (i.e. angular distribution) is somewhere between equidistant (constant radial image scale) and the proportional Stereographic projection of the circa 2009 8mm f/3.5 Samyang lens that was made for SLR cameras.
The reviewed Type II lens differs from the original version mostly in regard to the rear element group. The original version had a relatively small rear element group, while the second version has a larger rear group that reduces vignetting and provides a little more sharpness near the edge of the field.
The Rokinon 8mm lens is 66mm long (measured from the front of the camera and including the integral lens hood petals) and about 60.4mm in diameter. The lens mount and a thin red indicator ring on the lens are made of metal, but most of the rest (except for some internal parts) is made of plastic.
The f-stop range is 2/2.8 to f/22 in half stop clicks, except that there is no click stop between f/16 and f/22. The minimum focus distance is about 0.28 meters, which isn't very close for a fisheye lens. Resolution in the center is pretty good wide open at f/2.8, but the edges do not get critically sharp unless the lens is stopped down to f/4 or so.
8.0mm f/3.5 Fujinon R WR Ultra Wide Angle Rectilinear Lens (Fuji X Mount, Tested in 2024)
The 8.0mm f/3.5 Fujinon R WR fisheye lens is a rectilinear ultra wide angle lens that covers about 121 degrees diagonally, 111 degrees horizontally, and 88.5 degrees vertically on the 15.6 x 23.4mm Fujifilm APS format image sensor. It is equivalent to about a 12mm full frame lens. Its filter size is 62mm, which is fairly small for such a wide lens.
Unlike some earlier Fujifilm lenses that have a plastic body that is covered with a thin metal skin, the outside of the 8mm f/3.5 lens barrel (with the exception of the metal lens mount) is made of a hard plastic. One thing I like about the 8mm f/3.5 Fujinon lens is its relatively small and unassuming size. I wish that faster Fujinon lenses (such as the 33mm f/1.4) were smaller than they are.
The Fujinin 8mm f/3.5 lens weighs only 215 g (7.6 oz). Its outer diameter at the front is 68mm, though this is slightly less toward the back. The length is 53mm, measured from the front of the camera. Resolution is reasonable wide open, but it is good everywhere except the extreme corners by about f/4.5. Maximum corner to corner sharpness appears to occur between f/5.6 and f/7.1 or so.
The lens controlls mechanical clipping of its aperture (by the edges of lens elements in front and behind the iris) fairly well. Only a modest amount of clipping is evident in the image corners at full aperture. By f/4.5, there is almost no clipping, so I use the lens at f/4.5 a good part of the time.
There is still considerable light falloff (vignetting) toward the image corners at any aperture, but this occurs with any extremely wide rectilinear lens. This is because the image corners are optically farther from the iris than the center, and the iris also does not appear to be circular from the format corners due to the angles involved. Also, the image scale effectively increases toward the edges of the frame with any wide angle rectilinear lens, and the light rays are not even close to being perpendicular to the image sensor at the corners. Also, in a wide angle rectilinear lens, the effective aperture size toward the image edge does not increase enough to compensate for both of these effects. This obviously causes light from the lens to be dimmer toward the image corners. The light falloff is generally corrected for JPEG images in the camera, or by raw conversion software for other images. Before such correction was possible digitally, radial gradient neutral density filters (which are dark in the center and clear at the edges) were used to compensate for vignetting.
In practice, the 8mm Fujinon lens seems to have a focal length more like 8.5mm (close to 13mm equivalent) instead of 8.0mm. Specifically, there does not appear to be a 20 percent difference between the central image scale of the Sigma 10-18mm f/2.8 lens (at 10mm) and this 8mm lens. The difference in coverage is also less than I would expect with a true 8mm lens. Nonetheless, the additional field of view offered by the 8mm Fujinon lens is enough more coverage than 10mm to make it worth using in addition to the Sigma, especially for certain interior photos.
I bought an 8mm f/3.5 Fujinon lens used in the summer of 2024, because the used price was then over $300 less than the new price. Months later, the new price temporarily dropped by $200 US during some sale events, so if I did not already have one, I'd tend to go for a new one at the reduced price. If all new Fujinon XF lenses were priced at about 70 to 75 percent of their typical new prices (equivalent to the price drop on a new 8mm f/3.5 lens), I may have bought all of my Fujinon lenses new.
The Fujinon 8mm f/3.5 rectilinear lens is close to being the wide angle lens I had been waiting for. The only things that could be better would be a lower price and a slightly wider angle. Some of the hyperwide pictures I've taken over the last few decades originated as fisheye pictures that were processed to have a rectilinear projection. These worked out best when processed or cropped to be the equivalent of an 11mm rectilinear lens on a full frame camera. Specifically, the original pictures were usually taken with a full frame fisheye lens on a film camera (before 2000), then with fisheye lens adapter on a digital camera in the early 2000's. More recently, the original photos have been taken with Samyang 8mm fisheye lenses (on APS format), and the Samyang 12mm f/2.8 fisheye and Voigtlander 10mm f/5.6 lenses on full frame. But the Fujinon 8mm f/3.5 lens (12mm equivalent) provides a field of view that is at least in the ball park.
12mm f/2.0 Rokinon CS X Rectilinear Wide Angle (Fuji X Mount, Tested in 2021)
The 12mm f/2 Rokonon lens is a rectilinear projection lens made for the APS format mirrorless cameras by Samyang. It has a field of view roughly equivalent to an 18mm wide angle lens on a full frame camera. The minimum focus distance is about 0.19 meters and the filter size is 67mm. The f-stop range is f/2 to f/22 in half stop clicks, except that there is no click between f/16 and f/22.
Central resolution of the 12mm Rokinon is reasonable at f/2, but contrast is a little better at f/2.8 or slower. The full frame is acceptably sharp at f/2.8, and quite good at f/4 to f/5.6. The lens is more subject to flare than most other wide angle lenses for Fuji X, but on the other hand, there are not many if any rectilinear Fuji X mount lenses with such a wide field of view in this price range.
The lens is 59mm long (measured from the lens mount) and the front end has a diameter of 72mm. The rear part of the lens barrel has the same 60.4mm diameter as the 8mm lens reviewed above, and the style and proportions of the focus and aperture rings look almost identical to those of the 8mm. Another similarity to the 8mm is the lens mount and thin red indicator ring on the lens are made of metal, but most of the rest of it (except for some internal parts) is made of plastic.
The 12mm f/2 Rokinon lens comes with a relatively large hood, so I came up with something that is more portable for my own use. My compact custom hood consists of a 67mm to 62mm step down ring, onto which I attached a flat piece of cardboard having a rectangular cutout of about 51mm x 42mm that has rounded corners. This is fairly effective, and it only adds about 4mm of length to the lens. (I'd make one out of metal if I could machine any more.) A slip-on lens cap has to be used over this type of low profile hood, since the hood has to be removed to use filters. It would be possible to make one with front filter threads, but it is usually best if filters are used behind a lens hood.
18mm f/2.0 Fujinon Aspherical (Fujifilm XF Mount, Tested in 2018)
The Fujinon 18mm f/2.0 Fuji X mount lens is a compact lens having a diameter of 64.5mm and a length (measured from the camera lens mount) of 33mm. It is sometimes referred to as a "pancake" lens, though 33mm it is a bit long for a true pancake lens. The length increases a little when the lens is focused.
The minimum focus distance is about 10.5 cm from the front of the lens, or about 16 cm from the focal plane. The aperture range is f/2 through f/16 in 1/3 stop clicks. The aperture ring (this lens and many other Fujifilm lenses have aperture rings!) also includes an "A" setting that is used for auto exposure when the camera is in various modes. The filer size is 52mm.
Controls on the lens consist of a fly-by-wire manual focus ring at the front and an aperture ring at the back. Mechanical construction of the 18mm lens includes a metal lens mount and mostly metal components on the exterior. Most of the internal mechanism is a combination of metal and plastic. Mechanical clipping of the aperture in off-axis parts of the image is fairly well controlled for a wide angle lens. The clipping (by edges of rearward lens elements) is fairly minimial by f/3.2 and completely gone by f/4.
The 18mm lens comes with a hood that is fairly effective, but that makes the lens considerably longer. For my own use, I bought a filter step down adapter, then made a flat hood out of cardboard with an opening of only about 25mm x 18mm, and glued it to the filter adapter. This is reasonably effective, and it only adds 4mm of length to the lens.
The center of the image from the 18mm Fujinon is reasonably sharp at f/2, but the lens has to be stopped down to at least f/2.8 to increase central contrast and sharpen moderately up off-center parts of the image. The corners are not really sharp until f/8, and even at f/8 there is still some fringing in the corners. In spite of this, I use this lens frequently because of its small size. It would be nice to see a new version of this lens that is about the same size (or even smaller) but is sharper at the edges.
The Fuji X 18mm is one of the first lenses made for Fujifilm X cameras. The other early lenses included the 35mm f/1.4 and the 60mm f/2.4 macro. All three of these lenses have relatively slow and noisy auto focus, so they are not particularly good for video in situations where a lot of focusing is done while using the in-camera microphone.
When I acquired the Fujinon 18mm f/2 lens in 2017, I was also considering the smaller and sharper Fujinon 27mm f/2.8 pancake lens. The main reason I went with the 18mm was that the only version of the 27mm lens available at the time lacked an aperture ring. A newer version of the Fujinon 27mm pancake lens does have an aperture ring.
33mm f/1.4 Fujinon R LM WR Lens (XF Mount)
The Fujinon 33mm f/1.4 R LM WR lens is a sharp, fast, and relatively contrasty lens. It is sharp in the center wide open, and is also sharp out to well into the mid field wide open. The entire picture area is sharp by about f/2. The 33mm lens is part of a trio of high performance f/1.4 lenses (18, 23, and 33mm) that were introduced in 2021.
Unlike earlier f/1.4 Fuji-X lenses, these new lenses have very responsive and quiet internal focusing. The Auto Focus (AF) performance is partly due to the motor used, and partly because the entire lens barrel does not have to move when focusing. The 33mm lens has more elements than even what some zoom lenses of decades past had, at 15 elements in 10 groups. But the AR coatings are good enough that flare is minimal. Each lens in this trio of Fuji f/1.4 lenses is also weather resistant.
The lens iris is made up of nine curved blades, for fairly round and smooth looking bokeh circles in out of focus backgrounds. The minimum aperture is f/16. The minimum focus is 30 cm, and the filter size is 58mm. However, most 52mm filters can be used without vignetting via a step down filter adapter ring. (A step down filter ring can also act as an "always on" shallow lens hood that takes up almost no space.)
The 33mm f/1.4 lens is sharp enough that it can be used wide open for most subjects that do not require critical sharpness and low noise at the very corner of the image. However, the lens has fairly strong vignetting (more than two f-stops of it!) wide open. This is caused in part by the edges of relatively small elements in the rear part of the focusing lens group, plus the rear element groups. At wide apertures, these rearward elements locally clip the outer side of the light bundle. If there was less vignetting, I would be comfortable using the lens wide open for many subjects, but given the strong vignetting wide open, I tend to use it at around f/2.
In looking at the 33mm lens (and its optical diagram), it appears that the elements forward of the aperture blades have very little effect on vignetting. The forward elements contribute very little to vignetting even when the lens is used wide open, and they do not clip the apeture at all when the lens is stopped down to f/2. However, some of the rearward elements are relatively small, being considerably smaller than even the rearward elements of the Panasonic/Leica 25mm f/1.4 Micro 4/3 lens. The rearward elements of the 33mm Fujinon lens clip the aperture considerably until the lens is stopped down to f/2.5 or so, and there is some aperture clipping by the rearward elements until the lens is stopped all the way down to f/3.6.
The diameter of all elements in the rear group could be increased by 2mm or so without interferilng with features such as the electrical contacts on the back of the lens. However, the diameter of the two facing surfaces of the central two elements in the focusing group cannot be increased without increasing the optical spacing, and thus, changing the optical design. However, the diameter of the rearward two elements of the focusing group (and possibly the rear surface of the third element from the back of the group) could be increased slightly without changing the center thickness or spacing of any of the elements. Even half a stop less vignetting would be worth pursuing.
Beyond the above changes to slightly reduce vignetting, it can be difficult to further reduce vignetting in a lens that performs this well in terms of resolution at wide apettures. Further changes could cause some loss of resolution performance, or require going back to the drawing board. Thus, unfortunately, the relatively small focusng elements and rearward elements of this lens are what they are.
Stopping the 33mm lens down to f/1.8 or so makes the vignetting more manageable, and vignetting ceases to be obvious by about f/2.5. Small out of focus highlights toward the edge of the frame have a stong "cat's eye" shape when the lens is used wide open, and these take on less symmetrical shapes by about f/1.8. At f/2.2, out of focus highlights look fairly round over most of the image, but these look a little better at f/2.5. Defocused specular highlights are not imaged as clean circles over the entire frame until the lens is stopped down to f/3.6. This corresponds to the widest f-ratio at which edges of the rearward elements do not mechanically clip the lens aperture at the frame corner.
Fujifim X cameras autocorrect vignetting, but at f/1.4 this may do the equivalent of locally increasing the ISO by up to a factor of four at the image corners, which can visibly increase noise. These aspects of the vignetting compensation should be considered when setting the ISO for certain subjects. Mechanical clipping of the aperture appears to be minor by about f/2.5, and almost nonexistent by about f/3.6.
For shallow depth of field while maintaining high resolution, the 33mm f/1.4 Fujinon lens is a game changer for the Fuji X system. When critical sharpness and minimal vignettng are required out to at least half way to the corner of the format, the 33mm Fujinon lens can be used at a wider physical aperture than even the renowned Leica 50mm Summilux, owing to a mid field resolution dip in the Summilux lens. Specifically, the Fujinon 33mm provides excellent images at apertures as wide as f/1.8 (18.3mm physical aperture size), while the Summilux has to be used at f/4.4 (51.6mm actual FL/4.4 = 11.7mm aperture) to get critical sharpness in the mid field area. However, if vignetting is to be minimized, the Fujinon 33mm would have to be stopped down to f/2.5, which reduces its utilized aperture to 13.2mm.
Gripes about the Fujinon 33mm lens are limited. They include the aforementioned vignetting at wide apertures, plus a large barrel diameter of 67mm, which is about 2mm too large to work on a large tripod head with an X-T20 camera. (The aperture can't be set when the aperture ring diameter is more than about 65mm, unless the lens overhangs the tripod head.) A camera grip can prevent this problem, but this increases the combined size and weight. The length of the lens (measured from the front of a camera) is 73.5mm, and the lens weight is 360 grams, not counting the included plastic hood.
Because of the large 67mm outer diameter of the 33mm f/1.4 lens, I had seriously considered getting the 35mm f/1.7 Viltrox lens instead. But I ultimately went with the Fuji lens because the f/1.7 Viltrox lens lacked an aperture ring. And for me, part of why I use the Fuji X system is so I can use lenses that have aperture rings. The Fujinon 33mm f/1.4 lens is one of the few Fuji lenses that I bought brand new. And I rarely buy anything new. Used ones were not selling for enough less than new ones after the new price was temporarily reduced in November of 2024.
I would prefer to see the Fuji X and the Leica M systems each include a fast lens of a focal length equivalent to about 65mm on full frame (42 to 43mm for the Fujifilm X APS format system), since this works well for half to 3/4 length portraits and certain types of landscapes. Thus far, no fast prime lens in this focal length range is available as either a Leica M lens or a Fuji X auto focus lens. In the absence of such a lens, I use a compact Leica M mount Voigtlander 40mm f/1.4 Nokton Classic lens (via an adapter) with the Fujifilm X system.
60mm f/2.4 Fujinon Aspherical Macro (XF Mount, focuses down to 1:2 reproduction ratio)
The Fuji X 60mm f/2.4 Macro lens is a sharp and contrasty lens. It is reasonably sharp in the center wide open, and the entire picture is not bad by about f/3.1. It is very sharp over the full frame by f/4.
Even though the 60mm is a macro lens, the relatively wide aperture at which it provides high resolution also makes it a good choice for portraits. It is also sharp in its macro focus range, and it can easily resolve the compound eye on a fly. While the lens is very sharp at even f/3 or f/4, it may be necessary to stop down to at least f/5.6 to get enough depth of field to sharply image insects and other small 3D subjects.
Controls on the lens consist of a wide fly-by-wire manual focus ring at the front and an aperture ring at the back. Mechanical construction of the 60mm lens includes a metal lens mount and mostly metal components on the exterior. Most of the internal mechanism is a combination of metal and plastic.
The diameter is about 64.5mm and the length (from the front of the camera) is 64mm. The minimum focus distance provides a 1:2 reproduction ratio that covers an area of about 47mm x 31mm. The filter size is 39mm (similar to Leica E39) and the f-stop range is f/2.4 to f/22 in 1/3 stop clicks. Like almost all Fujinon Fuji X lenses, the aperture ring also includes an "A" setting that is used for auto exposure when the camera is in various modes.
Unlike many other Fujifilm lenses of its time, the entire front of the 60mm lens does not move in and out as the lens is focused. Instead, only the inner 41mm diameter lens barrel moves in and out. When the lens is focused close, the inner barrel will extend outward almost 20mm.
The Fujifilm 60mm macro lens comes with a hood that is about as large as the lens. For my own use, I bought the smaller hood that Fujifilm made for the Fujinon 35mm f/1.4 Fuji X lens. The 35mm hood only adds about 20mm to the length of the lens, and works quite well. This smaller hood also reduces the risk of the lens hood shadow falling on a macro subject.
90mm f/2.0 Fujinon Lens (Fuji XF Mount. Place Holder)
Place Holder for a (hopeful) future review.
300mm f/6.3 Rokinon Mirror Lens (Nikon F mount, adapted to XF Mount)
The 300mm f/6.3 Rokinon mirror lens is made for Fuji X mount, but the reviewed version is a Nikon F mount version that is adapted to X mount. This compact lens uses 58mm filters and focuses down to about 1 meter. The lens mount is metal, but most other mechanical parts are plastic.
Resolution of this lens is just OK. After getting the 50-230mm Fujinon lens reviewed below, I have not used this mirror lens much, partly because a cropped picture from the zoom lens at 230mm is almost as sharp as a picture from this 300mm mirror lens.
10-18mm f/2.8 Sigma Zoom Lens (Fuji XF Mount. Tested in 2025.)
The Sigma 10-18mm f/2.8 relatively compact rectilinear zoom lens does not have a long zoom ratio, but the range it covers is very useful. It is considerably smaller and lighter than the 10-24mm f/4 Fujinon lens. The f/ratio is f/2.8 throughout the zoom range with the Sigma lens. The controls are limited to a zoom ring and a manual focus ring. There is unfortunately no aperture ring, so the f-stop has to be set in the camera.
The lens has a metal lens mount with a rubber gasket, but the main lens barrel is all plastic. This makes the lens barrel fairly susceptible to marring if it is kept in a camera bag that lacks dividers, but it does not affect function. The zoom ring is toward the front, and the relatively narrow focus ring (that could stand to be a little wider) is toward the back. The filter size is 67mm.
Optical construction of the Sigma lens is 13 elements in 10 groups. Four of the elemeents are aspherical, three are FLD glass, and one is SLD. The lens performs very well, and the number of unusual elements probably contributes to this. The diagonal field of view on Fujifilm X cameras ranges from 76.5 to 109.7 degrees. This angle range may at first seem at odds with a 1:1.8 zoom ratio, but it is consistent with the fields of view for a rectilinear lens at the specified focal lengths. With wide angle rectilinear lenses, the angle of view does not change in direct linear proportion to the focal length.
Autofocus performance is adequate to good, and is relatively fast. The minimum focus distance is 11.6 cm at the wide end and 19.1 cm at the 18mm setting. These distances are measured from the focal plane, so close focus at the wide end is fairly close to the front element. Manual focus is fly by wire, but is fairly responsive.
The lens is a varifocal design rather than being a true zoom, so the autofocus engages to compensate while the lens is being zoomed. This happens even when the camera is set to manual focus. I have not yet done tests in low light to see if zooming can initiate focus hunting while the camera is in manual focus mode. (This does happen with some other "zoom" lenses, including the 100-400mm Fujinon.)
One unfortunate aspect is that the 10-18mm lens will focus considerably past infinity in manual focus (enough to hopelessly blur the whole image), so you can't manually focus on infinity without paying close attention to the sharpness of the image. (I have not yet tested the lens to see if this range past infinity also applies to focus hunting in auto focus.) This is about the only fly in the ointment with this lens, and can complicate using it for astrophotography.
Vignetting from mechanical clipping of the aperture is relatively well controlled in the Signa 10-18mm lens. Throughout the entire zoom range, there is some mechanical clipping of the aperture (by edges of lens elements in front and behind the iris) at f/2.8 , but it is not as strong as in most other wide angle lenses I've tested. There is no mechanical aperture clipping at all by f/4.5 even in the image corners, and the clipping is so minor at f/3.6 that I regularly use the lens at this aperture. There is still some light falloff toward the corners at slower apertures, but this is normal for wide angle rectilinear lenses, partly because the edges of the focal plane are optically farther from the lens iris than the center. The camera usually compensates for this.
The lens resolution is reasonably good over most of the image at full aperture, and resolution is quite good accross the image by f/3.6. (At least this is the case on a 24 MP camera.) There is little to no visible fringing. This is pretty good when you consider that even f/3.6 is wider than the maximum f/4 aperture of the Fujinon 10-24mm lens. The aperture in the Sigma lens is controlled by 7 curved iris blades, though the utilized blade edges appear to become relatively straight at smaller apertures. The minimum aperture is f/22. Since the lens lacks an aperture ring, there is no "A" setting on it. Therefore, if automated aperture control is desired, this must be set in the camera.
The lens barrel has a diameter of 72.2mm at the front. At the 18mm setting, the lens has a length of 64.3mm, measured from the front of the camera. When the lens is zoomed back to 10mm, the front moves out just under 8mm, bringing its length to 72mm. Rearward parts of the lens housing have a smaller diameter (62.6mm) than the front. This makes it possible to use the lens while the camera is mounted on a large tripod head. (This is a good design that I wish was more common!) The lens weight is only 250 grams.
The included relatively short petal lens hood attaches by pushing it on, rather than twisting it on. But it is removed by only a very slightly twising motion. The attach force seems excessive to me, so I don't attach the hood unless I grab the front of the lens while doing so, to prevent transferring the considerable mounting force into the zoom mechanism. Since the lens construction is mostly plastic, the zoom mechanism could be relatively delicate. Because of the relatively strong attach force, I don't use the hood much. On a more positive note, the lens itself appears to have two channels that can be used to attach a hood if they later change back to a twist lock hood design. For the time being, I may just implement some sort of home grown low profile hood similar to those I made for the Rokinon 12mm and Fujifilm 18mm lenses.
Even though this Sigma lens was introduced ten years after the Fujifilm X-T10 camera, it appears to be compatible with it (even one with an old firmware version) in all respects evaluated thus far. It also works well on the X-T20, which is the newest Fujifim camera model I've used as of 2025.
In conclusion, the Sigma 10-18mm f/2.8 lens is a very useful lens that performs well. Its zoom range includes many useful focal lengths for which Fujifilm and various third parties offer prime lenses. These useful focal lengths include 10mm, 12mm, 14mm 16mm, 18mm, and everything in between. The Sigma 10-18mm lens covers the range encompassed by all of these focal lengths, and at an f/ratio just as fast as some of the prime lenses in this range. It would be nice if the lens had an aperture ring (especially a marked one), but this feature is not very common on third party zoom lenses. The plastic exterior is not very inspiring, but that is becoming more common these days.
The only significant fly in the ointment with the Sigma lens is that it can focus so far "past" infinity that the image becomes hopelessly blurred if sharpness at infinity is not monitored while using the lens in manual focus. For this reason, the Sigma lens cannot outright replace every lens in its focal length range. (At least for my applications.) One lens with calibrated manual focus capability (such as the 12mm Rokinon or 14mm f/2.8 Fujinon) is still required for more foolproof astrophotography or wide angle total solar eclipse imaging.
15-45mm f/3.5-5.6 Fujinon OIS PZ Aspherical (Tested in 2020)
The Fujinon 15-45mm f/3.5-5.6 is a kit lens that Fujifilm has offered with new cameras up to the X-T30. It is a very useful lens because the zoom range starts at 15mm (roughly equivalent to 23mm on full frame), which is a very useful focal length. Resolution is good in the center at full aperture, but the lens usually has to be stopped down about one f-stop for good resolution across the frame.
Controls consist of only a manual focus ring at the front and a zoom command ring at the back. Both are fly by wire. There is no aperture ring, so the f-stop has to be set in the camera. The filter size is 52mm, and the lens includes Optical Image Stabilization (OIS).
Like the earlier 16-50mm lens (reviewed below) mechanical construction is almost entirely plastic. Unfortunately, this even includes the lens mount. A plastic lens mount can shed particulates over time, and these can make their way onto the image sensor cover glass.
The lens has a diameter of 60.5mm and a length of 44mm, measured from the front of the camera. When the camera is turned on, a motor in the lens moves the front of the lens out an additional 23mm. The length of the lens can then change a little more during zooming.
The 15-45mm lens differs from most other Fujifilm X lenses in that the zoom function is motorized. Zooming is fly by wire, with two zoom speeds being selectable based on how far the zoom ring is turned in a given direction. The zoom ring does not keep spinning while zooming. It instead is spring loaded and can be turned in either direction, after which it snaps back to its center position. Turning the ring a little zooms the lens slowly, while turning it a little more commands a faster zoom rate.
16-50mm f/3.5-5.6 Fujifilm OIS Asphpherical (Tested in 2018)
The 16-50mm f/3.5-5.6 is one of the early Fujifilm kit lenses. It is fairly capable as a kilt lens, being a little wider than most and also including Optical Image Stabilization (OIS). The lens measures about 62.6mm in diameter ant 65mm long (measured from the front of the camera) when at the wide angle setting. When the lens is zoomed to 50mm, it attains a physical length of about 98.5mm.
Controls consist of only a fly by wire manual focus ring at the front and a mechanical zoom ring toward the back. There is no aperture ring, so the f-stop has to be set in the camera. The lens includes Optical Image Stabilization (OIS) and the filter size is 58mm. Filters as small as 52mm can be used with an adequately low profile filter step down ring without significant vignetting at the wide end.
Mechanical construction is almost entirely plastic. Unfortunately, this even includes the lens mount. A plastic lens mount can shed particulates over time, and these can make their way onto the image sensor cover glass.
18-55mm f/2.8-4 R LM OIS Fujifilm XF OIS Asphpherical (2024)
The Fujinon 18-55mm f/2.8-4 lens is what some may consider to be the pinnacle of Fuji's "'kit lenses". It has a relatively fast f/2.8 aperture at the wide end, and it also has image stabilization. It is larger than the 15-45 and 16-50 kit lenses, but it is still reasonably small. Its 65mm barrel diameter is small enough that it can just barely be used on a large tripod head with the X-T20 camera.
In general, the lens performs well in terms of both sharpness and vignetting when it is stopped down only one f-stop, but it is still useable even at full aperture. This means that excellent images can be obtained at f/4 on the wide end, and f/5.6 on the long end. The filter size is 58mm. The minimum focus distance is a little under a 30 cm at 18mm and around 45 cm at the 55mm zoom setting.
Some have tested samples of this lens that appear to have had poor centering that caused one corner to be blurred with respect to the rest of the image. Fortunately, the sample I tested did not have this problem.
It was fairly difficult to acquire a used version of the 18-55mm lens for a reasonable price. I bought one on eBay in late 2021, but the seller never sent it and I had to get a full refund via eBay. (The only time I ever had to do that.) It was finally possible to acquire one for real in 2024.
18-300mm f/3.5-6.3 Tamron (Fuji XF Mount, Tested 2023)
The Tamron 18-300mm Di III-A VC VXD lens has a much longer zoom range than any lens made by Fujifilm. The longest range Fuji brand lens is the 18-135mm, and it is not particularly sharp at the 135mm setting. Therefore, a lens such as the Tamron 18-300mm has long been needed for the Fuji system. The competing Micro 4/3 format has long (for a decade) had zoom lenses with a 10:1 or longer zoom range, and the compact Panasonic 14-140mm MFT lens generally has slightly better performance than the Fuji 18-135mm. So, it was about time that a true superzoom lens became available for the Fuji X system.
The Tamron lens has good resolution in the 23-35mm range and the 70-200mm range. Its performance is a little below average in the realms of 18mm, 50mm, and 300mm. Best performance at all focal lengths is achieved when the lens is stopped down about one f/stop. The physical size is reasonable for its extreme zoom range, and the filter size is 67mm. Dimensions (measured from the front of the camera) are 125.8 mm long by 75.5mm diameter. However, the back of the lens is small enough that it can be used while the camera is on at least a medium size tripod head. The weight is relatively light at only 620 grams. The lens has a metal camera mount, but the rest of the exterior is made entirely of plastic. The finish is easily marred, so care must be taken to maintain its appearance.
Minimum focus distance is dependent on the focal length setting. Closest focus at 18mm is almost at the front element, and is slightly less than 1 meter at the 300mm setting. The internal focus effectively shortens the focal length when the lens is focused close, so the reproduction ratio at 300mm is 1:4, which is a little less than might be expected based on the relatively close minimum focus distance. The iris is made up of seven rounded blades that provide a relatively circular opening for the widest couple of f-stops at a given focal length setting.
Manual focus is relatively slow, often requiring several turns of the manual focus ring to make only moderate changes in focus. The 18-300mm is a good choice for an "all in one" lens to use in situations where it is desirable to travel light, or when it is impractical to change lenses in the field. Becaus of this, I keep the Tamron zoom on a second Fuji camera body. The Tamron is not in the same league as the Fujifilm 100-400mm zoom for most long focal length applications, but it is a good all around lens.
Tamron literature implies that this 18-300mm lens is not compatible with some older cameras such as the Fujifilm X-T10, and I did not find an address to contact Tamron directly to ask if the lens works at all on such a camera, or if it only works at a basic level, but certain features don't work. Unexpectely, every aspect of the lens tried thus far has worked fine on my X-T10, even though I have never updated the camera firmware. This includes auto focus, manual focus, focus compensation during zoom, stabilization, and both manual and auto iris settings.
Comparisons of AF, MF, and stablization performance between the Tamron 18-300mm lens and the Fujifilm 50-230mm and 100-400mm Fujifilm lenses show that these aspects of the Fujifilm lenses work better than the Tamron. Oddly enough, stablization in the Tamron lens seems to work better with an older X-T10 camera than with a newer (but still relatively old) X-T20.
Unlike some Fujifilm lenses, the 18-300mm lens lacks a fixed rear element, so the rear elment moves deep into the lens body as the focal length is increased. This sucks a lot of air (and presumably dust) through the camera as the lens is zoomed. In both the X-T10 and X-T20 cameras, the lens pushes air into the camera and out around the EVF eyepiece when it is zoomed from telephoto back to wide angle. The resulting air movement is significant enough that you can feel air being blown onto your eye while zooming from tele back to wide angle.
Like most Fujifilm XF mount zoom lenses, the Tamron lens is not a true parfocal zoom. It is a varifocal lens, in that the focus changes as the lens is zoomed. If the lens is zoomed slow enough, the automatic focus compensation can almost keep up for video. However, since the aperture is not stepless in this lens (or in almost any XF mount zoom lens), there may be a few small but sudden changes in the image brightness throughout the zoom range. This zoom focus compensation occurs even when the camera focus mode switch is set to manual focus, so care must be taken not to change the zoom setting if accurate focus must be maintained for a series of pictures. By contrast, the Panasonic 14-140mm MFT lens appears to be a true zoom, so in some ways, features of Fuji X lenses have yet to catch up to MFT.
In conclusion, the Tamron 18-300mm lens is a very welcome and useful addition to the Fuji X system. It provides a way to get a wide variety of useful focal lengths at a reasonable price. Lenses like this provide a way to get a Fuji X system of reasonable versatility without spending a fortune at the outset, and could encourage some to get into the Fuji X system. Some higher performance Fujinon lenses can then be added to the system later. (Certain other camera makers that don't allow third party lenses to be made for their systems should take note, since a lack of third party optics can steer people toward other brands.)
50-230mm f/4.5-6.7 Fujinon OIS II Aspherical (Fuji XF Mount, Tested 2020)
The Fujinon Xc 50-230mm f/4.5 to f/6.7 OIS II Aspherical lens has a failry slow f-stop range, but it provides sharp images at most focal lengths. It is notably smaller, lighter, and cheaper than the Fujinon 55-200mm f/4-4.8 lens.
The outside diameter is 69.5mm at the front, but the rearward 29mm is reduced to a diameter of only 63.7mm, to prevent interference between the lens and a medium size tripod head while on a Fujifilm X-T10 series camera. (I wish more Fuji X lens barrel designs took this into consideration!) The physical length of the lens increases when it is zoomed. The lens length at the 50mm zoom setting is 108mm (from the front of the camera) and the length at the 230mm setting is about 172mm.
The only controls are the zoom ring toward the back and a manual focus ring at the front, so the aperture (f-stop) must be set in the camera. The filter size is 58mm, but I have found that the lens does not vignette if 52mm filters are used with a typical 58mm to 52mm step down filter adapter. This makes it possible to use the same filters on this lens and many of my other lenses, including the 18mm f/2 and the 15-45mm zoom.
The lens hood supplied with the lens is quite large. For my own use, I bought a 58 to 52mm filter step down ring, then got a vintage 52mm telephoto style collapsible rubber lens hood that can extend to a length of 45mm. When the rubber hood is collapsed, the compact combination adds less than 25mm to the length of the lens and does not increase the diameter at all.
Even though the 50-230mm Xc lens lacks an aperture ring, its smaller size, lighter weight, and shorter low end focal length of 50mm (rather than 55mm) were the main reasons I went for it over the larger 55-200mm lens.
The size and weight of a camera system adds up with each larger lens. Even if the price is not an object for a given lens, larger lenses can make camera system so large and heavy that it will make one poor to carry it. The whole idea of using an APS system over full frame is to have a smaller and lighter system. But when too many APS format lenses are just as large as equivalent full frame lenses, there is a diminishing return in this area. This is why the smaller and lighter 50-230mm lens is a welcome addition to the Fujifilm X system, in spite of its slower f/ratio.
100-400mm f/4.5-5.6 Fujinon R LM OIS WR (Fuji XF Mount, Tested 2022)
The Fujinon 100-400mm f/4.5-5.6 Fujinon R LM OIS WR is an apochromatic long focal length zoom lens that has both spherical and aspherical lens elements. It has an aperture ring (as many Fuji lenses do), but the ring does not have f/stop markings. It is one of the "Red Badge" fujifilm lenses, and it works with the Fuji X 1.4x and 2x tele-converters. It is also weather sealed to a degree.
The 100-400mm lens is relatively heavy at 1350 grams (48 oz). It is 210mm (8.3 inches) long (measured from the front of the camera lens mount), and it has a maximum outer diameter of 95mm. The physical length of the lens increases to 270mm (10.7 inches) when the lens is zoomed to 400mm. The filter size is 77mm. The lens focuses down to 1.75 meters at all focal lengths. It would be nice if it focused closer at the 100mm zoom setting, but them's the breaks. The lens includes a removable (but tall) tripod foot, and a relatively large bayonet mount reversible lens hood. The hood has a sliding door on one side that can be opened to adjust a polarizing filter without removing the hood.
The Fujinon 100-400mm f/4.5-5.6 Fujinon R LM OIS WR was once one of the most expensive lenses in the Fujifilm X system, having a US $1,900 retail price. It has switches for the AF focus range (full range or 5m to infinity), an aperture mode switch (to select manual control or auto iris), and a switch for the image stabilization. It also has a zoom lock that can be engaged at 100mm. This is used to keep the zoom from creeping when the lens is carried with the front end down. It would be nice if the zoom lock could also be engaged (or at least provide detents) at other focal lengths, since the lens can creep back to shorter focal lengths if pointed up very high when mounted on a tripod or star tracker.
Autofocus performance is highly dependent on the camera body that is used. It is very sluggish on the Fujifilm X-T10 (firmware TBD), but it performs better on X-T20 (firmware TBD). When the camera focus mode switch is set to MANUAL FOCUS and the rear SF (Single focus) button on the camera is used in low light conditions, the lens will at times fail to acquire focus, then it will continue to hunt focus for several seconds after the focus button is released before it gives up. This is most common in low light, since the lens focuses more decisively in bright light. I have not used any other Fujifilm lens that continues attempts to focus after the rear single focus button is released.
The Fuji 100-400mm lens is not a true zoom lens, in that it does not remain in focus when it is zoomed. It is actually a varifocal lens, requiring a different focus setting for each focal length. The lens Auto Focus maintains focus that is in the ball park (but not always exact) while zooming at slow to moderate speeds, even if the focus switch on the camera is set to manual focus mode. This focus compensation for different focal lengths is not exact, so if the camera is in manual focus mode, it is best to check or tweak the focus whenver the focal length is changed.
Optically, the 100-400mm lens performs well even at maximum apetrure, with no color fringing observed on any of the subjects I photographed. It has some coma at full aperture, starting about half way to the edge of the frame, but this is not visible in most subjects. For some subjects (stars, for example), the lens will perform better when stopped down at least 2/3 of a stop.
The lens at first appeared to have an extremely dim linear glow around large and radically overexposed highlights. This glow is up to a few hundred pixels wide, and runs from side to side in the image, but not in other directions. This only appears in astrophotos, such as when the crescent moon is over exposed to image the earthshine on the dimmer part of the moon. However, I eventually discovered that this artifact is unique to the X-T20 camera (and not the lens) because it does not appear when I use an X-T10 camera.
The image stabilization works better on the X-T20 than it does on the X-T10. On the X-T20, it has been possible to get good hand held results at down to 1/15 second at the 100mm setting, and 1/40 second at 400mm. The stabilization also works well when panning sideways to take movies of birds in flight. The image stabilization switch was a consideration in selecting this lens over the 70-300 lens. The switch makes it easy to instantly see if stabilization is on or off, and to turn off stabilization (without having to access a menu or use up a function button) when the lens is used on a tripod.
Advantages of the Fujifilm 100-400mm lens include almost no color fringing wide open (even on star images!), high resolution wide open, and even higher resolution when stopped down about one f/stop. The lens has a rear element that moves only slightly as the lens is zoomed, and it also has an air vent forward of this element. This helps keep the lens from pushing and pulling air (and dust) through the camera body as it is zoomed.
Disadvantages include a high price and plastic construction. (Even the filter threads are plastic!) As far as the attachments, the hood appears to have an excessively large diameter, being over 25mm larger than the lens at the front end. The tripod foot is also quite tall. The foot is so tall that the lens will not fit in most large lens cases while the tripod foot is attached. (A smaller custom tripod mount foot is discussed in Chapter 6.) Also, Fuji apparently does not offer a fitted case for this lens.
Due to fact that the lens zoom can creep, and because the lens will start autofocusing when zoomed (even if the AF mode switch is set to MF), it may be useful to use a rubber band or other fixture on the zoom ring, to prevent zoom creep during astrophotography. Otherwise, both the focal length and the focus may change during long exposures (or between subs), regardless of the focus mode setting.
In real world use, the main issue with this lens is its size (210 x 95mm) and weight (1350g). The lens could have been noticebly smaller if the maximum aperture at 400mm was f/6.3 (only 1/3 of an f/stop slower) rather than f/5.6. This may not have changed the length much, but it would have reduced the diameter and the weight. This also would have been compatible with the smaller 67mm or 72mm filter size that is shared by some other Fujifilm lenses. So if there is a later version, a slightly slower f/stop at 400mm would help with portability (and maybe even cost), while still maintaining almost as much capability.
Competition for the Fujinon 100-400mm includes the Fuji 70-300mm zoom and the Tamron 18-300mm zoom. In 2024, Fujifilm introduced a 500mm f/5.6 prime lens that, at 1375 grams, weighs about the same as the 100-400mm zoom. However, its physical size (247mm long and 105mm in dimater) is 37mm longer and 10mm wider than the zoom, and its minimum focus distance is 2.75 meters. (For me, the optimum Fujifilm X telephoto would be a high performance compact 450mm f/6.7 or slower lens that takes 72mm or smaller filters, but such a lens is not available.)
I went with the 100-400mm because 300mm is not all that much more reach than the Fuji 50-230mm, and because the 100-400mm has a switch for image stabilization. Before getting the 100-400mm, I had used an adapted manual focus 400mm f/5.6 ED Nikkor lens. The Nikkor lens has some color fringing unless stopped down to nearly f/9, while the Fuji 100-400 can be used wide open. The ability to use the single AF button on the back of a Fuji camera to focus the 100-400 is another advantage over the manual focus 400mm Nikkor.
Fujifilm 1.4x Tele-converter (Fuji XF Mount, Tested 2022)
The Fujinon 1.4x Tele-converter is an expensive little item, but it does not degrade the image as much as old school tele-converters that were made for film cameras. I had an interesting adventure with its front cap when it arrived, and that will be covered below.
To use the Fujifilm tele-converter, turn the camera off, attach converter to lens, then attach the combined lens and tele-converter assembly to the camera. To remove the tele-converter, turn the camera off, remove the combined teleconverer and lens assembly from the camera, then remove the teleconveter from the lens. It appears that the Fuji 1.4x tele-comverter is compatible with the Fujifilm 50-140mm f/2.8 zoom, the 70-300mm zoom, and the 100-400 zoom. When used, it slows the lens f/ratio down by one stop. This happens because the lens focal length is increased 1.4 times, but the lens diameter obviously is not increased.
Adventures with the front cap: The front cap on the reviewed 1.4x tele-converter sample was apparently defective, in that its bayonet claws were considerably less than 1mm thick. This made it very flimsy. When this tele-converter arrived (I bought it second hand), the front cap would only rotate about 10mm at its perimeter and stop, so it would not come off. When it stopped rotating, there was a weak metallic sound, as though a small spring was snapping against something. Therefore, I did not want to force the cap to rotate, just in case it was catching on a contact pin or part of the flat spring behind the lens mount on the front.
After reading various forum posts and making MANY delicate attempts to remove the cap, it finally came off. The cause of the cap not coming off was that half of two (out of the three) bayonet flanges on the cap were broken, and the broken segment of one of the cap's plastic bayonet claws was bent inward, but was still attached by a thin web of plastic. This caused the broken (but still attached) segment of the bayonet flange to hook around one of the contact pins in the teleconverter. On top of that, the sharp edge where the plastic mount claw was broken was also catching on one of the springs behind the claw on the converter's lens mount.
The front cap was made to work again by completely removing the broken tab of plastic on the cap (which was barely hanging on), and then (after the cap was off) smoothing and chamfering the edges of where part the mount claw on the cap had broken off. The flat tension spring behind one of the tele-converter's bayonet flanges was also bent back a little (to where it could catch on a broken cap again), so this was also repaired. This was repaired by removing the lens mount and flat spring plate from the tele-converter, then bending the spring back to its proper positon. (It is good that I did not force the cap, since this could have further bent the flat spring, and maybe even broken it!) The cap has attached and removed OK after all of this, even though parts of 2 out of 3 of the cap's bayonet flanges are missing. It was a lot of drama for a mere defective front cap. It would be better if this cap had been made with bayonet flanges as thick as those on typical body caps.
This cap defect is mentioned in the review because other people have had caps get stuck on their Fuji camera bodies or on tele-converters. The only prevention is to inspect the cap before it is attached, to be sure some of the cap's bayonet flanges are not cracked or broken. If the flanges are damaged, it can be risky to use the cap. I later bought a new Fuji brand front cap for the teleconverter, and its bayonet flanges were just as thin (and flimsy) as those on the first cap. Fuji should improve the strength of the bayonet claws on their front tele-converter caps. The front cap's bayonet flanges are thin and weak.
Wide Angle to Short Telephoto Prime Lenses (Fuji X)
Telephoto and Long Prime Lenses (Fuji X)
Short Focal Length Zoom Lenses (Fuji X)
Tele Zoom and "Super Zoom" Lenses (Fuji X)
Sample Photos with Selected Fuji X Mount Lenses:
(See Chapter 9: "Everyday Pictures with Fuji X Cameras")
12. Performance of Third Party Adapted Lenses Used or Tested to Date (2021)
This subsection covers lenses that are not natively Fujifilm X mount, but that can be adapted to Fuji X mount. The original lens mounts range from M39, to Leica M, to Contax G, to Nikon F.
Fujifilm makes a relatively wide array of lenses, though options at the long telephoto end are somewhat limited or expensive. Reasons for using third partly lenses include obtaining:
- A.) Shorter or longer focal lengths than that available with Fujifilm X lenses,
- B.) Faster f/ratios vs focal length than what is available in Fujifilm X,
- C.) Prime lens of a given f/ratio that is smaller than an equivalent Fuji X lens,
- D.) Higher resolution than what may be available with Fuji X lenses,
- E.) Macro focus at different focal lengths than the Fuji 60-80mm macro lenses,
- F.) Direct (rather than fly by wire) manual focusing,
- G.) Lower cost lenses than native Fujifilm X mount lenses.
The latter is important if one already has lenses from a vintage camera system, since a lens you already have (unless it can be sold for a lot) is more or less a "free" lens.
Some of the lenses reviewed here are also reviewed in the "lens test" sections of my Leica M9 Review page [1] (link at end of this document), but the reviews here are mostly in the context of using a lens on crop sensor cameras such as Fuji X. For reviews of more lenses, or to see reviews of the lenses below in the context of use on a full frame camera, see the same lens test sections of my Leica M9 review web page. It has tests of more third party lenses than the select few tested below, and more detail about some of the lenses that are reviewed below.
![]() |
|
The same type of lens performance tables for visual tests and recommended apertures for each lens are included here. These are shown according to the same column definitions as for Fuji X mount lenses above.
Lens / (Category) Ser.N. ShVid ShAx Sh34 FAFm FA34 UseAt PhAp C/F Notes:
(Ultra Wide Lenses on APS format):
3.6 f/2.8 Entaniya H250 TBD 2.8 2.8 4.0? 14d 14d 2.8-4 1.3 V- 14.3mm ImgCircle
7.5 f/3.5 Bower None - 4.0 4.8 - - 4.8 1.6 G+ Via RAF Adapter
8.0 f/3.5 Samyang None 4.8 3.5 6.8 5.0 4.0 6.8 1.2 G 29mm cov.No Filt.
10 f/5.6 VMHeliar 08721181 5.6 5.6 5.6 6.8 5.6 6.8 1.5 E- f/8 bet. than 11
(Moderately Wide):
28 f/1.4 7Artisans 620186 4.0 2.6 4.0 2.8 2.5 4.0 7.0 V Edge Blm to f/4
28 f/2.0 VC Ultron 8150014 4.0 3.4 4.8 3.3 2.8 4.8 5.8 E- Center OK f/2.4
(Normal)
35 f/2.0 CG Zeiss 8028850 3.6 2.8 4.0 5.6 3.6 4.0 8.8 E H. con. f/2.8 OK
40 f/1.4 VC Nokton 8030691 3.6 2.6 3.4 3.4 2.5 3.4 11.8 V+ Frng.f/1.4~f/3.4
(Short Tele):
50 f/2.0 Zeiss ZM 15868104 3.6 2.8 3.8 3.2 2.8 3.6 13.9 E Grn. frng to 3.6
55 f/2.8 Mic.Nik. 222706 3.3 2.8 3.4 5.0 4.5 4.0 13.8 E Excel. Lens 52F
75 f/2.5 LSummarit 4116261 4.6 3.4 3.8 4.5 3.8 3.8 19.7 E Sharp as 35 Sum.
75 f/2.5 VC CHelar 9021669 4.0 3.4 4.8 4.8 4.0 4.8 15.6 V+ 1:3500 Frng >5.6
90 f/2.8 CG Zeiss 7623930 5.6 3.4 4.5 4.0 3.6 4.5 20.0 E Flawless img 5.6
90 f/2.8 Elmarit-M 3557058 4.0 3.4 4.8 3.5 3.2 4.8 18.7 V Astf3.4,18umELCA
90 f/4.0 L.Elmar-C 2605156 5.6 4.5 5.6 6.8 4.8 5.6 16.1 G Vig.only ex.cor.
(Tele/Long):
135 f/3.4 L.ApoTelyt4290761 4.8 3.4 4.8 4.8 4.5 4.8 28.1 E- Sharp.SomeVFlare
135 f/4.0 L. Elmar 1770945 6.8 5.2 6.0 4.8 4.5 6.0 22.5 V Red-Purple coat.
135 f/4.5 L. Hektor 2406831 6.8 6.3 6.8+ 5.0 4.5 6.8 19.9 V- Single coat; 34f
180 f/2.8 ED Nikkor 411153 4.0 2.8 3.4 3.8 3.0 3.4 52.9 V Excel. Lens 72F
180 f/4.0 VALanthar 9340862 4.0 4.0 5.0 6.3 5.0 5.0 36.0 V AlmostNoCA,49filt
250 f/4.0 L.Tel-Rv2 3051014 5.2 4.4 5.6 8.0 6.8 5.6 44.6 V- Edg50umLCA,V2,LMt
300 f/4.0 ED Nikkor 217294 4.8 4.0 5.6 5.6t 5.0t 5.6 53.6 V+ AF with MF ovrd.
300 f/4.5 ED Nikkor 226301 6.8 5.0 6.3 7.5 5.6 6.3 47.6 V Edg55umRdFngTof/8
300 f/6.3 TokinaMFT 9003670 6.3 6.3 6.3 30prc40prc6.3 52/ob V- Via RAF Adapter
400 f/5.6 ED Nikkor 294892 9.0 6.8 9.0 8.0 6.8 9.0- 44.4 V Fringe f/5.6~9.0
400 f/6.9 Tam.Nestar 40251 11.0 6.9 10.0 22 12 10 40.0 V- Has int. reflect.
500 mm f/8 TamronMir 906694 OkVd 8.0 8.0 60prc70prc8.0 79/ob G GoodContrast
(Telescopes):
360 f/6 TeleVue 60 1001629 6.0 6.0 6.0 - - 6.0 60.0 V+ w/Starizona FFlat
540 f/7.1 Borg 76ED FF None 7.1 7.1 7.1 7.1 7.1 7.1 76.0 V+ HasFieldFlattener
1250 f/10 Celestron C5 TBD 10 10 - - - 10 127.0 G- Fair-GoodContrast
1400 f/16 Questar 3.5 TBD 16 16 - - - 16 89.0 G GoodContrast
2032 f/10 Celestron C8 TBD 10 10 - - - 10 203.2 G- Fair-GoodContrast
Mini Reviews of Each Adapted Lens:
3.0mm and 3.6mm f/2.8 Entaniya HAL 250 Fisheye Lens (Adapted via Custom Adapter)
The Entaniya HAL 250 fisheye lens is a 250 degree fisheye lens that is made by the Japanese company Entaniya, which is also known for making 220, 250, and 280 degree fisheye lenses for small action cameras. They also make brackets to position three GoPro cameras (each with an Entaniya 220 degree lens) to capture full sphere video at 1.5x more pixel resolution than that of each individual cameras. (i.e. 6k full sphere video from three 4k cameras.) They formerly made small stand alone VR cameras. The first was the Entapano, and the second was the Entapano 2.
The HAL 250 fisheye lens was developed before or during 2016 and became available internationally around late 2017 or early 2018. The HAL 250 lens is quite large, being on the order of 12cm in diameter and 10 cm long including the camera mount. Three camera mount adapters are available: C-Mount, Micro 4/3 and Sony A series. An adapter is NOT available for Fujifilm X cameras.
The HAL 250 (as well as newer Entaniya fisheye lenses that cover smaller angles) is a modular system that uses interchangeable rear lens groups to provide focal lenghs of 2.3mm, 3.0mm, and 3.6mm. More rear element groups were later introduced to add 4.3mm and 6.0mm focal lengths. The lenses considered here are those with rear element sets that provide focal lengths of 3.0mm and 3.6mm, both as fast as f/2.8. The image circle diameters are 11.92 and 14.25mm.
The aperture in a HAL 250 lens can be adjusted only by changing small circular aperture stops inside the lens. This is done because using an iris diaphragm would result in large and distracting "sunstars" that have distracting spikes up to tens of degrees long. An aperture stop wheel (like that in some antique film box and bellows cameras) could also provide circular apertures, but a mechanism to rotate it could be complex and expensive, so an aperture wheel is not currently available. To get around the difficulty of changing the internal aperture stops in the field, Entaniya also provides ND filters with each lens that can be used in a rear filter holder.
The HAL 250 has extremely high resolution over its entire field of view. I measured resolution exceeding 300 line pairs per millimeter at f/2.8 on two test samples of the 3.0mm version, though I do not have contrast numbers for this resolution. These findings exceed what one would expect if extrapolating from the MTF plots published by Entaniya. This means that extremely high one and two shot VR images of reasonable dynamic range can be obtained with cameras having 3-4 micron pixels and a "pixel shift" feature (like that in a Panasonic G9 or Fujifilm X-T5) that doubles the effective sensor resolution.
The HAL 250 can capture full sphere images in two shots that are taken in opposing directions. However, the way I usually use the lens is to point it straight up and capture the entire sky and horizon (plus down to 35 degrees below the horizon) in a single shot, since this eliminates any stitching artifacts at the horizon. (I have made and used wide angle reflectors in this way since the mid 1970's.) However, when 250 degrees is sufficient for a subject, I sometimes prefer using the HAL 250 fisheye lens over reflectors because the raw image from the HAL 250 has no obstruction in the sky that would have to be removed via post processing. Also, adding a picture with the lens pointing down captures a full sphere while retaining the advantages of zero stitching artifacts at the horizon.
7.5mm f/3.5 Samyang/Bower MFT Fisheye Lens (Adapted from MFT Mount. 2024)
The Samyang 7.5mm f/3.5 fisheye lens (also branded Bower and Rokinon) is a compact Micro 4/3 format full frame fisheye lens. By full frame, I am obviously referring to the full Micro 4/3 frame, as opposed to a full frame format camera.
The 7.5mm f/3.5 Fisheye lens is described here because it can be adapted to Fuji X cameras via an adapter made by RAF Camera. The lens does not cover the full APS format. Instead, its 180 degree coverage just barely fits within the side to side width of the APS image sensor. This makes it work well for VR imaging, where a 360 degree panorama also has 180 degrees of vertical coverage, to cover a full sphere.
Because of the design of the MFT and Fuji X lens mounts, it is not possible to retain the original rotational orientation of a Micro 4/3 lens when adapting it to a Fuji X camera. The RAF adapter works within this limitation, so the change in orientation is not a weakness of the RAF adapter. Quite the contrary, in that the adapter utilizes the resulting mechanical clearance to allow many (though not all) MFT lenses to be used on Fuji X cameras.
The difference in rotational orientation is not an issue for lenses that do not have integral non-removable petal lens hoods. But since the 7.5mm f/3.5 fisheye does have an integral lens hood petals, the lens must be partially disassembled to remove the integral lens hood, then the lens hood must be modified in order to make the lens work propertly on Fuji X cameras.
Specifically, mounting holes must be added to the lens hood, to allow it to be rotated the same angle that the lens is rotated after being adapted. The lens hood can also have the short side petals cut off in order to image the full corner to corner angle of the MFT lens coverage within the side to side width of the APS format. The RAF adapter should be dedicated to a specific lens because a set screw is used to prevent rotation of the adapter on the back of the lens.
8mm f/3.5 Samyang Proportional Projection Lens (Adapted from Nikon Mount. 2017)
I extensively reviewed this APS format 8mm f/3.5 lens in 2009, not long after it came out. It is designed for SLR cameras. The smaller and faster Samyang/Rokinon 8mm f/2.8 II lens (made in Fuji X mount) is a better choice if only used on Fujifilm cameras, but the older 8mm f/3.5 lens is useful if one also has an SLR cameras and wants to use the same lens on both SLR and Fujifilm X cameras. A link to the review is at the end of this document. [3]
10mm f/5.6 Voigtlander VM Hyper Wide Heliar (Adapted from Leica M Mount. 2021)
The Voigtlander-Cosina (VC) Leica M mount (VM) Hyper-Wide Heliar lens is an extremely wide angle rectilinear (e.g. non-fisheye) lens that covers the full 35mm frame. Like the compact 12mm f/5.6 Voigtlander lens, the inner elements of this 10mm lens are sized for a maximum aperture of about f/2.8, but the iris limits the maximum aperture to f/5.6. This prevents mechanical clipping of the aperture near the corners of the frame at any available aperture. When the 10mm Voigtlander lens is used on a Fuji X camera, the "equivalent full frame" focal length (FL) is 15mm. When used on Micro 4/3, the equivalent FL is about 20mm.
The physical size of the Voigtlander 10mm f/5.6 lens is similar to that of the Fujifilm 60mm f/2.4 Macro lens without its hood, except that the front end of the 10mm has a somewhat larger 67mm diameter. Larger diameter features at the front include the aperture ring and an integral four-petal lens hood. There is no front filter thread. The only options for filters are to use (large) third party square or rectangular filters, along with a third party adapter that fits around the front of the lens. It would have been nice if Voigtlander had gone with a removable hood like that on the 12mm f/5.6 Type 1 lens, since this would have been compatible with much smaller filters and filter holders.
The best coding for this lens (for a Leica M digital camera; coding is irrelevant for a Fuji) appears to be 000001, which is the same coding that works best with the Voigtlander 21mm f/3.5 and f/4 lenses. Corner darkening (on a Leica M) with this coding is only slightly more than that of the 12mm Voigtlander lens.
The 10mm lens performs best at f/6.8 to f/8 on a full frame camera, and at f/5.6 on APS format cameras such as those made by Fujifilm. At f/5.6, the edges and corners of a full frame digital image (such as one with a Leica digital camera) are a bit fuzzy, but this is not the fault of the lens (details below). Full frame digital images also have some lateral fringing toward the edges, but there is almost no fringing on APS format (such as when tested on a Fuji X-T10 camera). Thorough testing of the lens itself (without a digital camera and the associated image sensor filter stack) reveals that the lens actually has very high resolution even at f/5.6, with almost no visible fringing at all - clear out to the outer 1-2mm of the illuminated field. This means that any unsharp edges or fringing in digital images must be caused by a camera's image sensor stack.
Minimum focus of the Leica M version is 0.5 meters, while the version made for Sony focuses down to 0.3 meters. Aperture click stops are at half stop intervals on both versions, but the Sony version has a second ring that can be used to de-click the aperture ring. The Leica M version does not have rangefinder coupling, but it does have a fixed plastic ring at the back that keeps the rangefinder set to infinity while the lens is attached. This is a good feature because it places the rangefinder patch in the center of the picture area. That is useful for centering a subject in the picture, even though the Leica M optical viewfinder is not as wide as the lens. To see the full field of the lens on a camera without live view, Voigtlander offers a separate viewfinder. I personally use an older (and cheaper) viewfinder for the Voigtlander 12mm lens, then simply allow for a slightly wider field of view.
Before acquiring the Voigtlander 10mm Hyper Wide Heliar lens, I looked at several reviews of both it and the Venus Optics Laowa 9mm f/5.6 lens. Both seemed to be quite good, but I decided on the Voigtlander, in part because images from various users appear to show that its aperture blades are more precise and symmetrical between samples. This means that the Voigtlander lens consistently produced fairly symmetrical sun stars.
Laowa makes a faster 9mm f/2.8 lens that is designed for APS format, and it is available in Fujifilm mount. It is called "Zero-D", for zero distortion. However, the 9mm f/2.8 vignettes significantly until stopped down to almost f/5.6, and (based on tests by others) its corner resolution on APS format is not as good as the 10mm f/5.6 Voigtlander lens on the same format.
In 2025, I started using the Sigma 10-18mm f/2.8 lens with the Fuji X system, rather than the Voigtlander 10mm. The Sigma is two stops faster, has about the same physical size, is a zoom lens, and focuses closer. Resolution is about the same as the Voigtlander, but the Sigma has less fringing.
28mm f/1.4 7Artisans ASPH (Leica M Mount. Tested in 2021)
The 7Artisans 28mm f/1.4 ASPH lens is a relatively low priced high speed Leica M mount lens from the Chinese manufacturer 7Artisans. This Leica M mount lens is made in two versions. The first is a conventional version that is intended for use on either film cameras, or digital cameras (such as Leica M9, M240 or M10) that have thin sensor cover glass filter stacks. The second version, the "FE-PLUS", is intended for use with cameras having thicker sensor stacks. If I had to guess, I'd say that the main difference between the two is in the optical spacing, rather than using entirely different lens elements.
I acquired the conventional version because the primary use was on a Leica M9, which has a thin sensor stack. However, test results show that this may not have been the best choice. This was surprising, because based on other reviews, the 7Artisans 28mm f/1.4 lens appeared to have better optical performance on a Leica digital camera than
The 7Artisans 28mm lens has a solid fell to it, but it is also long and heavy for a 28mm rangefinder lens. The length of the 7Artisans 28mm lens is 70mm (from the Leica M lens mount) and the maximum diameter (at the focus ring) is about 59.5mm. If the lens is used on a Fuji X camera, the adapter will add about 10mm to the length. The lens barrel is made entirely of metal.
The black anodized aluminum focus ring has square profile knurling (similar to that on a Leica M lens), but the edges of the 7Artisans knurling are very sharp to the touch, and sharp corners such as these will likely lead to localized shedding of the black anodize finish as the lens is used. The minimum focus distance is 0.7 meters. Oddly, turning the focus feels a little smoother when the lens is rotated to be upside down.
The aperture range is f/1.4 to f/16 in full stop clicks, except that there is no click between f/8 and f/16. The aperture settings get closer together on the ring as the lens is stopped down, but this is not unusual for a lens that is optimized to maintain a relatively circular aperture. One of the good features of the 7Artisans 28mm f/1.4 ASPH lens is an iris diaphragm having 13 curved iris blades. This gives the iris a round appearance at most apertures. Because if this, defocused points of light are round, and the lens can also provide amazing 26-point sunstars that are not too prominent in an image, especially when compared to most lenses with either fewer aperture blades or an even number of aperture blades.
One tradeoff of this type of low cost round iris is that rotational distances between f/stops on the f/stop ring are not linear, so the click stops get closer together at smaller apertures. There is not even a click stop or a number for f/11 between the f/8 and f/16 settings, though the aperture ring position for f/11 can still be estimated. This non-linear spacing for f/stops is not unusual for photographers who remember using "'Pre-Set" lenses that were made in the 1960's and 1970's. (Showing my age here!)
In other respects, the 7Artisans 28mm lens has both good and bad attributes. Most of the negatives relate to varying degrees of incompatibility with Leica M cameras, including some inaccuracy of the rangefinder cam slope. Fortunately, most of the shortcomings don't matter when the lens is used on crop sensor cameras such as Fuji X. However, a few shortcomings can influence performance even on Fujifilm X cameras. These include:
- Spherical aberration prevents critically sharp central images at apertures wider than f/2.6.
The 7Artisans 28mm f/1.4 lens appears to work adequately on some APS (and smaller) format cameras that have live view, provided that the adapters used have enough internal clearance for the large protruding rear element group, and that the camera contact pins have sufficient clearance from the rear lens cell.
On a Fujifilm X-T20 camera, performance of the 7Artisans 28mm f/1.4 ASPH lens is comparable to the Voigtlander 28mm f/2 Ultron lens in many respects. Some field curvature is evident even on crop sensor cameras, but it is acceptable for some flat subjects by f/2.8 to f/4. There is quite a bit of coma until the lens is stopped down to f/2.8. On the other hand, one positive thing is that there is relatively little mechanical clipping of the aperture, even at at f-stops as fast as f/2.
It would be interesting to see how the "FE-PLUS" version of the 7Artisans 28mm lens (which is optimized for thick sensor filter stacks) would work on Fuji X cameras. However, I do not plan to purchase a second one of these lenses, owing to the numerous mechanical issues that were not worked out prior to production. These mechanical flaws may still exist even in the FE-PLUS version.
In the same general price range, the much more compact original version of the Voigtlander 28mm f/2 Ultron (reviewed below) may be a safer bet. The newer (and more expensive) Voigtlander 28mm f/2 Ultron II might be better than the original at wide aperture on a Fuji X camera, but there is no way to be sure without testing it.
In late 2024, I started using the 33mm f/1.4 Fujinon lens, and it was enough better than the 7Artisans 28mm (in every respect except vignetting) that I rarely used the 28mm afterward.
28mm f/2.0 Voigtlander Ultron (Leica M Mount. Tested on Fuji X in 2020)
The Voigtlander 28mm f/2 Ultron is a relatively compact lens for its focal length and f/ratio. It does not perform like a Leica Aspherical lens, but (with a few caveats related to image sensor filter stacks) it holds its own in the general appearance of images it captures. Part of this could be because the VC 28mm f/2 lens has very little susceptibility to veiling flare, which gives its images some snap, even if shooting without the sun to your back. The lens does appear to have some field curvature when used on a digital camera, but it is usually workable for most subjects by about f/4. The f/stop range is f/2 to f/16 in half stop clicks, and the minimum focus distance is 0.7 meters.
With most digital cameras used thus far, the 28mm Ultron lens has radial blur (actually smearing) around highlights that smears inward from highlights that are even half way to the edge of the picture. In many cases, the lens has to be stopped down to f/4.8 to f/5.6 to control this problem.
The radial smearing is caused mostly by the short (about 30mm) optical distance between the lens exit pupil and the focal plane. This causes the light bundle from the lens to intersect the edge of the focal plane at a greater angle from perpendicular. This can cause image smearing with some sensors having birefringent anti-alias (AA) filters, or even with an ordinary sensor cover glass and IR filter. The smearing happens around edges of strongly backlit subjects at apertures wider than f/4 even on the Leica M9 (sensor replaced in 2017), which as no AA filter. The lens itself does not produce this blooming or smearing at apertures slower than about f/2.8, so it should work even at f/2.4 to f/2.8 on film cameras.
It is not known if the newer Voigtlander 28mm f/2 Ultron II will have similar radial image smearing problems on the same digital cameras used to test this original 28mm f/2 Ultron lens.
The diameter of the protruding rear element cell on the Voigtlander 28mm f/2 Ultron lens is 29.51mm (1.162"). This is slightly larger than the 29.36mm (1.156") diameter that will clear the rangefinder mechanism of worst case Leica CL film camera rangefinder measured to date, after accounting for lens mount centering tolerances. However, it does not mechanically interfere with the rangefinder of a Leica M9. Unfortunately, the rear cell does block some of the light path between the M9 light meter cell and the part of the gray shutter blades it takes readings from, so in-camera light metering is not particularly accurate with this lens. For comparison, the rear cell diameter of the 35mm f/2 Summicron ASPH lens, and most other Leica lenses made within the last 25 years, is only 29.1mm.
There have been a few isolated instances of inconsistent rangefinder focus with the 28mm Ultron lens. However, this is not an issue when using the lens on a mirrorless camera that has live view.
35mm f/2.0 Contax G Zeiss Planar (Contax G Mount. Tested on MFT in 2012)
The 35mm f/2 Contax-G Zeiss Planar lens is not the best of the Contax G lenses, but it still performs fairly well. It is a relatively short lens, but the diameter (after adding an adapter) is usually a little larger tham that of medium size Fuji X lenses. The filter size is 46mm and the minimum focus distance is about 0.5 meters. The f-stop range is f/2 to f/16.
The Contax G 35mm f/2 lens has less flare than some modern Voigtlander lenses of similar focal length. Unlike many of the other Contax G lenses, the 35mm has seven iris blades, and each of these is slightly curved. This results in 14 diffraction spikes that are each slightly flared from the blade curvature. An odd number if iris blades, combined with flaring out of the diffraction spikes, makes the spikes shorter and less distracting. I wish more lenses had irises like this. The only improvement to this would be a larger odd number of curved blades, such as 9, 11, or 13. Background bokeh is harsh wide open (bright edges on out of focus highlights) but improves on stopping down. The filter size is 46mm.
At f/ratios of f/2.8 or slower, the 35mm f/2 Contax Zeiss lens can provide images comparable to the 35mm f/2 Leica Summicron ASPH, though it does have to be stopped down about half an f/stop more than the Summicron for the same performance on a given subject. When used with crop sensor or other cameras with relatively thick filter stacks, the Contax 35mm lens may work as well or even better than an equivalent Leica M lens, owing to the longer exit pupil to focal plane distance of the Contax lens. With its iris that consists of 7 slightly curved blades and relatively high contrast, the 35mm Contax-Zeiss is a nice lens. The main drawback for use on a Fuji X camera is having to use cheesy adapters that spin the auto focus (AF) shaft in the lens to focus.
40mm f/1.4 Voigtlander Nokton Classic (Leica M Mount. Tested on Fuji X in 2020)
The compact Cosina-Voigtlander (CV or VC) 40mm f/1.4 Nokton Classic lens is not quite in the same league as some Leica rangefinder lenses, but it isn't bad for everyday photos. It is very compact, being only 55mm in diameter (not counting the focus tab) and 30mm long, as measured from the front of a Leica M camera. (A Leica M to Fuji X adapter adds 10mm to the length.) The filter size is 43mm and the minimum focus distance is a relatively distant 0.7 meters. The f/stop range is f/1.4 to f/16, in half stop clicks.
Unlike the VC 35mm f/1.4 Nokton, performance of the 40mm Nokton compares fairly well with the 35mm f/2 Leica Summicron Asph (with a few caveats), when stopped down to f/3.4 or slower. The Nokton has considerable glow wide open at f/1.4, due to spherical aberration. It gets acceptably sharp in the center (for snap shots) at f/1.7, fairly good in the center by f/2.2, and really sharp in the center by f/2.6. It gets reasonably sharp at the edges by about f/4 to f/4.8, and critically sharm across the frame at about f/6.8. It can provide good images over most of the field on a crop sensor (APS) camera (one without a strong AA filter) between f/2.6 and f/3.4. The manual focus is smooth and reliable.
For digital photography on either crop sensor Fuji X cameras or a full frame Leica M, a slight green fringe is detectable down to f/5.6, but only as color moire on certain subjects. Fringing is otherwise not directly detectable in normal exposures at f/ratios slower than f/3.4, except at the very edge, and this disappears by about f/4. Fringing on defocused background highlights with the 40mm Nokton is not any worse at a given aperture than it is with a Leica 35mm f/2 Summicron ASPH.
Before I acquired the 33mm f/1.4 Fujonon lens, the compact 40mm f/1.4 Nokton was one of the lenses I use most often on a Fuji X camera. This is partly because its field of view is similar to that of a 60mm lens on full frame, and 60mm to 65mm has been a very useful focal length range. (This is based on how photos I take on full frame with a 50mm lens are usually cropped.)
Focus shift in the 40mm Nokton lens is considerable on the Micro 4/3 format (since the small format with its 2x crop factor amplifies the effect) but this has not been much of a problem with either Fuji X APS format cameras or the full frame format of a Leica M. There is a little visible field curvature at apertures faster than f/2.4 on crop sensor cameras, and faster than f/4 on full frame.
The only significant failings of this lens are the afore mentioned field curvature, a relatively long minimum focus distance of 0.7m, and susceptibility to veiling flare unless the front element is shielded from bright light. However, the 40mm Nokton has very little localized flare on the opposing side of the frame from a bright light source, especially if a filter is not used. In fact, it has less of this local flare than a Leica 35mm f/2 Summicron ASPH.
Background bokeh is harsh wide open (bright edges on out of focus highlights) but this gets better by about f/2.4. The Nokton vignettes heavily at f/1.4, probably in part due to the lack of an oversized rear element. The vignetting also effects bokeh, since out of focus blur areas near the edge have an eye shape (rather than being circular) until the lens is stopped down almost 1.5 f/stops on a Fuji X camera.
The field curvature mentioned above becomes obvious beyond about 14mm image height at f/stops faster than f/5.6, and at somewhat faster f/stops on APS format. Here, the edges of the field come to focus in front of the focal plane, so the edges may not reach infinity focus at wide apertures, depending on the sample. However, this is not an issue when using the lens on Micro 4/3 and APS format cameras, since 14mm image height is almost at the very corner of an APS format image.
In short, with the exception of some veiling flare and spherical aberration at wider apertures, the extremely compact Voigtlander 40mm f/1.4 Nokton Classic lens can often provide images comparable to larger or more expensive lenses, provided it is stopped down enough for a given subject. Where the focal length is a good fit to a subject, it is hard to go wrong with the 40mm Nokton. This is especially true in recent years, since the price of the Nokton (used) is close to half the cost of lenses such as the 33mm f/1.4 Fujinon.
The 40mm Nokton is useful on some Fuji X cameras because it is both high speed and compact. In comparisons between various cameras and lenses in a half to 3/4 length portrait (Appendix J in my Leica M9 review) [1], the Nokton did well in terms of the physical aperture size that could still provide a good image. In those comparisons, the Nokton provided a sharp portrait image at about f/2.4. The relatively large physical aperture at which the Nokton became adequately sharp provided the shallow depth of field that is often useful in this type of portrait.
Even though I started using the Fujinon 33mm f/1.4 lens in late 2024, I still use the Nokton on occasion, partly because its 40mm focal length is better for some subjects, and partly because the Nokton lens is physically smaller.
50mm f/2.0 Zeiss Planar ZM T* (Leica M Mount. Tested on LM, MFT in 2013, 2015)
The Zeiss 50mm f/2 Planar ZM is about half the price of a used Leica Summicron, and MTF plots for both show mostly similar resolution versus contrast, though the Summicron appears to be better at the corners. The 50mm ZM lens takes 43mm filters, has a minimum focus distance of 0.7 meters, and has an f-stop range from f/2 to f/16, in 1/3 stop clicks.
The Zeiss 50mm f/2 ZM appears to have an oversized rear element, which should reduce vignetting at wide apertures. Observation of the aperture through the back of a film camera shows that clipping at wide apertures occurs at the front element (with is also oversized) rather than the rear. These oversize elements help reduce overall aperture clipping by the lens barrel. It is a relatively good lens, though it does have some focus shift. Zeiss lenses for Contax and Hasselblad are quite good in other respects, so I went for a Zeiss 50mm f/2 ZM.
Visual tests of this sample (under magnification) show strong green-cyan color fringing at wide apertures, to a degree that would influence white light MTF 20 and MTF 40 contrast levels. Visually, fringing at the center extends up to 2 arc minutes (0.03mm) from a highlight at full aperture and about 1 arc minute (0.015mm) at f/2.3. Fringing is gone at the center at f/2.8 and gone at the corners by f/4. These results were validated in photos taken with the lens. Some of the fringing is similar to that in the 75mm f/2.5 Voigtlander lens, but an important difference is that the Zeiss appears to have only about half as much focus shift.
In photographs, green fringing is obvious around highlights in all parts of the picture at full aperture, even when viewing the image in the camera review screen at moderate zoom levels. When the lens is stopped down to about f/2.5, no fringing is observed in ordinary pictures out to an image height of about 8mm, but it begins to show beyond an image height of 9mm. When the lens is stopped down to f/3.6, outright fringing usually is not visible anywhere in the picture.
Fringing can still be imaged f/3.6, but it is generally limited to a green cast on slightly out of focus thin black features in the immediate background. Such features can still appear mildly green even at f/4, and slightly out of focus thin black foreground features may have a slight magenta cast. The foreground appears to be imaged with more contrast than the background, so if depth of field is relied on, it may be best to focus slightly beyond the middle of the intended DOF range.
After seeing this background fringing effect, it would be fun to put the Zeiss lens head to head with currently cheap f/1.8 to f/2 film camera lenses and see if they have similar foreground versus background color cast issues. I never noticed it with such lenses in film pictures, but digital imaging with modern cameras is more demanding of a lens. For now, it is known that the ZM is good enough that it blows away any of the faster (f/1.2 to f/1.4) SLR lenses I have tested, even when they are stopped down to f/2.
Compared to a Leica 50mm f/1.4 Summilux-M ASPH, the 50mm f/2 Zeiss Planar ZM is slightly softer in the center until it is stopped down to f/2.5. At f/2.8, the Zeiss comes close the Summilux in the center, exceeds its performance between about 8 and 15mm image height, then falls behind again toward the format edges. However, this performance gain is only true if focus shift is accounted for when using the Zeiss lens.
Focus Shift Specifics: A few preliminary measurements of focus shift at a 2 meter subject distance appeared to indicate the following, with best focus at f/2 being the reference point: Best focus (0mm) is at f/2, +4mm (or slightly more) at f/2.5, +8mm at f/2.8, +13mm at f/3.6, and +15mm at f/4. Focus shift at wide apertures appears to get a little worse at closer subject distances.
The Zeiss lens has about two arc minutes of astigmatism and maybe a little coma in and near the corners of full frame at f/2.8 and wider, but I have not observed these aberrations in an actual pictures on either full frame or crop sensor cameras after stopping down to about f/3.6. Combined with the color fringing, this means that the lens should be stopped down to about f/3.6 to get really good image quality over most of the format. I'd hoped for better performance at f/2.5 to f/2.8, but a good image at f/3.6 and slower isn't bad compared to most 50mm rangefinder lenses in this or a lower price range. The lens is better at f/2.8 than at f/2, but just not as good at f/2.8 as it is at f/3.6 or f/4. On crop sensors, it is adequate for some subjects at f/2.5.
There initially appeared to be a bit of field curvature at close distances, because when I focus on something with the rangefinder and then pan over so the subject is near the edge, best focus near the edge is noticeably closer than the subject. It took several shots before I was able to adequately compensate for this.
The good thing is that once proper focus near the format edge is achieved, the Zeiss images have more snap than the edges of pictures with most Voigtlander lenses from the same era that I've tried to date. It is closer to Leica lenses in image quality, though the Leica lenses don't have as strong of fringing at wide apertures. It also has an image quality reminiscent of the outstanding Zeiss 90mm Contax G Sonnar T* lens. There is very little flare under average conditions. This could be due in part to good knife edge baffles on the inner surface of the rangefinder cam, aft of the optics.
Background bokeh is a little harsh wide open (bright edges on out of focus highlights) but the bright edges disappear in the image center by about f/2.5, with the blur circle appearing of relatively uniform brightness. Bokeh wide open is not quite as harsh as with the 40mm VC Nokton, but it is notably more harsh than with the 75mm Leica Summarit-M.
Mechanically, the feel of the 50mm ZM lens is fine, though it doesn't feel like a Leica M lens. Its focus is a little easier to turn than some Leica lenses, to an extent that the light spring force from a Leica camera's rangefinder wheel makes it noticeably easier to turn toward a close focus distance than toward a far focus distance.
The focus tab is a simple bump on the focus ring rather than a finger notch, but it's adequate. It's actually nice in a way because it doesn't protrude as far as a finger notch, making it a little easier to nest in a gadget bag. In addition to the focus tab, the 50mm ZM also has a knurled focus ring, which makes it easier to use on a tripod. The grip at the back of the lens has shallow knurling and is not any wider than the focus ring, so it is harder to mount on the camera than some lenses. The lens accepts the same Voigtlander LH-6 lens hood that fits the VC 40mm Nokton, which is handy.
The aperture clicks are weaker but sharper than in most Leica lenses, but still feel precise. However, the click stops don't quite line up with the index lines on the aperture ring. When mounting the ZM lens on a Leica M9, it feels like part of the lens has to gently wiggle past something toward the upper right of the lens mount if mounted on the camera while focused at infinity, but it doesn't have as much of this unusual feel if focused close before mounting to the camera. However, these mounting quirks don't apply when the lens is used on crop sensor cameras via an adapter.
55mm f/2.8 AI Micro Nikkor (Nikon F Mount. Tested on MFT in 2012)
There is little point in using a 55mm f/2.8 Micro Nikkor at normal subject distances, since 50mm rangefinder lenses are so much smaller. For macro photography, the only real reasons to use a 55mm Micro Nikkor instead of the Fujifilm 60mm f/2.4 macro would be to use direct manual focus (as opposed to fly by wire focus on the Fuji X macro), or if one just likes the look and feel of a vintage manual focus lens.
75mm f/2.5 Leica Summarit-M (Leica M Mount. Tested on LM in 2015)
The 75mm f/2.5 Summarit-M lens is sharp and relatively compact. It takes 46mm filters, has a minimum focus distance of 0.9 meters, and has an f-stop range from f/2.5 to f/16 in half stop clicks. Leica later introduced a 75mm f/2.4 lens that is almost identical in many respects, but it focuses closer - down to 0.7 meters.
In 2021, a used Leica 75mm f/2.5 Summarit-M can occasionally be acquired for not much more than 2 times more than some mint Voigtlander 75mm f/2.5 lenses go for, and not much more than what many Zeiss ZM lenses cost new. Performance of this lens is very good, and it is excellent to amazing when stopped down to f/3.8 or slower.
Summarit M lenses are made with the same maximum aperture in other focal lengths, including 35mm, 50mm and 90mm. An Optical Limits (formerly photozone.de) review of the 50mm f/2.5 appeared to show focus shift and coloration of out of focus background versus foreground that did not seem a great deal better than results from normal and short tele Voigtlander and Zeiss ZM lenses. However, Leica's MTF plots of the 75mm Summarit-M looked really good, and the real world performance of the 75mm appears to be better than that if the 50mm I had seen tests for.
The 75mm Summarit-M lens is very sharp (check out the mantle clock crop in my Lecia M9 review [1]), but the lens is also an odd pairing of high quality Leica optics housed in a lens barrel with focus damping (or should I say, a lack of focus damping) that feels like a 1960's 50mm f/1.9 Miranda lens, and weak aperture ring clicks that don't even feel as good as a low cost 1970's 55mm f/1.8 Mamiya-Sekor DTL lens. Not a Leica feel. Not even a Nikon feel. Not even a Canon FD or a Pentax feel. But at least it's sharp and appears to have minimal flare.
Optically, the 75mm Summarit-M is quite impressive. When sharpness over the entire picture area is considered, it may be the sharpest 35mm format lens I have. Even at maximum aperture, less than 1 arc minute of weak cyan color fringing is visible, and this disappears in the center at f/3.4, with less than 30 arc seconds of fringing remaining at the edges. Fringing visible in everyday subject matter is gone even at the edges by about f/3.8. Beyond f/3.8, the image does not improve dramatically, nor does it need to.
Therefore, out of all Leica mount lenses in this section except 135mm lenses, the 75mm f/2.5 Leica Summarit-M stands out as the lens that can be used at the widest physical aperture size (19.7mm at f/3.8) that will get even an off-center subject tack sharp in a shallow depth of field image. The only real complaint is that the minimum focus distance is 0.9m rather than the 0.7m of the newer version.
At maximum aperture, slightly out of focus thin black background objects appear slightly cyan, while slightly out of focus foreground objects have a slight red to magenta cast. This problem disappears in all but a few subjects by f/4, making results at f/4 and slower predictable. The 75mm appears to have LESS of the foreground and background color artifacts than the 50mm Summarit-M did in the afore mentioned Optical Limits tests. I also have not detected any focus shift, though I haven't as yet taken to photographing rulers with it.
The optics look clear and have good AR coatings. There appears to be a fixed stop inside the lens, about 10mm to 12mm behind the iris. This stop appears to be the cause of most of the relatively high (60 percent at the corners of full frame) off-axis light falloff at full aperture, but it may also be part of why the lens performs so well. It's so sharp I keep wanting to find things to photograph with it!
Bokeh is neutral at wide apertures, and is relatively similar on either side of focus. A very slight brightening of the background blur boundary is visible at maximum aperture, but this disappears by about f/3.2 at the center of the image, with the blur circle then appearing to be of almost uniform brightness.
The filter size is 46mm, and the lens accepts a rigid metal lens hood that screws onto the outside of the lens barrel. A short ring covers the external threads when the hood is not used. (This is something Voigtlander should have made for their 75mm f/2.5.) I decided not to use the hood for now because it has to be removed when changing filters, and another solution for a hood that was much more compact.
The click stops in the 75mm lens aperture ring are so weak that it's hard to tell they are there without being attentive when setting the f-stop. This makes it more difficult to set by feel or in the dark, but for those who take movies with a Leica M240 or other cameras, the weak clicks are not likely to be excessively loud in movies shot in surroundings with average noise levels. Other than that, it has been mostly smooth sailing with this 75mm lens.
75mm f/2.5 Voigtlander Color Heliar (Leica M39 Mount. Tested on LM, MFT in 2013)
The Voigtlander 75mm f/2.5 Color Heliar is a light and compact lens, but has an unusual rigid metal lens hood that must be removed to change filters. The lens isn't particularly attractive with the hood off because the front of the barrel has external threads that accept the hood. The filter size is 43mm and the minimum focus distance is 1 meter. The f-stop range is f/2.5 to f/16, in half stop clicks.
This 75mm lens has some focus shift at wider apertures, as well as a green color cast over thin black aspects of subject matter that are slightly beyond the distance of best focus. The latter could be due in part to relatively bright color fringing that extends out to about 1 arc minute from highlights at maximum aperture, and that does not disappear until about f/5.6.
The table at the beginning of this section indicates f/4.8 as a recommended aperture for this lens. However, this is for the full 35mm format. Since edge resolution is what drove the recommendation for f/4.8, the lens can be used on smaller formats (Micro 4/3 or APS) at wider apertures, as long as a little color fringing is acceptable. On crop sensors, the lens can be used at f/ratios as fast as f/3.4 or f/4 for decent 12-16 MP images. It can be used at even wider apertures for good movies on these formats.
90mm f/2.8 Contax G Zeiss Sonnar (Contax G Mount. Tested on MFT in 2012)
The Contax G 90mm f/2.8 Zeiss Sonnar lens has both high resolution and contrast. I first acquired this lens to use on Micro 4/3, and it takes pictures so sharp at f/5.6 that the small 4.3 micron camera pixels (and the in-camera color mapping in the Olympus E-P2 camera I was using at the time) were the limiting factors. The only flaws are that it has some purple fringing at wide apertures, and one has to use cheesy adapters that spin the auto focus (AF) shaft in the lens to focus. But in fairness, the lens was not intended for cameras other than the Contax G.
This 90mm Zeiss lens is better than all of the Leica 90mm f/2.8 and f/4 lenses than have been tested to date, but it only has a slight edge over the 90mm f/2.8 Elmarit-M in the region around 14mm image height at apertures wider than f/5.6. When both are stopped down to f/5.6, the performance is about equal. Performance at 14mm image height is not all that relevant to Fuji X and other crop sensor cameras, since 14mm image height is near the very corner of the frame,
The Contax 90mm lens is so good that I was going to get it converted to Leica M rather than getting a Leica 90mm lens, but I could not bring myself to have it chopped up for this. Also, I found that I'd rather have a lens with a real infinity stop for landscapes, so I later used a Leica Tele-Elmarit-M, which has slightly less contrast and color saturation. Color fringing versus aperture is similar on this 90mm Zeiss and on the Tele Elmarit-M discussed below. I later switched to a Leica 90mm f/2.8 Elmarit-M (reviewed below), mainly because it has less flare than the Tele-Elmarit-M.
It would be neat if the 90mm Contax Zeiss optics lens could be re-introduced in one of the Zeiss ZM lenses, provided that the inner rangefinder cam diameter is kept closer to that of older Leica lenses.
90mm f/2.8 Elmarit-M (Leica M Mount. Tested on LM, MFT in 2015)
The 90mm f/2.8 Elmarit-M lens performs far better than the original 90mm f/2.8 Elmarit. It also performs better than any version of the Tele-Elmarit-M or the 90mm f/4 Elmar-C. MTF plots for the 90mm f/2.8 Elmarit-M appear to show that it could perform as well or better than the Contax G 90mm f/2.8 Sonnar, with the exception of parts of the image around 14mm image height. (But as mentioned in the Contax 90mm review, performance at 14mm image height is not very relevant to APS format.)
The off-axis area of reduced resolution appears to be caused by a combination of slight astigmatism and field curvature. This is supported by testing, where the Leica lens equals the Contax Zeiss lens in all areas except the region around 14mm image height. Here, the Zeiss has a slight edge until both lenses are stopped down to f/5.6. Then, they both perform about equally.
The central image of the 90mm Elmarit-M shows considerable fringing in visual optical tests when used wide open, but in real world photos, only slight fringing has been observed. Usually no fringing is visible in ordinary photos at f/3.4. If a subject has strongly backlit thin features, fringing on these is all but gone at f/4.8.
Contrast of the 90mm f/2.8 Elmarit-M is similar to that of the Contax Zeiss lens, and higher than that of either version of the Tele-Elmarit. Contrast is about the same as that of the 90mm f/4 Elmar-C lens. The aperture ring of my sample has fairly loose clicks that do not feel very precise, but this could be due to the lens sample being almost 20 years old and heavily used.
The outer dimensions are about 55mm outer diameter by 76mm long. It takes 46mm filters and the minimum focus distance is 1 meter. The f-stop range is f/2.8 to 22, in half stop clicks. The built-in lens hood is longer than the inadequate built-in hoods on Leica 50mm lenses, but is still a little short for a 90mm lens. This is particulary true, given the internal lens barrel reflections. Internal reflections are covered in my Leica M9 (and Leica Lens) review [1]. The lens has not been tested for "bokeh fringing", but I have not seen it in photos taken to date.
Oddly, the 90mm Elmarit-M has some astigmatism that is visible at apertures wider than about f/4, while the older Tele-Elmarit M has no observable astigmatism even at the edge of the frame. The older Tele-Elmarit-M also does not have the reduced resolution in the region around 14mm image height, so the tele version could actually be slightly better for portraits at f/3.4 to f/4, where a subject's eyes are more than about 10mm from the center of the frame.
Somewhat like the 90mm Tele-Elmarit-M, the inside of the 90mm Elmarit-M rear element cell and rangefinder cam have surfaces that are smooth enough to reflect considerable stray light onto the focal plane, which lowers contrast. This barrel related flare is not as bad as that of the 90mm Tele-Elmarit-M, but it is more than that of the 75mm Summarit-M. Contrast of the 90mm Elmarit-M could be slightly higher if the rear element cell had a knife edge baffle near the rear element, and if one or two knife edge baffles were used just forward of the rangefinder cam surface. Other than that, the 90mm f/2.8 Elmarit-M appears to be the best of the Leica 90mm f/2.8 lenses for most applications.
90mm f/4.0 Leica Elmar-C (Leica M Mount. Tested on LM, MFT in 2019)
The 90mm f/4.0 Elmar-C lens was made primarily for the Leica CL, which is a compact, moderate cost Leica M-mount film camera that was made in the 1970's. Unlike Leica M cameras, the Leica CL was a collaboration between Leica and Minolta. In fact, some versions were labeled "Leitz Minolta CL" rather than "Leica CL". A later version of the camera was the Minolta CLE.
As for the 90mm f/4.0 Elmar-C lens itself, its physical size and its weight are almost identical to the 90mm Tele-Elmarit-M (Type 2) lens mentioned above. It even has the same look in terms of the focus and aperture rings. It is an unassuming little lens, and is one of the lowest cost used Leica M lenses available. The filter size is 39mm, but the thread pitch 0.75mm, which is different than the 0.5mm filer threads used on other Leica lenses having the same filter thread diameter. The minimum focus is 1 meter and the f-stop range is from f/4 to f/22.
The tested sample of the 90mm lens has good optics with the exception of slight clouding on what appears to be the second element. The lens is also coated, though the coatings are not quite as good as those on the 90mm Tele-Elmarit-M mentioned above. However, the coatings are better than most lenses of its era, with the coatings on various elements reflecting white light in a different color, rather than the blue tint seen on reflections from many lens coatings from that time.
At maximum aperture, axial images from the lens have slight (about 30 arc seconds) of color fringing that is orange on one side of focus and purple at both best focus and on the other side of focus. This color disappears from the in focus image by f/4.8 and is not visible in even defocused images by about f/5.6. The edge of the frame has about 1 arc minute of color fringing wide open, which is reduced to 30 arc seconds by f/4.8, and is all but gone at f/5.6. I did not get to test the lens for field curvature, so the following will assume that it is minimal.
The build quality seems almost equal to the 90mm Tele-Elmarit-M in almost every way, though the focus was a bit stiff on the tested sample. The rangefinder coupling cam differs from that of most Leica lenses, being a sloped surface that is milled into the cam, as opposed to a flat-backed cam that moves forward as the lens is focused. The inside diameter of the cam is quite large, to an extent that it does not engage much of the rangefinder focus coupling wheel in a Leica CL camera. This is probably due in part to the need to reduce vignetting that the cam can cause in the outer 2mm of the frame corners until the lens is stopped down to about f/6.8.
The optics of a pristine 90mm Elmar-C should produce minimal flare under average conditions. Flare is possible when a bright light source is under 20 degrees outside the edge of the picture (even when the hood is used), but this is due to reflection from inner components of the lens housing and the inside of the rangefinder cam. This situation is similar to that of the 90mm Tele-Elmarit-M, though slightly less severe due to sharper baffle thread peaks in the Elmar-C lens.
About half of the flare caused by reflection from mechanical parts in the Elmar-C is due to reflection from metal surfaces in front of the rear element. The lens does not have knife edge baffles like some of the older Leica lenses. Considerable fare due to reflection from mechanical components seems specific to the Leica 90mm lenses tested thus far, since I have not seen as much flare from mechanical components in shorter or longer focal length M lenses.
The 90mm Elmar-C lens has 39mm filter threads, but the pitch is the afore mentioned 0.75mm rather than the 0.5mm pitch of E39 filters. The intended way to use filters on the Elmar-C is to use a Series 5.5 filter holder to secure a Series 5.5 filter in front of the lens. (Series type filters are not threaded, and are held in place with threaded retaining rings that screw into a lens.) A compact and well designed rubber hood also has the means to hold a Series 5.5 filter in front of the lens. Some E39 filters can be used directly on the lens, but only if the filter is not screwed in past a point where resistance is encountered.
In conclusion, the 90mm f/4 Elmar-C obviously lacks the f/2.8 maximum aperture of the 90mm Tele-Elmarit-M, and it is not as sharp in the center versus f/ratio as the Tele-Elmarit-M until it is stopped down to f/5.6. However, since both lenses must be stopped down to between f/4.8 to f/5.6 to get good edge sharpness, there is little difference in the quality of the images they provide at f/5.6 and slower f-stops.
For landscapes, the only drawback of the 90mm Elmar-C is the vignetting in the outer 2mm of the corners. If the lens is stopped down to f/5.6, and the extreme corners of the image will be cropped out or processed, the Elmar-C will provide excellent images for a fraction of the cost of most other Leica brand lenses. If the lens is stopped down to f/6.8, it will not exhibit as much corner vignetting. However, the vignetting on full frame is not an issue for Fuji X APS format cameras.
135mm f/3.4 Leica APO Telyt-M (Leica M Mount. Tested on LM, XF, MFT in 2020)
The 135mm f/3.4 APO-Telyt-M is Leica's ultimate 135mm lens, at least optically. Its mechanical attributes are a little bit lacking in comparison to most older Leica 135mm lenses.
For example, the tested sample has just enough backlash in the helical focus threads to cause it to focus slightly past infinity when pointed up, but just barely focus to infinity when pointed sideways. The difference in focus is so slight that pixel peeping is required to see it, but it is there, and it is something that should be accounted for when using the lens for astrophotography.
The field of best focus is nice and flat even at full aperture, but a little coma is visible in star images at the very edge of the frame for apertures wider than f/4.5. There is slight focus shift, with the area of best focus moving slightly closer to the lens as it is stopped down. The focus shift is most pronounced between f/3.4 and f/4.8.
In general, the Leica 135mm APO Telyt-M provides a given quality of image at about an f/stop wider aperture than is the case for most of the other Leica 135mm lenses. The APO provides a good image wide open at f/3.4, and an excellent image at f/4.8, while most of the other Leica 135mm lenses have to be stopped down to slightly past f/5.6 or even f/6.8 to produce what I'd call an excellent image.
The exception is the relatively large and heavy Leica 135mm f/2.8 Elmarit. It also produces an excellent image at f/4.8, though at f/4.8, it is susceptible to a little fringing on images of bright highlights or strongly backlit subjects.
On the other hand, the f/2.8 Elmarit, when used at f/4.8 or slower, has less obvious color fringing (spherochromatism, which some informally refer to as "bokeh fringing") on slightly out of focus highlights than is the case for the APO Telyt at the same aperture. This is partly because the 135mm Elmarit is not as highly corrected as the APO, so its color fringing at f/4.8 is more spread out, making it look less pronounced than with the APO. This may seem counterintuitive, but this is because the fringed color is spread out over a wider area with the Elmarit, making it dimmer and less visible under some conditions. (This subject is covered more in Appendix J of my Leica M9 and Leica lens review page [1].)
Rangefinder focusing with the 135mm APO Telyt-M does not seem to be quite as repeatable as it is with my 135mm Elmar and Elmarit lenses. However, rangefinder focusing is not an issue when using a Leica M lens on Fuji C cameras.
Like some other 90mm or longer Leica lenses, the inside of the rangefinder cam section lacks knife edge light baffle stops, so flare will result when the sun is slightly outside of the picture, where its light can reflect off the relatively smooth inner back end of the lens barrel, then get scattered toward the focal plane. (Some Leica 90mm lenses also have this problem.) Light baffling features in forward parts of the 135mm APO are much better than those at the back.
In spite of its possible minor mechanical shortcomings, the Leica 135mm f/3.4 APO-Telyt-M lens is a worthwhile upgrade from older 135mm Leica lenses, provided that A.) one needs to use a 135mm lens at wide apertures, and B.) its cost is within one's budget. The lens also works well on many other crop sensor and full frame mirrorless cameras.
135mm f/4.0 Leica Elmar (Leica M Mount. Tested on LM, XF, MFT in 2020)
The 135mm f/4 Elmar lens is better on the edges at wider f-ratios than the 135mm Hektor lens below, but both are of similar image quality when stopped down to their optimum apertures. The Elmar is pretty sharp even on the edges just past f/5.6 (to about f/6.0), and the whole format is almost flawless at f/8. The lens provides really good images on crop sensor cameras by f/5.6 to f/6.
If one is pixel peeping, the f/4 Elmar can achieve slightly higher edge resolution and edge contrast than the f/4.5 Hektor. The front of the Elmar does not rotate while focusing, but the focus on my sample does not feel quite as smooth as the Hektor. The minimum focus distance is 1.5m and the filter size is 39mm. The f-stop range is from f/4 to f/32. The lens does not have modern multi-coatings, but still appears to have good contrast.
135mm f/4.5 Leica Hektor (Leica M39 Mount. Tested on LM, MFT in 2013)
The 135mm f/4.5 Hektor lens has a minimum focus distance of 1.5m and the iris stops down to f/32. Older versions like mine have the M39 screw mount thread use 34mm filters, while some newer ones have an M mount and use larger 39mm filters. The Hektor lens sometimes gets a bad rap in reviews. However, I've found the single coated (rather than uncoated) version to be quite good when used at f/ratios slower than f/6.8.
The front of the lens rotates as the lens is focused, so this needs to be compensated for if using a polarizing filter. The damping and feel of the focus on the Hektor is among the best I have experienced, and the Hektor can be acquired for a song compared to most other Leica lenses. Examples of the 135mm Hektor performance are shown in my Leica M9 (and Leica M lens) review page [1]. Examples include backlit fence wires imaged from 200 meters, and some crescent moon photos.
180mm f/2.8 Nikon ED Nikkor (Nikon F Mount. Tested on LM, MFT in 2013)
This lens is mentioned because its fast f-ratio and relatively good correction of chromatic aberration make it relatively good for astrophotography. It can be used for good astro photos in the f/3.4 to f/4 range. It can also be used on Leica M and many mirrorless digital cameras via an adapter. It will not be rangefinder coupled, but that will not be an issue for astrophotography if its infinity stop (or mark, in samples with no infinity stop) and the adapter are properly calibrated. This fast 180mm lens was used for many of the nebula photos in the astrophotography section of my Leica M9 review web page [1].
180mm f/4.0 Voigtlander APO Lanthar (Nikon F Mount. Tested on LM, MFT in 2016)
The Voigtlander 180mm f/4 APO Lanthar is an outstanding lens, especially for crop sensor cameras. This extraordinary lens sold for only about $400 when it was in production years ago, but it was discontinued after a short time, so not many were made. Too bad, since it's a great lens.
After production stopped, the price of a used 180mm Lanthar went through the roof, with some selling for upwards of 2-3 times the new price. Some samples have noticeable aperture blade looseness and asymmetry.
I had read reviews that said the Voigtlander 180mm APO Lanthar did not perform very well at long subject distances. This was initially true of my sample, until I quickly discovered that the reason for this was that the lens only focused to about 150 meters away when the focus ring hit the infinity stop. This may not sound like much, but it has quite an effect on the resolution of landscapes at wider apertures.
Infinity stop calibration is more obvious in the Lanthar than with other lenses because this lens is so sharp on the subjects it is focused on. The lens also has slight spherical aberration at infinity, which makes optimization of infinity focus even more important. The lens focuses all the way down to 1.2 meters, so optimum performance was probably designed for the middle of the focus range.
After the infinity stop calibration (and adapter thickness) issues were corrected, the lens took extremely sharp and contrasty landscapes. In fact, it takes sharper landscapes than any lens longer than 90mm focal length I have ever used. It is the sharpest tele I have ever had on a Nikon SLR.
The 180mm Lanthar is remarkably free of color fringing. The only color fringing I ever saw on an in-focus subject was a little faint color around a very over-exposed highlight. In visual tests, the lens has some lateral red fringing toward the edges of the field, but I have not seen this fringing in any ordinary photos thus far. I did get a little of it to show by positioning the moon at the edge of the frame and overexposing it several f-stops, but that is not a normal situation.
The filter size is 49mm, and the length (on a Nikon) is only about 83mm, not counting a hood. The hood is absolutely necessary because the lens can flare even if the front element is illuminated from a 45 degree angle. Minimum focus is really close, at only 1.2 meters. In fact, due to the compact telephoto design and long focus travel, the effective f-stop changes by almost a full stop at the minimum focus distance! The glass looks clear, and does not have a yellow cast that some associate with prolonged proximity to Lanthanum glass.
The lens is small and light enough that it does not look or feel at all out of place on a Leica M camera, and framing in the M is just a matter of leaving a generous margin inside the 135mm frame lines. As with the 180mm Nikkor lens, the 180mm Lanthar can be used on a Leica M via a customized adapter. The lens obviously is not rangefinder coupled, but the hardware and techniques mentioned for adapting the 180mm Nikon lens can be used to enable framing and proper focus at long subject distances.
The only weak points of this lens are slight field curvature and vignetting at full aperture, plus the afore mentioned aperture blade asymmetry in the tested sample. Vignetting is obvious in a full frame camera at full aperture and does not reach acceptable levels on a full frame camera until the lens is stopped down to about f/5. Some aperture clipping persists until the lens is stopped down to roughly f/6.3 or f/6.8. Vignetting is not an issue for small format cameras such as Fuji X APS format and Micro 4/3 cameras, but it is for full frame. Strong points of the 180mm lens include close to Leica M APO lens performance levels and a compact size.
A brief comparison of the 180mm APO Lanthar on a full frame camera shows that the Lanthar bests the Leica 180mm f/4 Elmar-R at all f-stops wider than f/8, but performance is similar at slower apertures. Compared to the 180mm f/2.8 ED Nikkor, the APO Lanthar is sharper than the Nikkor at f/4, but the Nikkor image looks better due to less vignetting. At f/5.6, the Lanthar is slightly sharper and has a little more zip than the Nikkor. Both lenses perform about the same at f/8 or slower.
On APS and Micro 4/3 formats, the 180mm f/4 APO Lanthar achieves astounding performance at f/5.6, to the extreme that the 3.8 micron camera pixels (including color mapping) in a 16 MP Panasonic GX7 proved to be the limiting factor for resolution. It is a nice little lens.
250mm f/4.0 Leica Telyt-R version 2 (Leica R Mount. Tested on LM, MFT in 2015)
The Leica 250mm f/4 Telyt-R Type 2 lens is an improvement of the first version in almost all respects except vignetting and physical length. The improvements are both optical and mechanical. The physical length of the Type 2 version is almost 5 cm longer, but its color fringing is a relatively dim purple, as opposed to the strong red fringing of the Type 1.
The Type 2 version has a large rotating tripod socket with detents every 90 degrees, rather than the small fixed tripod interface of the first version. This is a nice feature, but it does have a slight amount of play owing to its use of a quick release detent lock rather than a solid rotation lock screw or clamp.
This second version 250mm f/4 Telyt-R focuses down to 1.7 meters, compared to 4 m for the original. Focus damping is not as good as the Type 1, but is adequate. In addition, the version 2 lens is a little lighter and takes standard E67 (67mm) filters. As with the original 250mm, the version 2 lens has a built-in hood that is actually long enough to be useful. Sliding the hood is a little stiff in my sample, however.
Color fringing is considerably less than that of the original 250mm Telyt-R. The new version takes acceptable pictures wide open at f/4, and does even better at f/4.8, since central color fringing is better controlled. Vignetting is fairly obvious until the lens is stopped down to about f/5.6. Measurable mechanical aperture clipping persists in the image corners until the lens is stopped down to about f/8.
The entire full frame picture is pretty good at f/5.6, which is half a stop faster than where the original version achieves similar performance. It has slightly less fringing at f/5.6 than even a Hasselblad 250mm f/5.6 Sonnar T* lens, and the images are extremely good at f/6.8.
However, owing to vignetting, the version 2 Leica lens should be stopped down to f/6.8 (for full frame) when there is much sky in the picture. Other than vignetting, the Type 2 version 250mm f/4 Telyt-R lens is as good as the 300mm f/4.5 ED Nikkor in many respects. And it is smaller.
On crop sensor cameras such as Fuji X or Micro 4/3, the Leica 250mm f/4 T2 lens can take good pictures at f/4.8, and excellent pictures at f/5.6.
300mm f/4.0 Nikon ED Nikkor (Nikon F Mount. Tested on MFT, FX in 2024)
The Nikon 300mm f/4.0 ED Nikkor lens has slightly better performance than the older f/4.5 version, though it has slightly more flare and some mild ghosting. It has internal focusing and a solid but relatively low profile rotating tripod mount.
The 300mm f/4 ED lens is sharp at wide apertures, and works well on APS digital cameras by f/5.0. Wide open at f/4, it rivals the newest non-APO version of the Leica 250mm f/4 Telyt-R in the center of the field. At the edge of the frame, the 300mm f/4 ED Nikkor does better at a given f-stop than the Leica lens. The minimum focus is about 2.5 meters, which is adequate for many subjects. The filter size is 82mm. Unlike the older 300mm f/4.5 ED Nikkor, the f/4 version has an adjustable infinity stop and a filter drawer.
300mm f/4.5 Nikon ED Nikkor (Nikon F Mount. Tested on LM, MFT in 2016)
The Nikon 300mm f/4.5 ED Nikkor has internal focusing and a very solid rotating tripod mount. It is sharp at wide apertures, but wide open, it is not as sharp in the center as the newest non-APO version of the Leica 250mm f/4 Telyt-R is at the same aperture. At the edge of the frame, the 300mm f/4.5 ED Nikkor does better at a given f-stop. The minimum focus is about 2.5 meters, which is adequate for many subjects. The filter size is 72mm.
Even though the new version Non-Apo Leica 250mm lens and the Hasselblad 250mm Sonnar lens are about as good, I find myself resorting to the 300mm ED Nikkor when photographing subjects such as earthshine on the crescent moon that reveal chromatic aberration in the other lenses. Here, the ED Nikkor at f/5.0 to f/5.6 does as well as the Leica or Hasselblad lenses do at f/6.3 to f/6.8. Being able to use the lens at up to a full f/stop wider aperture is important for dim subjects that are next to small highlights which reveal strong chromatic aberration when a given lens is used at too wide an aperture.
The 300mm f/4.5 ED Nikkor would be used instead of all other lenses in the 250 to 300mm focal length range if it was not for the slightly sharper central resolution of the newer Leica 250mm lens (reviewed above), the smaller envelope of some of the other lenses, and the fact that the 300mm ED Nikkor lacks an infinity stop. The extra resolution of the Leica 250mm f/4 Version 2 lens gives a digital picture some extra snap in situations that do not make its chromatic aberration obvious. The Leica lens is also a little smaller, though it is heavier.
The 300mm f/4.5 ED Nikkor provides really good images at f/6.8, which is almost a full stop faster than the f/9 aperture at which the longer 400mm f/5.6 ED Nikkor provides similar image quality.
300mm f/6.3 Tokina MFT Mirror Lens (Adapted from MFT Mount. 2024)
The Tokina 300mm f/6.3 mirror lens is made only for Micro 4/3 mount, but its illuminated field is large enough to just barely cover the larger Fuji X APS format. It was worth adapting this lens because it has slightly better performance than the Samyang 300mm f/6.3 mirror lens. The filter size of the Tokina lens is only 55mm. It was adapted to Fuji X via the RAF Camera MFT to Fuji X Adapter. This adapter should be dedicated to a specific lens because a set screw is used to prevent rotation of the adapter on the back of the lens.
The Tokina 300mm lens was also adapted to the Pentax Q and Q7 cameras via a RAF Camera adapter. The lens is just barely sharp enough to be useful for HD video with the small format (1/2.5" and 1.7" sensor size) Pentax Q series cameras.
400mm f/5.6 Nikon ED Nikkor (Nikon F Mount. Tested on LM, MFT in 2014)
The Nikon 400mm f/5.6 ED Nikkor lens has a lot of reach, and was used for some of the hawk pictures in my Leica M9 review web page [1]. It performs best when stopped down to about f/9.5, though I have gotten good results at f/6.8 on some occasions. As with the 180mm Nikon lens, it can be used on Leica M and other mirrorless cameras via an adapter. The filter size is 72mm and the minimum focus is about 4m.
The position and size of the tripod socket on this lens is relatively optimum for reducing camera shake from camera shutters. The 300mm f/4.5 ED Nikkor (reviewed above) is also a good lens. Like the 400mm Nikkor, it has to be stopped down about a full stop for really sharp results.
Of the long focal length lenses listed here (not counting telescopes), the 400mm ED Nikkor lens has consistently provided the best lunar images when used on a Leica M9 or Fuji X or Micro 4/3 cameras, provided that it is stopped down to f/9.5. This may be due in part to the reduction in camera shake that is provided by its relatively large tripod mount. The user-adjustable infinity click stop also helps.
One runner up for good lunar images is the 450mm f/8 Soligor T2 mount lens (not described separately). However, this lens must be used at slower f-stops than is the case for the 400mm f/5.6 ED Nikkor. Camera shake is the main thing that limits resolution with the 450mm lens.
400mm f/6.9 Tamron Nestar (T2 Mount. Tested on MFT in 2016)
The old Tamron 400mm f/6.9 Nestar is noted because it can collapse down to only 18 cm long, not counting the camera adapter. Combined with a 62mm filter size, this makes the lens small enough to fit in a gadget bag along with other lenses.
If the stowed length is not important, Tamron also made f/6.8, f/6.9, and f/7.5 non-collapsible versions. Even wide open, these slower 400mm Tamron lenses, if at least single coated, will usually provide sharp, high contrast images compared to the faster 400mm f/6.3 lenses by Astranar, Spiratone, etc.
The only shortcomings are that light falloff (vignetting) in the corners is severe enough on full frame that it will be obvious when the aperture is wider than about f/16. (However, the vignetting is not an issue for a crop sensor camera.) The tripod mount surface is also tiny, which can lead to camera shake.
500mm f/8 Tamron Mirror Lens (Nikon F Mount. Tested on MFT in 2016)
The Tamron 500 mm f/8 Adaptall lens is a compact but sharp mirror lens that can focus down to about 1.7 meters. The filter size is 82mm. The lens has an oversized front aperture that is a little larger than the 67 mm diameter area that is utilized for imaging at the center of the focal surface. This additional aperture is used
only for off-axis parts of the image. This reduces vignetting but does not completely eliminate it.
Resolution and contrast are comparable to a heavier 500 mm f/8 Nikkor-C mirror lens, though sharper photos may result from a Nikkor because it has a heavier tripod mount. Flare is more consistent than most mirror lenses, so it can capture adequate images of the crescent moon with earthshine.
There is some variation between samples of the Tamron 500 mm lens. The best samples are almost diffraction limited at the center of the image, while others have visible astigmatism or asymmetrical aberrations. However, samples with such aberrations still tend to produce central spot sizes less than twice the size of what the Airy disk would be in a diffraction limited image.
There are at least two versions of the Tamron 500 mm f/8 lens. One has a rotating tripod mount, and the other does not. There is also a difference in how the Adaptall mount receiver assembly attaches to the back of each version. A 350 mm f/5.6 version of the Tamron Adaptall mirror lens was also made, but it is not evaluated here due to lack of access to one, and its larger central obstruction.
Telescopes are only briefly reviewed in this document. A separate cumulative review of about 25 telescopes is in work, but it is not known when it will be finished.
360mm f/6 TeleVue 60 (60mm Aperture f/6. Tested on XF, PQ in 2018)
The TeleVue 60 is a 60mm aperture f/6 two element ED refractor telescope. It is not currently used with a Fuji X camera because it has a lot of field curvature. I have been looking for a suitable field flattener, but have not found one yet. In the meantime, I use a tiny Pentax Q camera (which as a smaller sensor) on the TeleVue 60. Stay tuned for updates if I can find a compatible field flattener!
540mm f/6.6 Borg 76ED (76mm Aperture f/7.1 w/field flattener. Tested on XF in 2020)
The Borg 76ED is a 76mm f/6.6 two element refractor telescope. It has some field curvature, but it is suitable for some types of photography with crop sensor cameras. Unlike the situation for the TeleVue 60, Borg makes a 1.08x field flattener that is compatible with the 76ED. When the field flattener is used, the Borg 76ED works as a 540mm focal length f/7.1 telescope.
The excellent wide field photographic performance of the Borg 76ED telescope is obvious from looking at photos in the "Astrophotography" chapter if this review. Most of the photos were taken with this telescope.
1250mm f/10 Celestron C5 (127mm Aperture f/10. Tested on LM, XF in 2019.)
The Celestron 5 (a.k.a. C5) is a medium size Schmidt-Cassegrain telescope (SCT) that was originally available as either a telephoto lens or a fork mounted telescope. In recent decades, it has also been available on German equatorial mounts and single arm manual and computer controlled mounts. It is billed as a 127mm aperture, f/10 telescope, but its focal length is specified as being 1250mm rather than 1270mm.
The C5 is fairly easy to set up for photography, but vintage versions cannot easily be separated from the fork mount while out in the field. The vintage Celestron 5 fork mount is heavy enough that precise balancing is not required for photography.
1400mm f/15.7 Questar 3.5 (89mmAperture f/15.7. Tested on LM, XF, MFT 2014-2019)
As of when this was written, the Questar 3.5 telescope is one of only a few telescopes that I have used to date with a Fuji X camera. (The others are a Borg 76ED, Celestron 5, and Celestron 8.) This is due in part to the small size of the Questar, combined with its 1400mm focal length. I still also use a Micro 4/3 camera (Panasonic GX7) on a telescope because its flip-up EVF is easier to look into when the telescope (and camera) are pointing almost straight up.
For its size, the Questar 3.5 is one of the most expensive telescopes ever made, but compared to the cost of some higher end digital cameras and lenses, the price does not seem as out of line.
It is a pleasure to use a Questar for visual applications, though it is not quite as fun to take pictures through one. However, small digital cameras radically simplify taking pictures through a Questar (or almost any other small telescope) because a small and light camera does not always require adding counterweights to the telescope.
A Gitzo Studex (or similar) tripod with a large head is adequate for visual use of the Questar, as well as basic astro imaging with a Fuji X-Tx0 series camera. A larger tripod (such as a large Davis and Sanford) is better for more advanced photography or heavier cameras. The Duplex Questar can be removed from its mount and used directly on a tripod for terrestrial photography.
The fork mount of the Questar telescope is a little less stable than the larger Meade 2045 fork mount or vintage Celestron C5 and C8 fork mounts, in that accurate sidereal tracking on the Questar is very fussy about the use of proper counterweights. Because if this, it can be somewhat painful to set up for piggyback photography. In addition, special photo accessories are required because the Questar does not use the same camera or eyepiece interfaces as other telescopes. (Back when I could do machining, I made my own Questar accessories that were faster and easier to use.) I overcame some of the balance issues for a Fuji X camera by using an unusually short camera adapter on the back of the telescope, which reduces the need for counterweights.
Since the late 1980's, the Questar sidereal drive in most new models has been battery powered, requiring only a single 9-volt battery to run it for up to 24 hours. This battery powered drive can be retrofitted to older Questar 3.5 telescopes by Questar, but at considerable cost.
2031mm f/10 Celestron C8 (203.2mm Aperture f/10. Tested w/S707 2004, XF 2020)
The Celestron 8 (a.k.a. C8) is a relatively large Schmidt-Cassegrain telescope (SCT) that was originally available only as a fork mounted telescope. In recent decades, it has also been available on German equatorial mounts and single arm computer controlled mounts. It is a 203.2mm aperture, f/10 telescope, so its focal length is 2032mm.
The C8 is manageable for most people to transport and set up for photography, but as with the original C5, vintage versions cannot easily be separated from the fork mount while out in the field. The C8 is used whenever the most reach (focal length) is needed, provided that atmospheric turbulence is low enough to get sharp image.
Ultra Wide (on APS format) Lenses
Moderately Wide Lenses (on APS)
- Blooming around highlights or strongly backlit subjects at wide apertures.
- Field curvature and coma requires using f/2.8 or slower for landscapes, f/4 for astro.
- Focus mechanism has slight wobble and longitudinal play that can slightly defocus image.
- Infinity stop was not even close to being calibrated (but I fixed it).
- Filter threads are too shallow for a filter to fully seat (bottoms out on lens spanner); and,
- Rear element cell is larger than standard (won't fit Fujifilm brand X mount adapters!)
-- Specifically, the protruding rear cell of the 7Artisans 28mm f/1.4 lens is 30.43mm across.
-- But the center hole in Fujifilm brand Leica M to Fuji X adapters is only 30.0mm across.
-- And protruding rear cells on other Leica M lenses do not exceed 29.1 to 29.5mm across.
Normal Lenses (on APS format)
Short Tele (on APS format) and Macro Lenses
Telephoto and Long Lenses
Telescopes
(See Chapter 9: "Everyday Pictures with Fujifilm X Cameras")
(Also see Chapter 10: "Astrophotography with Fujifilm X Cameras")
This section covers features it would be nice to see added (or restored) to certain models of Fujifilm X cameras, as well as lenses and accessories that could benefit users of the Fujifilm X system. These will be listed below.
Recommended New (or restored) Fujifilm X Camera Features:
- Include 4 assignable buttons around the Menu button (as on X-T20) on any new X-Tx0 model.
- Retain the focus mode switch on all interchangeable lens camera models.
- Make the microphone jack 3.5mm, and make it a separate jack from the remote jack.
- Include a 3.5mm headphone jack so sound can be monitored (on at least some models).
- Move (or angle) side jacks slightly forward so they will not interfere with a flip screen.
- Implement a removable jack door like that on the Fuji X-T3 on newer X-T camera models.
- Implement a flip-out screen on at least some X-Tx0 cameras that can be used for vlogging.
- Add 0.5mm between bottom of X-Tx0 screen and camera base, so screen won't catch on large tripod heads.
- Allow users to temporarily disable IBIS in the X-T4 and X-T5 (via firmware update) while still using lens stabilization, to reduce "jumping" when tracking birds, etc, with the 100-400mm and other long FL lenses.
- User selectable architecture that incorporates the profile of a lens into the lens firmware, and a camera architecture that lets a camera user, on a lens by lens basis, to select whether to allow a lens profile that is stored in a lens to have priority over the lens profiles stored in the camera. This will help prevent incompatibility between new lenses and older cameras. A case where this is necessary is where the Fuji 100-400mm lens AF is sluggish on the Fuji X-T10 camera. The X-T10 sensor has a unique and relatively subtle type of color artifact that, in many situations, makes it superior to newer Fuji cameras when bright highlights are in a picture. As noted in Chapter 3, some characteristics of the X-T10 are particularly advantageous for total solar eclipse photography.
A Full Frame Fuji X Camera? It May be Possible with the Same Lens Mount!
A great deal of the camera market is moving to full frame, and some full frame cameras have an APS crop mode. Therefore, I briefly evaluated the Fuji X mount to see if it would be compatible with a full frame sensor and full frame lenses. Surprisingly, the answer is that, from a technical standpoint, this might just barely be workable. So at least theoretically, Fujifilm could join the full frame club, while retaining the same Fuji X lens mount - and backward compatibility (in APS mode) with existing Fuji X lenses!
The inner diameter of the Fujifilm X lens mount is similar to that of the old Leica M39 rangefinder lens mount and the Minolta MD mount of full frame film cameras such as the Minolta SRT-101 SLR. This means that the Fuji X mount may just barely be compatible with a full frame format, but that slight vignetting of the extreme corners may result if such a camera is used on a simple long focal length refracting lens or certain telescopes.
The greatest challenge for a full frame camera that uses the Fuji X mount relates to the electrical contacts on the back of each lens. These lens contacts fall just barely outside of the full frame footprint. This means that there is very limited space for the sloped area on the lens electrical contact sector that gently pushes in the spring loaded contact pins of a Fuji X camera while a lens is being mounted. However, this can still be made to work if the screws that attach the ends of the contact sector to the lens are not at the ends of the sector. Instead, the contact sector could be attached to the lens with screws that pass through the side of the lens mount.
A full frame Fuji X camera may need to have an opening inside the front that (toward the bottom corners of the lens mount) is about the same size as the short dimension of a full frame sensor. The camera contacts would be just ourside this opening. The full frame format would probably be more practical in the Fuji X mount if the camera does not require a mechanical shutter.
One drawback of full frame with the Fuji X lens mount is that, if the rear element of a fast f/ratio lens is close to (or even slightly behind) the lens mount, the lower edge of the lens element may have to be shaped (basically, cut off) in order to clear the lens contacts. This may be more common with a full frame lens, since the rear element of a full frame lens usually has to be larger than is the case for APS format lenses. Shaped rear elements are not unprecedented, since some Fuji X lenses (18-55mm f/2.8-4 lens, for example), and the vintage 55mm f/1.2 Nikkor lens, have shaped rear elements.
On the subject of using an existing lens mount for a larger format, Micro 4/3 could benefit from the same concept. In particular, some cameras with the MFT mount could incorporate an APS format image sensor. Then, these cameras could have a "MFT Mode" that uses only the area of the Micro 4/3 format on the APS sensor, for backward compatibility with existing MFT lenses. If such a system was pursued by the Micro 4/3 consortium, and a small physical size is emphasized for at least some of the cameras and lenses (and if some cameras have shutter speed dials and some lenses have aperture rings), it could prove to be a viable alternative to the APS format Fuji system.
Recommended New (or restored) Fujifilm X Lens Features:
(The most important recommendations are underlined.)
- User Selectable Focus Speed. Enable user selectable dual speed (or variable speed) manual focus, so the lens will focus faster when the focus ring is turned fast, and focus slower when the ring is turned slowly.
- Smaller size for back end of larger lenses. Constrain the rearward 35mm of all Fuji X mount lenses (with the exception of lenses having a tripod mount) to a diameter not exceeding 64.5mm. This prevents mechanical interference when lenses are used with Fuji X-Tx0 cameras on large tripod heads.
- Include marked aperture rings on all Fuji Zooms, including on variable aperture zooms. The nomenclature for a variable aperure zoom can be implemented in the same way that Tokina implemented it on their 50-250mm f/4.5-5.6 zoom in the early 1980's. Specifically, the widest focal length on the zoom lens is marked in yellow numerals, and the longest focal length is marked in pink numerals. Then two colored index marks are used for the aperture settings. One is yellow and the other is pink. The yellow index mark is used to set and indicate the f-stop at the wide end of the zoom range, and the pink one is for the long end of the zoom range. This does not require any overtravel on the f-stop ring. For example, when the f-stop ring is set to "wide open," it will simultaneously display the aperture for the widest zoom setting via the yellow index mark, and the aperture at the long end via the pink park. The same goes for any other aperture setting throughout the f-stop range. This provides an easy way to set and see the f/stop setting on a variable aperture zoom.
- Include a zoom lock (or at least detent) switch that works at multiple focal lengths on Fuji zoom lenses. This selectable lock or detent should work throughout the zoom range, even if only a dozen or so lock settings can be selected in the zoom range. This additional zoom lock is to keep the lens from creeping to a longer focal length when the lens is pointed down, and to keep a lens from creeping to a shorter focal length when it is pointed up. This is VERY important for lenses such as the Fuji 100-400mm zoom, because the lens FOCUS changes when the zoom setting is changed. This focus change vs zoom setting currently disqualifies the lens for many applications (including astrophotography and total solar eclipse photography), unless a difficult to use zoom lock band is added. A zoom lock (or selectable detent) for multiple focal lengths throughout the zoom range will fix this problem.
Recommended New Lenses for Fujifilm X (Fujifilm or third party brands):
(The most important recommendations are underlined.)
- NOTE: Most of the suggested lenses are wide angle, plus a compact high speed 40-43mm lens, and a compact lens of at least 400mm focal length, seem to be what is most sorely missing in the Fuji X system.
- Compact 185 Degree (or wider) Circular Fisheye Lens: Implement a version of the compact 185 degree Fujinon Megapixel Fisheye lens that provides an image circle between 11.8mm and 14.3mm, and that includes adjustable aperture. The corresponding focal lengths and f-stops would be 3.7mm f/2.5 to 4.5mm f/3. Mount could be C-Mount or Fuji X. (These Fujinon lenses are currently availale as 1.4mm f/1.4, 1.8mm f/1.4, and 2.7mm f/1.8, all C-mount. I currently use the 2.7mm, but its image circle is small for the APS format.) It is best if the back focus is at least 0.5mm longer than that of the existing 2.7mm, for more clearance from Fuji X shutters. I have successfully used used the 2.7mm f/1.8 on Micro 4/3 for years (often at f/4 for better sharpness), but a bigger image circle is desirable for both Micro 4/3 and Fuji X. (I first proposed that Fujinon make a 3.7mm f/2.5 in 9/2015.) Since then, introduction of the 7Artisans 4mm f/2.8 lens has reduced the need to use the an offshoot of the Fujinon lens on Fuji X cameras.
- Equidistant or Stereographic Fisheye Lens with 22.5mm image circle: Make a compact Equidistant or Stereographic projection fisheye lens with a field of view of at least 185 degrees and an image circle of about 22.5mm, with an f/ratio of f/2.4 or faster that has almost no aperture clipping or coma at f/2.4. Applications for this include 360 degree stitched VR imaging and astrophotography. If the lens is autofocus, it MUST have an MF switch. If the lens has image stabilization (IS), it should also have a switch to lock out IS so that images captured on a VR head will be properly registered. (For now, adapting the MFT format Samyang 7.5mm f/3.5 lens to Fuji X is the closest available solution I have tried.)
- Compact Full Frame (on APS) 184+ Degree Stereographic Projection Fisheye Lens: It is best if the f/ratio is f/2.4 or faster, with almost no aperture clipping or coma wide open. Applications include astrophotography and other low light wide angle imaging. If the lens is auto focus, it MUST have an AF/MF switch, to eliminate risk of it hunting for focus at critical times in dim light when used with a camera that has no focus mode switch. If the lens has image stabilization (IS), it should also have a switch to lock out IS so that long exposure tracked images or sequences of astronomical objects or events will be properly registered and will not be streaked. (For now, the Samyang 8mm f/2.8 fisheye lens has been adequate, and its projection is at least close to being stereographic.)
- Compact 6.5 to 7.2mm f/4 (or faster) Rectilinear Wide Angle Lens: This lens would provide a field of view similar to that of the Voigtlander 10mm f/5.6 full frame lens. It is a useful focal length for architectural photography. It is wider than necessary for some types of photography, but for narrower fields of view, the lens can be used as the APS equivalent of a 9-10mm shift lens by using the camera in a portait orientation, then cropping the image to emphasize the area of interest. I have used this technique for decades, starting with film cameras, and it is effective. When I have converted fisheye lens photos to rectilinear images, the best composition seems to often be the equivalent of an 11mm lens on full frame, which would be equivalent to about 7.2mm on APS format. (The Fujinon 8mm f/3.5 rectilinear lens is the closest avaiable lens, but it is not quite wide enough for some applications.)
- Compact 13mm to 14mm f/1.8 (or faster) Lens with Close Focus Capability: Viltrox currently makes a 13mm f/1.4 lens that may work, though it is fairly large. The purpose is to provide an APS equivalent for the 21mm f/1.4 lenses that are popular on full frame cameras.
- 18mm f/2 Pancake Lens that is Sharper than Existing 18mm f/2 Lens. This lens should have a physical size that is no larger than the current 18mm f/2. Weather sealing and internal focus would be nice, but not required.
- 23mm f/2 (or faster) Pancake Lens. This lens should be no larger than the current Fuji 18mm f/2 lens. Weather sealing and internal focus would be nice, but not required.
- Compact 40mm to 43mm f/1.2 to f/1.4 Auto Focus Lens: This lens should have good resolution and bokeh wide open, with no aperture clipping or visible coma at f/2 and slower. It should also have an odd but reasonably large number (9, 11, 13, etc.) of curved aperture blades to provide round "bokeh balls", at least between full aperture and f/2.4. It would ideally focus down to a 1:3.5 reproduction ratio. The lens should also have an outer diameter of not more than 64.5mm, and include switches for both manual focus and image stabilization (if it has stabilization). Ideally, the filter size would be the same 52mm size of some other smaller Fujifilm lenses. Comment: Performance that is similar to the new Fuji 33mm f/1.4 lens (only with less vignetting) would be preferred. The manual focus Voigtlander 40mm f/1.4 Nokton Classic lens is what I use now, but it is not AF, it does not focus close, it has straight aperture blades, and its images and bokeh are not very good at apertures wider than f/2.4. The Voigtlander 40mm f/1.2 MF lens is better, but its contrast is low wide open, it is large, it is not auto focus, and it also has straight aperture blades. The 40mm f/1.2 also subject to "onion rings" in its bokeh. Of all of the lenses proposed in this section, a high performance but reasonably compact 40 to 43mm f/1.4 AF lens for Fujifilm X cameras is one of the most important.
- Reasonably Compact 30-33mm (or 40mm) to 240mm Zoom Lens: This lens would encompas the APS equivalent of the most useful film camera zoom I ever used: Namely, the Tokina 50-250mm f/4-5.6 zoom, which began to be produced in the early 1980's. The difference would be that the proposed APS format lens would zoom out to a full frame equivalent of 360mm. The existing Fuji 50-230mm lens comes close, except that it is not wide enough at the short end. I use an equivalent focal length of 60-70mm (40mm to 46mm on APS) very often when it is available. A wide end equivalent to 47mm or wider (31mm on APS) would be even more useful.
- Version of Fujinon 50-230mm f/4.5-6.7 zoom that has a marked aperture ring: Ideally, this lens would not be any larger than the current version, including that it retains its current smaller diameter toward the back end of the barrel.
- 70 or 100mm to 400mm Zoom that is f/6.3 at 400mm: This lens could potentially be based on the optical design of the existing Fuji 100-400mm lens, or be a new design. The f/6.3 aperture at 400mm could make the lens a few millimeters shorter, and more than 20 percent lighter than the current Fuji 100-400mm f/4.5-5.6 lens. It could also use smaller 67 or 72mm filters. In real world use, the main issues with the existing Fuji 100-400mm lens are its size (210 x 95mm) and weight (1350g). A 100-400mm lens could be noticebly smaller and lighter if the maximum aperture at 400mm is f/6.3 (only 1/3 of an f/stop slower than f/5.6). If there is a later version of the 100-400mm lens, a slightly slower f/stop at 400mm would help with portability (and maybe even cost), while still maintaining almost as much capability. A long end of up to 465mm would be useful (even at an f/stop as slow as f/7.2), as long as the physical length of the lens is not longer when the lens is stowed.
- Compact Collapsible 450mm f/6.7 or Slower Refracting Telephoto Lens that uses 72mm or smaller filters. If practical, this lens could use at least one Fresnel element, along the lines of the collapsible Canon RF 600mm f/11 lens. Ideally, the physical size of this lens (when collapsed) would be similar to that of the 50-230mm f/4.5-6.7 zoom lens.
- 450 to 640mm f/6.3 to f/8 Combined Mirror Lens and Telescope with Flip Mirror/Prism: This lens would consist of a mirror lens that is designed to have a long enough back focus to accommodate a low profile flip mirror between the back of the lens and the front of a Fuji X (or other) mirrorless camera. The lens baffles would be designed to utilize all of the lens aperture for the central image, and the primary baffle tube and rear correcting lenses would be large enough to minimize vignetting. Performance would be good enough for both astrophotography and useful planetary observation at magnifications up to at least 160x. The mechanical eyepiece barrels could be like or similar to standard 24.5mm (0.965") telescope eyepieces, but some of the longer focal length (lower power) eyepieces would use optics like or similar to vintage Meade RG wide field or various brand Konig eyepieces. The eypeiece holder should be parfocal with the camera, so the same focus setting can be used for both photo and visual. An eyepiece turret would be useful, though the eyepieces may project a bit too far from the sides if they are parfocal with the camera. (This could mechanically interfere with cameras having laerger grips.) It is worth noting that the best samples I have seen of vintage Tamron 500mm f/8 mirror lens and the original version of the 500mm f/8 Reflex Nikkor lens may be adequate for this, and the Nikkor even has enough back focus. A good set of magnifications would include 20 to 32x, 50 to 67x, 100x, and 160x. For a 600mm lens, eyepiece focal lengths could include: 20mm wide apparent field (30x), 12mm (50x), 6mm (100x), and 4mm (150x).
- Version of Fujinon 500mm f/5.6 Lens with Interchangeable Lens Mount: The main purpose of the interchangeable mount would be to make it possible to use the SAME Fujinon 500mm f/5.6 lens on both the Fujifilm X and the Fujifilm GFX camera systems. This would reduce the total system size and weight for those who use both Fuji X and Fuji GFX cameras, and could also be implemented on certain future telephoto lenses. This would also make it more practical for some Fuji X users to gradually add medium format capability to their kit. The mount adapters could have some similarity to vintage Tamron Adaptall mounts, but would be larger and include appropriate electrical contacts. Comments: If practical, an alternative might be a GFX to FX adapter. Since the back focus (lens flange to focal plane) distance on the GFX (26.7mm) is 9mm longer than that of Fuji X cameras (17.7mm) such an adapter might just barely be possible. However, implementing spring loaded electrical contacts for a GFX lens in such a thin adapter could be challenging. In addition, only about 8mm is really available for larger diameter (76.5mm) parts of the adapter, so it can clear the lens release button on a Fuji X camera. These limitations mean that a GFX to FX adapter may not be practical. Therefore, it may make more sense to implement an interchangeable lens mount that has at least 39mm of back focus. This would allow the GFX adapter to be at least 12.3mm thick, and for the FX adapter to be even thicker. Ideally, the diameter of such an interchangeable mount would be large enough to be compatible with optics that can fully illuminate an image sensor that is at least 53.3mm square (75.4mm diagonal), in order to be compatible with a future format and sensor large enough to truly be "medum format". In the future, such an adapter mount would also (ideally) have standardized interfaces and protocols that are compatible across multiple camera and lens brands.
Recommended New Accessories for Fujifilm X:
(The most important recommendations are underlined.)
- Leica M Lens to FX Adapters with Flash Memory to "Remember" Focal Length, Profile, Etc: This would be the same as the existing Fujifilm brand Leica M to Funi X adapter, except that the lens adapter would have built-in flash memory to "remember" the lens focal length and profile (distortion, vignetting, and LCA correction, etc), and the lens adapter will also communicate this to the camera when the lens is attached. With this feature, a separate adapter can be paired with each Leica M (or other) lens, rather than having to use the adapter's menu button each time. The adapter should still have the menu button, both to maintain the standard adapter features, and to simplify initial setup.
- Low profile lens hoods: These could be similar to the hoods I have made for the Fuji 18mm f/2, the Rokinon 12mm f/2, and adapted to the Fuji 50-230mm lens. (These are described in the lens reviews above.)
- Double Ended Rear Lens Caps: The two ended rear caps I have were made by Op-Tech, but these have been discontinued. The Op-Tech caps had some defects that required correction, in that they had an inside diameter that was slightly smaller than the outer diameter of the Fuji lens bayonet mount claws. They also had bumps on the outside that interfered with the rubber weather resistant seal on the back of some Fujinon lenses. This made the rear caps unuseable out of the box, but the problem was fixed by using a cutter, file, or moto-tool to remove the ends of the outer bumps and increase the cap's inside diameter ever so slightly. I also painnted brightly colored lens index marks on the caps. Double rear caps make it possible to reduce the size of a camera system bag without having to dig through lenses that are loosely stacked on top of each other. This is something that Leica figured out over 60 years ago.
- Compact Low Profile Tripod Mount for Fuji 100-400mm Zoom Lens. This mount should incorporate a strap lug or slot at the back end. (Similar to the tripod mount I designed and prototyped. A description of it is in the lens review section.)
- Case for 100-400mm Lens that Accommodares Lens with Caps and a Filter: It is best if the case has less than 9.8" outside length. This requires that ends be thin but strong. (I modified a round Tokina case of this size [113x248mm] to work for now, but a square case with rounded corners would be more compact.)
- Telescope Converter for Fujifilm Lenses that are Compatible with Tele-converters: This telescope converter may have to be powered in order to enable focus adjustment of the digital camera lens. A lens group of negative optical power would have to be at the very front of the converter in order to provide enough back focus. This would increase the focal length between 1.4 and 2 times. A powered telescope converter could also enable stabilization, but should include a switch to enable or disable stabilization on stabilized lenses lacking a switch. (The telescope converter could also enable selectable AF if it has an appropriate sensor, but this is getting more complicated.) At least two versions could be offered. One would incorporate or accept an eyepiece in the straight through or 45 degree position, and the other would accept an eyepiece in a right angle position. The eyepiece could be fixed or interchangeable. An eyepiece turret may be the best option because it maintains a dust seal, and because a low magnification eyepiece can be used instead of a finder scope, then a high magnification eyepiece can be selected. Eyepiece focal lengths and magnifications for the 100-400mm lens (assuming the telescope converter magnifies 2 times) could include the following:
-- A 24mm wide field eyepiece for magnifications of 8 to 33x (for wide field).
-- A 16mm eyepiece to provide magnifications of 12.5 to 50x (birding and lunar).
-- An 8mm eyepiece to provide magnifications of 25 to 100x, (birding and lunar).
-- A 4mm or 5mm eyepiece to provide magnifications of 50 to 200x or 40 to 160x (moon, planets, etc.)
- The telescope converter concept may be a better fit for the newer Fujinon 500mm f/5.6 lens.
-- And, if the proposed interchangeable mount for the 500mm lens is implemented, this would provide more back focus to accommodate a telescope adapter, or even something more versatile. (For example, I developed a commercial camera lens telescope adapter that incorporated a flip mirror (so the camera did not have to be removed when using the telescope eyepiece) for ED Nikkor and other lenses in 1995. It is called the "VersaScope" (TM) Adapter. Details are in my 1995 total solar eclipse web page at www.eclipsechaser.com , and in an archived 1997 Versacorp product page at www.versacorp.com .)
The rest of this section is in work.
14. References and Useful Resources
1.) Leica M9 (and M Lens) Reviews, Tests and Comparisons.
http://www.versacorp.com/vlink/jcreview/leicam9r.htm (full review) AND:
Appendix K: Leica Optics and Images Compared to 4x5" Film, etc., Images
http://www.versacorp.com/vlink/jcreview/leicam9r.htm#appk (referenced chapter)
2.) Total Solar Eclipse of 21 August, 2017.
http://www.eclipsechaser.com/eclink/image/total17.htm (full web page) AND:
Chapter on Camera Testing that shows difference between Bayer and X-Trans sensors:
Appendix B: Camera, Lens, and Solar Filter Testing for the 2017 Eclipse
http://www.eclipsechaser.com/eclink/image/total17.htm#test (camera tests)
3.) Review of Samyang 8 mm f/3.5 Proportional Projection Ultra-wide Angle Lens.
http://www.versacorp.com/vlink/jcreview/sy8rv9jc.pdf (J. R. Charles, 2009)
4.) Film, Abstract: DANDELION va (about breathing and Coronavirus by some interpretations)
(By Antonio Maria Da Silva AMDSFILMS et al) Run time: 5:22
https://www.youtube.com/watch?v=wMfEkmtyqmY (2020, June 18)
In an abstract way, this film sort of shows what it's like to be preoccupied with breathing while extremely sick with COVID (etc.), but without showing the pain. In my case, I did not see flying whales or other animals, but I did have to decide to get out of the "here" that fog of extreme illness put me in, as symbolized by the film's character saying "I must breathe... I can breathe for real..."
5.) Camera and Lens Reviews, Text (search for item and reviewer name to find reviews)
- Dustin Abbott (some reviews are also on video)
- Imaging Resource (consistent tests, and started 20 years ago).
- Philip Reeve
- Remainder of this category TBD.
6.) Camera and Lens Reviews, Video (search for item and reviewer name to find videos)
- Christopher Frost (Excellent lens review videos that use consistent test criteria.)
- Camera Conspiracies (YouTube channel. Good real world results, but swears a lot.)
- Kai Wong (Kai W, Bokeh Bros; formerly at Digital Rev. Mostly for entertainment.)
- Pal2Tech (useful tips more than reviews)
- Remainder of this category TBD.
